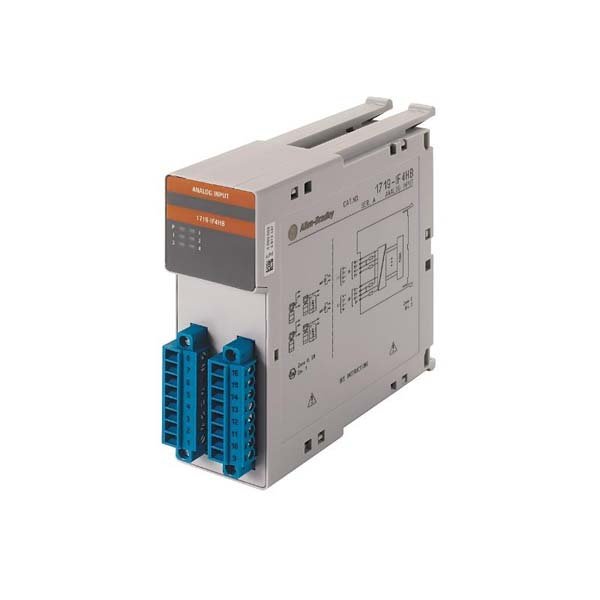

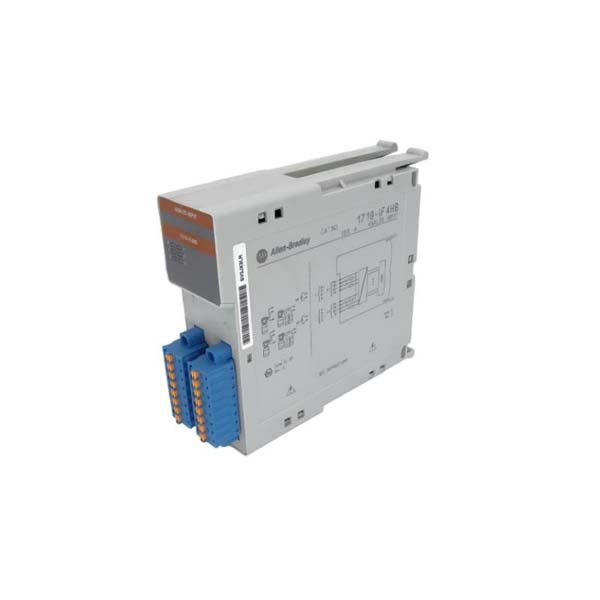

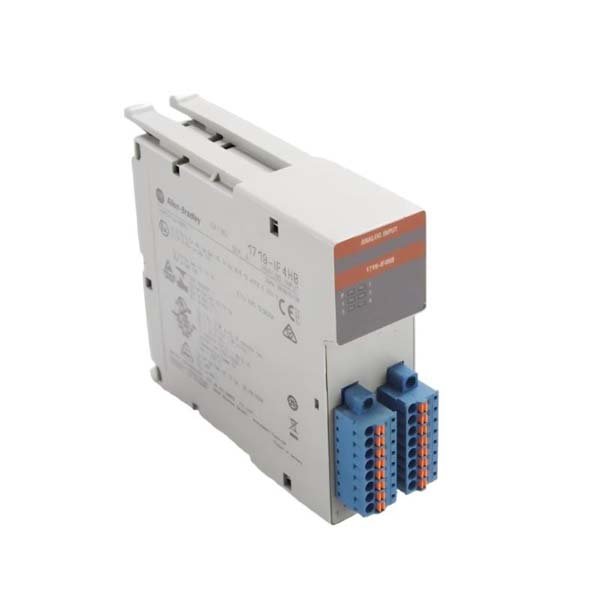

Allen-Bradley 1719-IF4HB Analog Input Module

Designed for hazardous and industrial process environments, the Allen-Bradley 1719-IF4HB Analog Input Module provides reliable signal acquisition for process control applications requiring intrinsic safety and precision. This module is part of the Allen-Bradley 1719 Ex I/O system, engineered to meet Zone 2 and Class I, Div 2 requirements, enabling it to operate safely in areas with potentially explosive atmospheres. Built with high accuracy and strong noise immunity, it is ideal for integrating analog field devices in distributed control architectures.

Detailed Technical Specifications

Application Context

The 1719-IF4HB is purpose-built for industrial process control, particularly in hazardous areas such as oil refineries, chemical plants, or pharmaceutical production. Common implementation scenarios include:

• Monitoring pressure, flow, or temperature transmitters in Zone 2 environments.

• Analog signal acquisition from intrinsically safe field sensors.

• Distributed I/O solutions where safe separation and data reliability are critical.

• Integration into DCS or PLC systems requiring high-precision analog inputs.

• Field data collection in Ex-rated skids and modular process units.

Advantages in Engineering Design

• Intrinsic Safety Certified: Designed for Ex Zone 2 and Class I, Div 2 use, ensuring compliance and safety.

• High Accuracy and Resolution: Provides stable, precise measurements essential for process optimization.

• Flexible Signal Support: Handles both voltage and current inputs for versatility in instrumentation.

• Compact Footprint: Saves control cabinet space, allowing dense installation.

• Galvanic Isolation: Protects both field and system devices from electrical interference.

• Integrated Diagnostics: On-module status LEDs simplify field troubleshooting.

• Low Power Consumption: Efficient design reduces heat and energy load.

• Seamless Integration: Compatible with 1719 Ex I/O architecture and Rockwell Automation systems.

• Wide Environmental Range: Operates reliably under industrial temperature and humidity extremes.

• Simplified Commissioning: Automatic channel detection and configurable input modes reduce setup time.

FAQs

1. Q: Can the 1719-IF4HB measure both current and voltage signals simultaneously?

   A: Yes, each channel can be independently configured for either current or voltage input.

2. Q: What type of isolation does the module provide?

   A: It offers galvanic isolation between channels and the system backplane to ensure measurement accuracy.

3. Q: Is the module suitable for hazardous area installations?

   A: Yes, it’s certified for Zone 2 and Class I, Div 2 environments with intrinsic safety features.

4. Q: How is the module powered?

   A: Power is supplied directly through the 1719 system backplane (24 VDC nominal).

5. Q: What communication interface does it use?

   A: It connects through the 1719 backplane to a 1719 communication adapter, such as Ethernet/IP or PROFIBUS.

6. Q: What diagnostic features are available?

   A: The module includes LED indicators for channel and system status, as well as internal diagnostic registers.

7. Q: Can this module handle high-speed analog signals?

   A: Yes, with a 1 kHz per-channel sampling rate, it supports most process control applications.

8. Q: How does it ensure measurement stability in noisy environments?

   A: The module provides galvanic isolation and built-in filtering to minimize signal interference.

9. Q: Can the 1719-IF4HB be used outside hazardous areas?

   A: Yes, it performs equally well in standard industrial environments.

10. Q: What software is used for configuration?

    A: Configuration is managed via Studio 5000 or RSLogix 5000 with appropriate EDS files.
