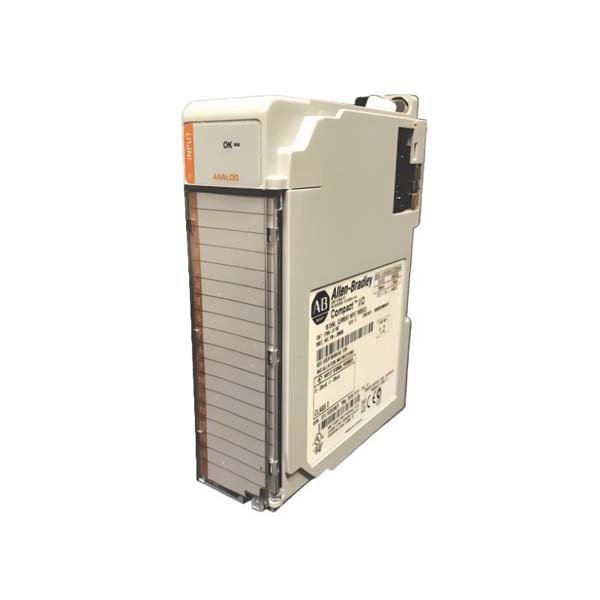

Allen-Bradley 1769-IF16C Compact I/O Analog Current Input Module

The Allen-Bradley 1769-IF16C is a 16-channel analog current input module from the Compact I/O family, designed for precise measurement and monitoring of analog signals in industrial automation systems. It supports current input ranges of ±20 mA and 4–20 mA, providing high accuracy and flexibility for process control, monitoring, and data acquisition applications.

With its compact design, the 1769-IF16C integrates seamlessly with CompactLogix and MicroLogix 1500 controllers, making it an ideal solution for both standalone and distributed I/O systems. Its high signal resolution, built-in signal scaling, and advanced diagnostics make it a reliable choice for demanding industrial environments requiring accurate current signal measurement.

Technical Specifications

Applications

The 1769-IF16C is widely used in systems that require multiple current signal inputs with high accuracy and reliability:

• Process Automation: Ideal for monitoring flow, pressure, and level transmitters.

• Manufacturing Equipment: Used in machine control systems for analog feedback signals.

• Water & Wastewater Plants: Monitors flow meters, pumps, and sensor data.

• Energy Management: Integrates current loops from measurement instruments.

• HVAC Systems: Collects analog control data for temperature and pressure regulation.

• OEM Control Panels: Compact design allows integration in custom machinery.

Advantages

• High Channel Density: 16 channels in a compact module saves panel space.

• Flexible Input Ranges: Supports ±20 mA and 4–20 mA for process and monitoring tasks.

• High Accuracy and Resolution: Provides precise current measurements for critical control applications.

• Fast Update Rate: Quick signal conversion for real-time control.

• Robust Isolation: Electrical isolation enhances system safety and noise immunity.

• Compact and Modular: Fits seamlessly into 1769 Compact I/O chassis.

• Low Power Consumption: Efficient design minimizes heat and energy usage.

• Easy Integration: Compatible with CompactLogix and MicroLogix systems.

• Reliable Diagnostics: Detects open-circuit and configuration errors.

• Durable Construction: Built to withstand industrial shock and vibration.

FAQs

1. Q: What type of input signals does the 1769-IF16C support?

   A: It supports analog current inputs of ±20 mA and 4–20 mA.

2. Q: How many channels are available on this module?

   A: The module offers 16 single-ended input channels.

3. Q: What is the input resolution?

   A: The resolution is 15 bits plus sign.

4. Q: Can it be used with CompactLogix controllers?

   A: Yes, it integrates seamlessly with CompactLogix and MicroLogix 1500 systems.

5. Q: What is the module’s isolation voltage?

   A: 750V DC between input channels and system ground.

6. Q: What is the power dissipation of the module?

   A: Typical power dissipation is around 3.5 W.

7. Q: What is the accuracy rating?

   A: ±0.15% of full-scale input.

8. Q: Does the module detect open-circuit inputs?

   A: Yes, it includes diagnostic detection for open or faulty inputs.

9. Q: What kind of data format does it use?

   A: Two’s complement integer format for compatibility with Logix processors.

10. Q: What is the maximum operating temperature?

    A: The module operates reliably up to +60°C (140°F).
