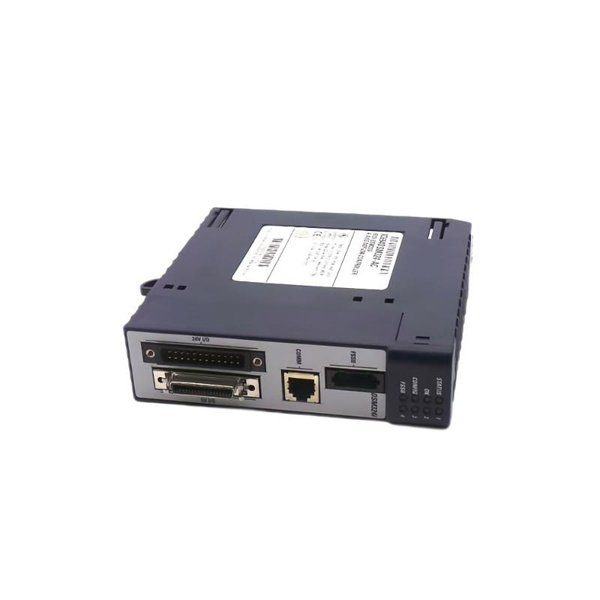

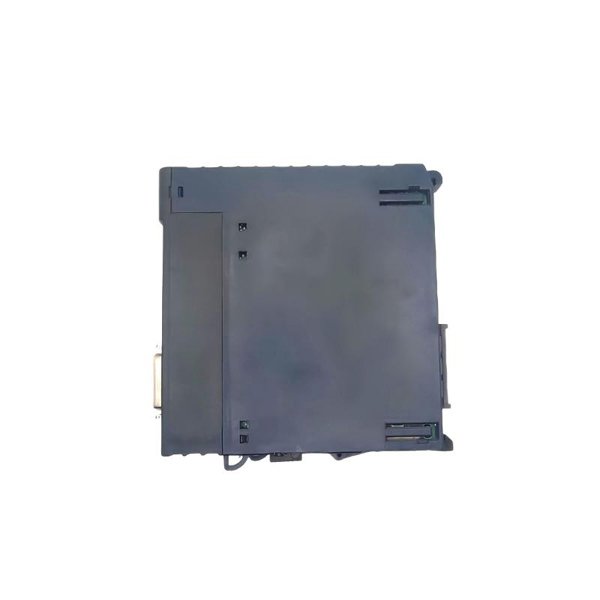

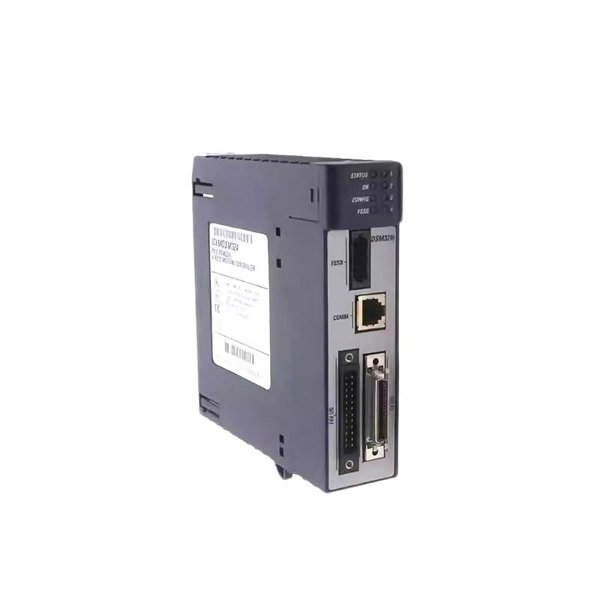

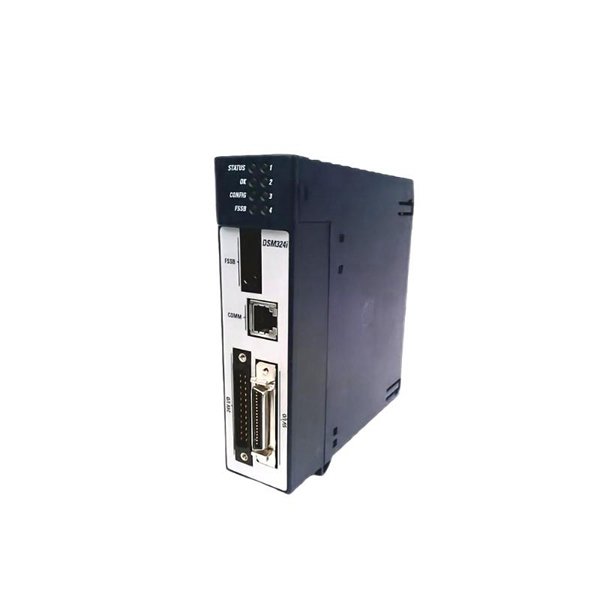

General Electric IC694DSM324 Motion Controller Module

The GE IC694DSM324 is a sophisticated Motion Controller Module engineered for the RX3i automation platform. This module is designed to provide precise motion control capabilities within a wide range of industrial automation systems. It allows machine builders and automation engineers to integrate complex multi-axis motion control directly into the RX3i system, reducing the need for external dedicated motion controllers.

The IC694DSM324 supports various motion profiles such as position, velocity, and torque control, making it suitable for applications where accuracy and repeatability are critical. Its advanced architecture allows synchronization of multiple axes and supports both stepper and servo motor control. The module interfaces seamlessly with other RX3i modules and shares the same backplane communication for reliable, high-speed data transfer.

Its robust build quality ensures durability in demanding industrial environments, while its integration with GE’s programming environment simplifies configuration, diagnostics, and maintenance. This motion controller is ideal for applications where both automation and precise mechanical control are required.

Product Specifications

Product Applications

• Automated Assembly Lines: Enables precise positioning of robotic arms, conveyors, and assembly tools for improved throughput and accuracy.

• CNC Machines: Controls multi-axis movements for milling, drilling, and cutting applications with high precision.

• Packaging Machinery: Facilitates synchronization of multiple axes for filling, sealing, and labeling processes.

• Textile Industry: Controls weaving and knitting machines that require complex motion patterns.

• Printing Equipment: Manages the precise movement of print heads and media handling components.

• Material Handling Systems: Coordinates motion of lifts, conveyors, and sorters for smooth and efficient material flow.

Product Advantages

• Multi-Axis Control: Supports up to 4 axes, enabling complex machine operations without extra hardware.

• Versatile Motor Compatibility: Works with both servo and stepper motors for flexible application use.

• High Precision: Supports advanced motion profiles including position, velocity, and torque control.

• Integrated Feedback Handling: Compatible with encoders and resolvers for accurate position feedback.

• Seamless Integration: Directly mounts into RX3i chassis for compact system design and easy wiring.

• Reliable Backplane Communication: Ensures fast, deterministic data exchange with the CPU and other modules.

• Industrial Grade Durability: Designed to operate reliably under harsh temperature and humidity conditions.

• Simplified Configuration: Compatible with GE’s programming tools for easier setup, tuning, and diagnostics.

• Reduced System Complexity: Eliminates need for external motion controllers, saving space and cost.

• Comprehensive Diagnostics: Onboard status indicators and software diagnostics help minimize downtime.

Frequently Asked Questions (FAQ)

1. How many motion axes can the IC694DSM324 control simultaneously?

   It supports control of up to 4 independent motion axes.

2. Is the module compatible with both servo and stepper motors?

   Yes, it supports both types of motors for flexible use.

3. What motion control profiles does this module offer?

   It supports position, velocity, and torque control profiles.

4. Can the IC694DSM324 be used with encoders and resolvers?

   Yes, it supports feedback from both encoders and resolvers.

5. Does it require an external power supply?

   No, the module receives power directly from the RX3i rack.

6. What are the operating temperature and humidity ranges?

   Operating temperature is 0°C to 60°C; humidity tolerance is 5% to 95% non-condensing.

7. Which programming environment is used for configuring the motion controller?

   GE’s Proficy Machine Edition software is typically used.

8. Can this module be used in safety-critical applications?

   While robust, additional safety components may be required depending on application standards.

9. Is real-time synchronization between axes supported?

   Yes, it provides synchronized multi-axis control for coordinated motion.

10. What diagnostics features are available on this module?

    It includes LED status indicators and supports software diagnostics for troubleshooting.
