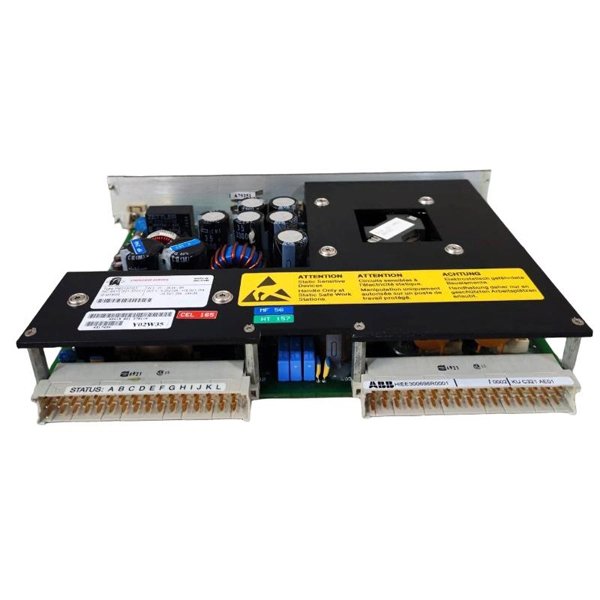

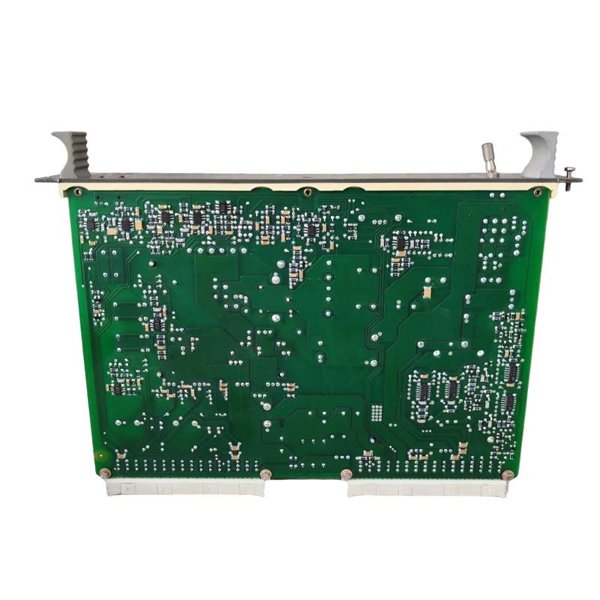

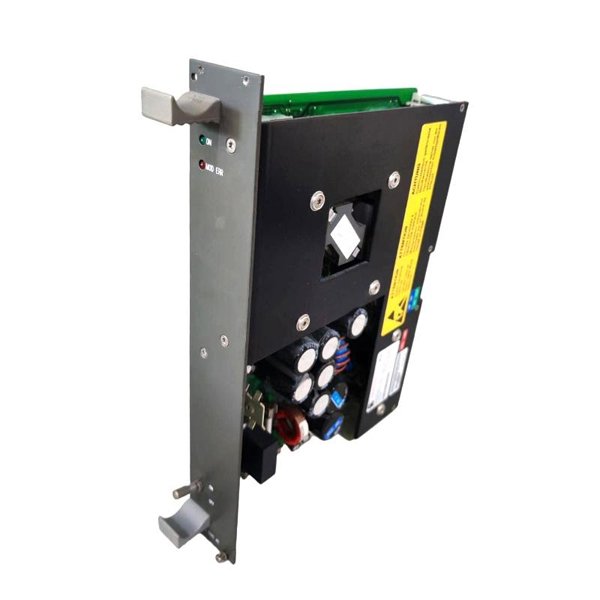

ABB KU C321 AE01 HIEE300698R0001 Power Supply Module

The ABB KU C321 AE01 HIEE300698R0001 is a precision-engineered power supply module designed for integration within ABB’s high-performance industrial automation and control systems. As part of ABB’s reliable Symphony and Advant DCS architectures, the KU C321 AE01 ensures the uninterrupted delivery of isolated, stable DC voltage to central control components including CPUs, analog/digital I/O modules, communication interfaces, and supervisory modules.

Built to exacting industrial standards, this module offers high electrical efficiency, robust protection circuits, and consistent power regulation under variable input conditions. It is rack-mounted and seamlessly integrated into ABB backplane systems, providing essential operational support for critical infrastructure in industries such as power generation, petrochemicals, steel, and water treatment.

The KU C321 AE01 is known for its longevity, resilience to voltage fluctuations, and adherence to international compliance requirements, making it a preferred choice for system integrators, engineers, and maintenance teams aiming to maintain operational continuity and system reliability.

Technical Specifications

Applications

The ABB KU C321 AE01 is purpose-built for high-demand industrial environments requiring uninterrupted and clean power delivery. It is widely adopted in the following sectors:

• Distributed Control Systems (DCS): Primary power module for ABB Symphony and Advant series systems.

• Thermal and Nuclear Power Plants: Powers instrumentation and protective relays in generator and turbine control rooms.

• Petrochemical Processing: Supports mission-critical process controllers, PLCs, and safety systems.

• Steel and Heavy Industries: Delivers regulated voltage to sensors, actuators, and drive control modules.

• Pharmaceutical and Food Plants: Maintains clean power for validated environments and automation logic controllers.

• Marine Systems: Supplies robust voltage to navigation and onboard automation systems in challenging sea conditions.

• Water/Wastewater Management: Ensures uninterrupted SCADA and RTU performance in treatment plants.

Product Advantages

• Wide Input Compatibility: Supports both AC and DC inputs across a broad voltage range, ensuring versatility.

• Precision Output Regulation: Stable 24 VDC with minimal ripple enhances downstream module performance.

• Integrated Protection: Includes built-in safeguards for electrical and thermal faults, improving equipment longevity.

• Fanless Operation: Natural convection reduces moving parts and enhances long-term reliability.

• Industrial Durability: Resistant to voltage spikes, shock, vibration, and environmental contaminants.

• Compact Footprint: Slim profile allows easy integration in dense rack environments.

• Seamless DCS Integration: Fully compatible with ABB’s legacy and current automation ecosystems.

• Low Maintenance Requirements: Reliable passive design reduces service frequency and extends service life.

• Electromagnetic Immunity: Compliant with industrial EMC standards for operational stability.

• Scalability: Modular design allows system expansion or easy field replacement without redesigning the cabinet.

Frequently Asked Questions

1. Is the KU C321 AE01 capable of supplying redundant power in dual-redundancy configurations?

   Yes, it supports redundancy when used with compatible modules and appropriate rack configurations.

2. What is the module’s response time during voltage transients or line disturbances?

   The response time is within microseconds, ensuring stable output under fluctuating input conditions.

3. Does the power supply support galvanic isolation between input and output?

   Yes, full galvanic isolation is implemented to protect downstream control circuits.

4. Can this module be used to supply sensitive analog input cards?

   Absolutely. Its low ripple and noise output make it suitable for powering precision analog modules.

5. How does the module handle overcurrent scenarios?

   The internal current-limiting circuit activates protection and safely shuts down the output to prevent damage.

6. Is the KU C321 AE01 hot-swappable in live control systems?

   No, hot-swapping is not supported; system power should be shut down before module replacement.

7. What internal diagnostics are available for fault detection?

   The module includes visual indicators and relay outputs for fault status signaling to system controllers.

8. Is this module suitable for use in SIL-rated safety instrumented systems?

   While not certified to a specific SIL level, it is often used in SIL-compliant environments as part of redundancy schemes.

9. Can this module operate reliably in harmonic-rich or noisy electrical environments?

   Yes, it includes EMI filters and robust input rectification stages to withstand such conditions.

10. What backplane or rack systems are compatible with the KU C321 AE01?

    It is compatible with ABB rack assemblies used in Symphony and Advant series DCS platforms.
