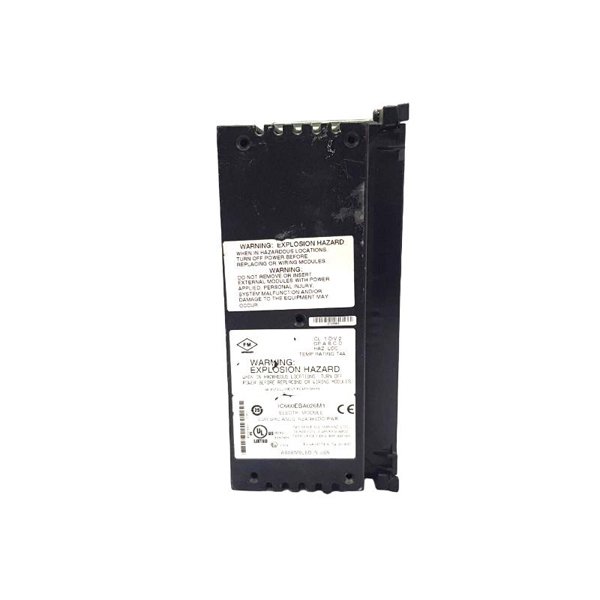

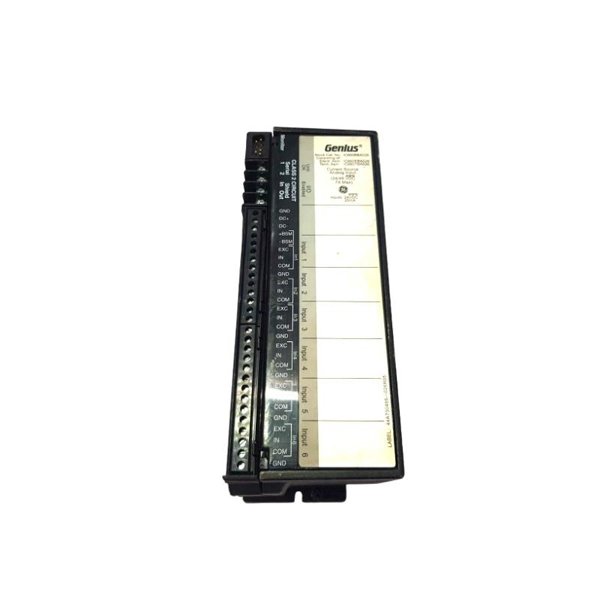

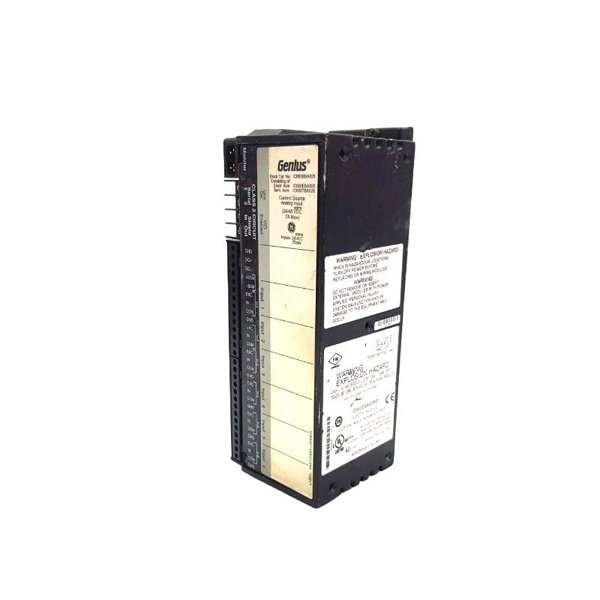

General Electric IC660EBA026 I/O Block Electronic Assembly

The GE IC660EBA026 I/O Block Electronic Assembly is a vital component of GE’s Genius I/O family, designed for use in robust industrial automation systems. As an electronics assembly for Genius discrete I/O blocks, the IC660EBA026 is specifically engineered for compatibility with 115V AC input/output terminals. This unit is part of a modular system where the electronics are separate from the terminal base, offering flexibility, ease of maintenance, and tailored application deployment.

With advanced diagnostics, configurable I/O points, and integration into distributed control architectures, this module is an ideal solution for applications that demand high-voltage signal processing, centralized intelligence, and reliable field device communication. It communicates over the Genius I/O bus, which is well-known for its deterministic real-time performance and noise immunity.

Product Specifications

Product Applications

• Industrial Machinery Control: Used to interface high-voltage discrete devices like motors, valves, and solenoids.

• Process Plants: Suitable for on/off control of actuators and feedback from sensors in environments with AC power lines.

• Packaging and Assembly Lines: Integrates into systems with AC-driven field devices and relay-based outputs.

• Energy Distribution Facilities: Used in monitoring and control of switchgear and substations.

• Transportation Systems: Applied in railway signaling, traffic barriers, and tunnel automation systems.

• Manufacturing Automation: Ideal for interfacing with AC-powered field equipment across discrete manufacturing sectors.

Product Advantages

• Modular Construction: Separate electronics and terminal base simplify replacement, upgrade, and maintenance.

• Designed for High Voltage: Supports 115V AC input/output applications directly without external interfacing.

• Built-in Diagnostics: Real-time monitoring of wire faults, overloads, and communication issues reduces troubleshooting time.

• Visual Status Feedback: Each I/O channel includes LED indicators to show operational status instantly.

• Wide Compatibility: Works seamlessly with Genius-compatible controllers and host systems like GE Series 90-70, 90-30, and RX3i.

• Industrial-Grade Reliability: Withstands harsh conditions including electrical noise, temperature fluctuation, and vibration.

Frequently Asked Questions (FAQ)

1. What is the GE IC660EBA026 used for?

   It serves as the electronics component of a Genius I/O block for handling 115V AC discrete signals in industrial control systems.

2. Can the module be configured without software?

   Yes, configuration is possible using a GE Genius hand-held monitor, though software tools are also supported.

3. Is this module suitable for analog signals?

   No, this specific model is designed only for discrete AC input/output. For analog, other Genius models should be used.

4. How does it handle electrical faults?

   The module includes built-in diagnostics for detecting open wires, short circuits, and overloads on each channel.

5. What base does this module require?

   It must be paired with a compatible terminal base, such as IC660TBA026, to function properly.

6. What kind of devices can I connect to it?

   It supports AC-powered sensors, relays, solenoids, and other high-voltage field devices.

7. Can it be replaced while powered on?

   No, the module should be powered down before replacement to avoid potential damage or communication faults.

8. How many I/O points are supported?

   The number of I/O points depends on the terminal base it is paired with, typically 16 channels.

9. Is the Genius bus still widely supported?

   Yes, especially in legacy and long-life industrial installations. Many current GE systems maintain compatibility.

10. What makes this different from a full I/O block?

    This is the electronics-only portion. A full block includes both the electronics and the terminal base for complete operation.
