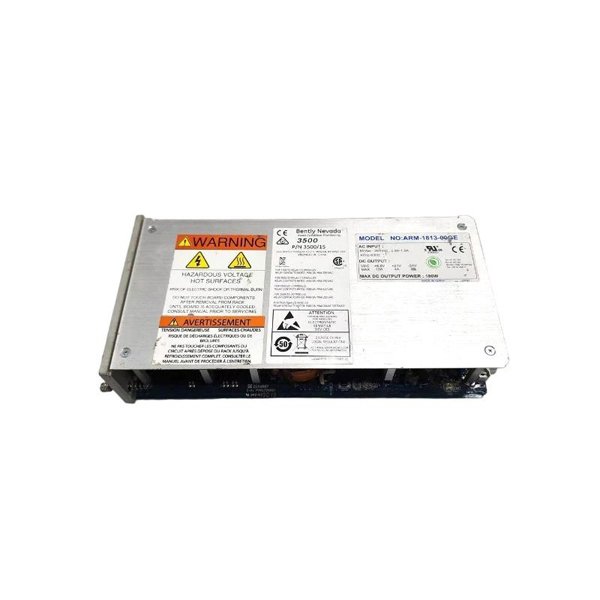

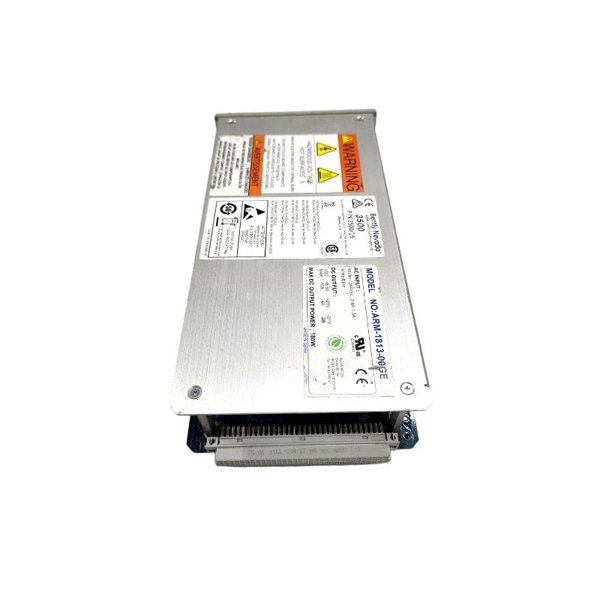

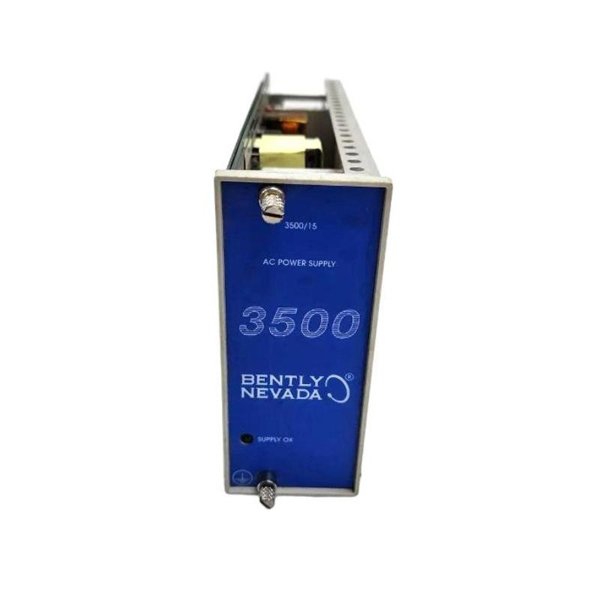

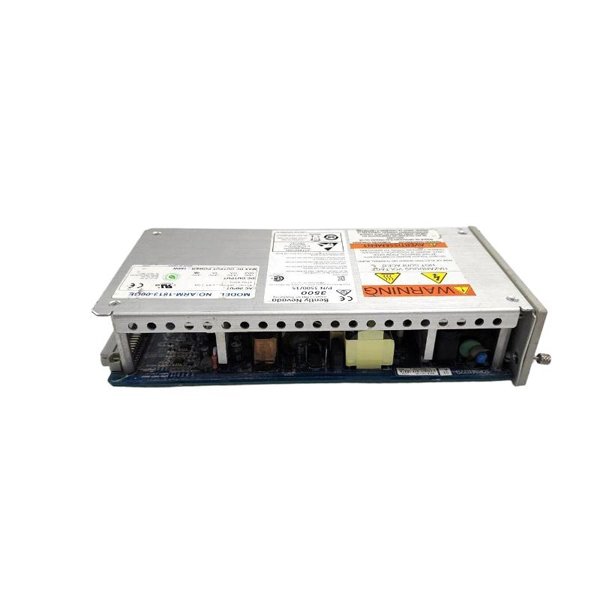

Bently Nevada 3500/15-04-04-02 Power Supply Module

The Bently Nevada 3500/15-04-04-02 power supply module is a high-performance component designed to provide continuous, reliable power to the 3500 Series condition monitoring systems. Known for its robustness and reliability, this power supply ensures that critical monitoring equipment remains operational, providing uninterrupted power in even the most demanding industrial environments.

This module is crucial for industries where real-time monitoring of machinery and equipment is vital for preventing failures and maintaining operational efficiency. It is designed to handle high-stress environments and deliver consistent power to monitoring systems, ensuring that all connected modules receive stable voltage, leading to accurate data collection and system performance.

The 3500/15-04-04-02 power supply is ideal for industries such as power generation, oil and gas, chemical processing, and manufacturing, where precision and uptime are key to operational success. With advanced protection features and energy-efficient performance, this power supply module is an integral part of the 3500 Series monitoring system.

Technical Parameters

Applications

The 3500/15-04-04-02 power supply module is designed for critical applications in industries where continuous, reliable power is required to maintain the operational efficiency of monitoring systems. Some of its key applications include:

• Power Generation: Ensures the continuous operation of monitoring equipment in power plants, helping to avoid downtime and ensuring safe and efficient power generation.

• Oil & Gas: In remote and harsh environments, this power supply module ensures that essential monitoring equipment remains powered, minimizing operational disruptions in oil rigs, refineries, and pipelines.

• Chemical Processing: Provides stable power to critical systems in chemical plants, helping to monitor processes that could otherwise lead to safety hazards or production delays if not properly managed.

• Heavy Manufacturing: Supports manufacturing processes and ensures that automated systems, machines, and assembly lines are continuously monitored to prevent unexpected breakdowns and improve overall production efficiency.

Advantages

1. Reliability and Durability: With an MTBF of 200,000 hours, this power supply module is designed for long-term reliability, making it a key component for high-uptime systems.

2. Wide Input Voltage Range: The module can operate within a voltage range of 85–264 VAC, ensuring compatibility with electrical systems worldwide.

3. Compact and Lightweight: The 3500/15-04-04-02 module has compact dimensions of 120.7 x 50.8 x 251.5 mm and weighs only 1.39 kg, allowing for easy integration into confined spaces without compromising performance.

4. Efficient Power Consumption: With a low power consumption of 90 W, the module is energy-efficient, helping to minimize operational costs while providing stable power.

5. Temperature and Humidity Tolerance: This module is designed to function in extreme environments with an operating temperature range of 0°C to +70°C and can handle relative humidity levels between 5% and 95% (non-condensing), making it suitable for a wide variety of industrial settings.

6. Versatility: The 3500/15-04-04-02 power supply is compatible with various industrial applications, offering adaptability across sectors, from manufacturing to power generation.

FAQ

Q1: What is the input voltage range for the Bently Nevada 3500/15-04-04-02 power supply module?

A1: The module accepts an input voltage range of 85–264 VAC, 50/60 Hz, ensuring it can be used globally in different electrical environments.

Q2: What is the output voltage of the 3500/15-04-04-02 module?

A2: The module provides a stable 24 VDC output voltage with ± 1% accuracy, ensuring consistent power delivery to connected modules.

Q3: How much output current can this power supply module provide?

A3: The 3500/15-04-04-02 module can deliver up to 3.5 A of output current, making it suitable for powering multiple modules and devices in the monitoring system.

Q4: What are the physical dimensions of the Bently Nevada 3500/15-04-04-02 power supply module?

A4: The module has dimensions of 120.7 x 50.8 x 251.5 mm, which allows for easy installation in tight spaces without compromising performance.

Q5: What is the weight of the power supply module?

A5: The module weighs 1.39 kg, making it lightweight and easy to install without requiring special handling equipment.

Q6: What is the operating temperature range for this module?

A6: The operating temperature range is 0°C to +70°C, ensuring that it can function effectively in both cold and hot industrial environments.

Q7: What is the humidity tolerance of the Bently Nevada 3500/15-04-04-02 power supply module?

A7: This power supply module can operate in environments with relative humidity levels between 5% and 95% (non-condensing), making it suitable for a wide range of industrial settings.

Q8: What is the MTBF for the 3500/15-04-04-02 power supply module?

A8: The 3500/15-04-04-02 has a Mean Time Between Failures (MTBF) of 200,000 hours, indicating its high reliability and longevity in industrial applications.

Q9: Can this module be used in hazardous environments?

A9: While the 3500/15-04-04-02 is highly durable, it is not specifically rated for hazardous locations. It is important to evaluate the specific conditions of the installation site to ensure compatibility with safety standards.

Q10: How much power does this module consume?

A10: The 3500/15-04-04-02 power supply module consumes only 90 W of power, ensuring efficient energy usage while maintaining stable performance.
