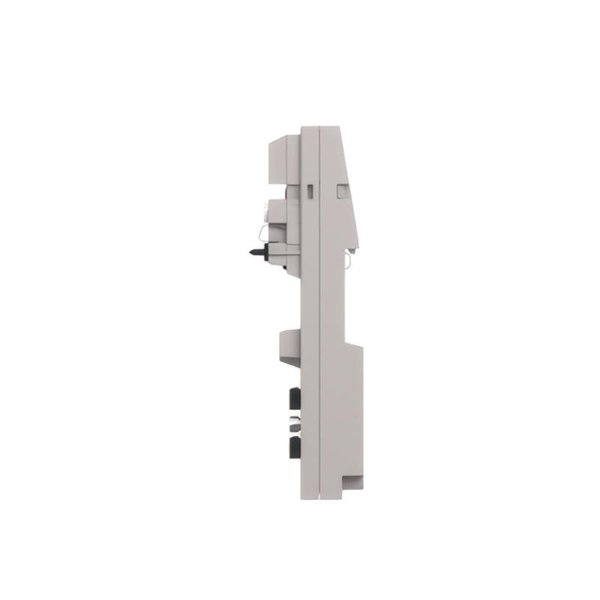

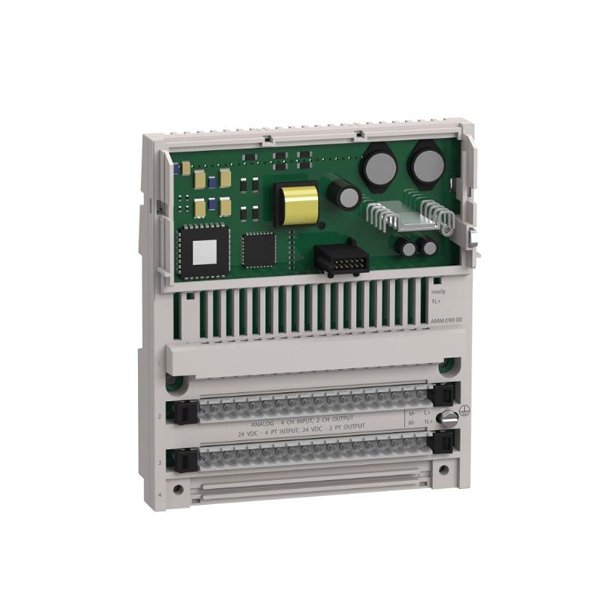

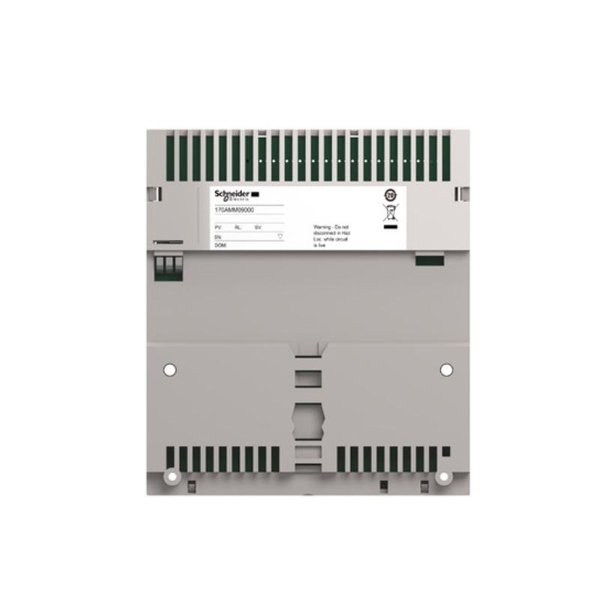

Schneider 170AMM09000 Distributed Analog Discrete I/O Module

The Schneider Electric 170AMM09000 is a Distributed Analog/Discrete I/O Module belonging to the Modicon Momentum I/O architecture, designed to meet the demanding requirements of distributed automation systems. It combines both analog and discrete I/O capabilities in one compact module, significantly simplifying system architecture and reducing hardware footprint.

Engineered for applications requiring high flexibility, the 170AMM09000 module offers a practical solution for controlling mixed-signal environments where both analog process variables and digital states must be monitored or controlled simultaneously. This module integrates seamlessly with Modicon Momentum processors or communication adapters, making it ideal for remote and decentralized installations in industrial automation environments.

Product Specifications

Product Applications

The Schneider 170AMM09000 module is especially suited for hybrid control applications where analog and digital inputs/outputs are handled together in compact form factors. Common use cases include:

• Water and Wastewater Treatment – Monitoring flow rates, tank levels, and operating valve control.

• Building Automation – HVAC control, lighting management, and environmental condition monitoring.

• Food and Beverage Industry – Blending processes, temperature, and valve control in bottling lines.

• Pharmaceutical Manufacturing – Process control for batching, mixing, and environmental compliance.

• Energy Management Systems – Monitoring energy consumption and controlling auxiliary equipment.

• Remote Monitoring Stations – Collecting field data and issuing control signals in distributed systems.

Product Advantages

• All-in-One I/O: Combines analog and discrete I/O in a single module, reducing cabinet space and simplifying wiring.

• Flexible Signal Handling: Supports both voltage and current signals, suitable for various sensor types and actuators.

• Seamless Integration: Natively connects with the Modicon Momentum platform for scalable distributed control.

• Compact Form Factor: Ideal for decentralized control panels and limited-space installations.

• Robust Design: Operates reliably in harsh industrial environments with wide temperature tolerance.

• Energy Efficient: Low power consumption supports sustainability in control system design.

• Fast Response Time: Real-time signal acquisition ensures process stability in critical control loops.

• Hot Swappable: Enables quick field maintenance without halting operations, improving system availability.

• Simplified Maintenance: Diagnostic capabilities allow quick troubleshooting of I/O channels.

• Standards Compliance: Certified for use in global industrial environments (CE, UL, CSA).

Frequently Asked Questions (FAQ)

1. What is the total I/O channel count of the 170AMM09000 module?

   It provides 4 analog inputs, 2 analog outputs, 6 digital inputs, and 2 digital outputs.

2. Can the analog channels handle both voltage and current signals?

   Yes, the analog channels are configurable for either voltage (0–10V) or current (4–20 mA).

3. Is this module compatible with Modicon Momentum CPUs?

   Absolutely. It is specifically designed to integrate with Momentum processors or communication adapters.

4. Does it support signal scaling or conversion?

   Yes, analog signals can be scaled within the programming environment to engineering units.

5. What is the input signal resolution of analog channels?

   The module features 12-bit resolution for analog inputs and outputs.

6. Can it be hot-swapped during system operation?

   Yes, if the Momentum platform is properly configured, modules can be replaced without system shutdown.

7. Are the digital outputs relay or transistor-based?

   This depends on the internal configuration, but typically, outputs are relay-type to support higher voltage levels.

8. What is the maximum voltage for digital inputs?

   The digital inputs are rated for 24 VDC.

9. Is software configuration required before use?

   Yes, it needs to be configured via Schneider’s Unity Pro or EcoStruxure Control Expert software.

10. Is the module suitable for remote I/O expansion?

    Yes, it is designed to operate as a remote I/O unit in distributed control applications.
