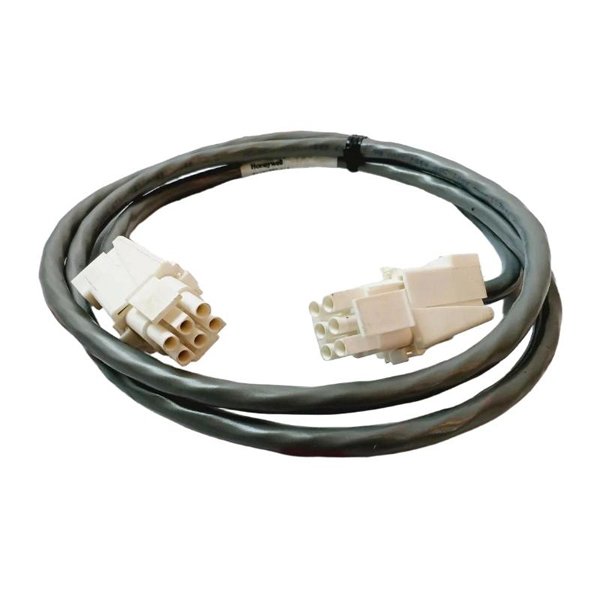

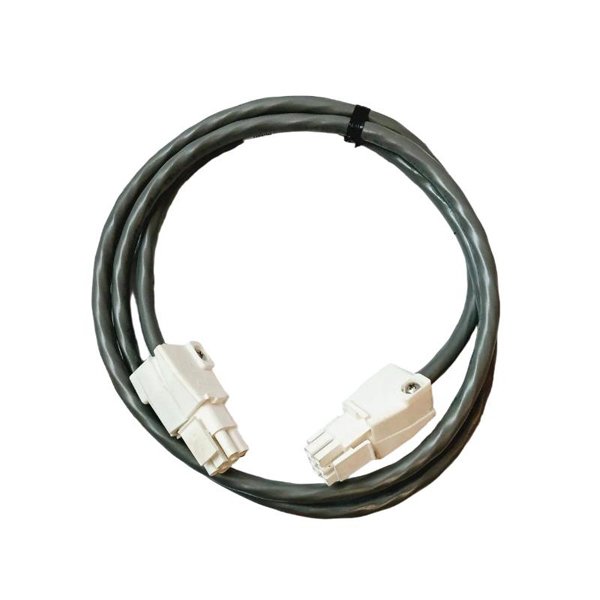

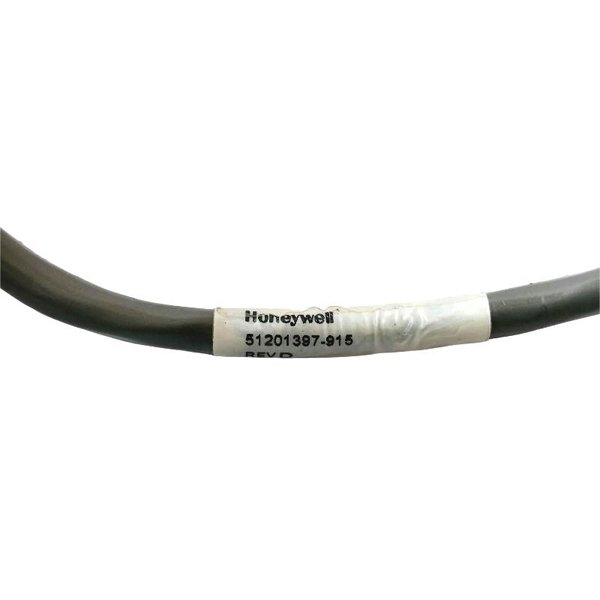

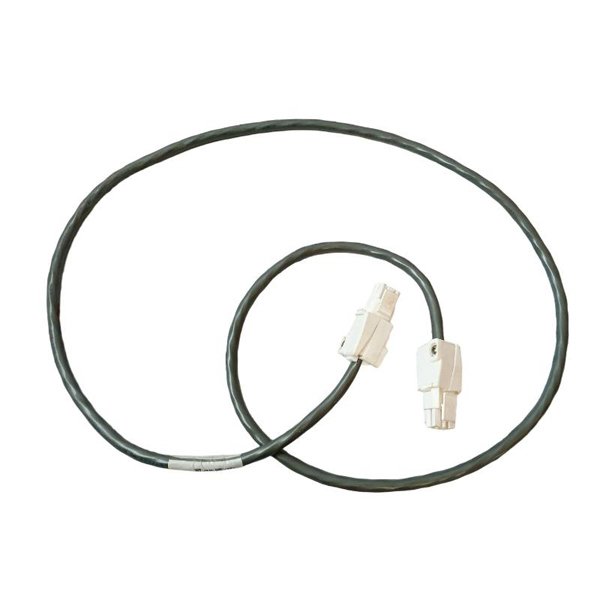

Honeywell MU-KDPR00 MU-KDPR915 51201397-915 Power Cable

The Honeywell MU-KDPR00 MU-KDPR915 51201397-915 Power Cable is a precision-engineered industrial-grade cable assembly designed for Honeywell Distributed Control Systems (DCS) and critical process automation environments. This cable provides secure and stable power transmission between controllers, I/O modules, and power distribution units.

Manufactured using high-purity copper conductors and advanced shielding technology, the MU-KDPR915 ensures low resistance, superior electromagnetic interference (EMI) protection, and long-term durability in demanding operating conditions. It is pre-terminated with Honeywell-specific connectors to guarantee plug-and-play compatibility with Honeywell hardware, reducing installation time and minimizing wiring errors.

Product Specifications

Product Applications

The Honeywell MU-KDPR915 Power Cable is designed for reliable power transmission in a wide range of industrial and process automation environments:

• Distributed Control Systems (DCS): Provides secure power connections between controllers, I/O modules, and power supply units.

• Process Automation: Ensures consistent power delivery to instrumentation panels and field devices.

• Power Generation: Connects turbine control units, auxiliary modules, and backup power systems.

• Oil & Gas: Used in wellhead automation, compressor station control, and pipeline monitoring systems.

• Chemical & Pharmaceutical: Powers batch control units and critical process automation panels.

• Water & Wastewater: Supplies power to SCADA panels, pumps, and control cabinets for reliable operation.

Product Advantages

• Stable Power Delivery: High-conductivity copper ensures low resistance and minimal voltage drop.

• Excellent EMI/RFI Protection: Dual-layer shielding prevents electrical noise in sensitive control environments.

• Industrial Durability: Withstands mechanical stress, vibration, and harsh environmental conditions.

• Pre-Terminated for Honeywell Systems: Plug-and-play connectors reduce installation errors and save time.

• Safety Compliance: Meets flame-retardant and insulation standards for industrial use.

• Compact Length for Panel Integration: 1.5 m length is ideal for cabinet and rack-mounted installations.

• Low Maintenance: Robust design reduces the risk of failure and maintenance requirements.

• Optimized for DCS: Designed to maintain reliable power in mission-critical Honeywell control systems.

FAQ

1. What is the maximum current handling capacity of the MU-KDPR915 cable?

   It is rated to handle up to 10 A under standard DCS operating conditions.

2. How is the shielding configured to minimize electromagnetic interference?

   The cable uses a dual-layer shielding system combining foil and braided copper to suppress EMI and RFI effectively.

3. Does the cable support redundant power configurations in Honeywell DCS systems?

   Yes, it is designed to function in both primary and redundant power distribution setups.

4. What type of grounding is recommended for this cable assembly?

   A dedicated earth ground connection is recommended to maintain shielding effectiveness and system safety.

5. How does the cable maintain low signal loss during power transmission?

   It uses high-purity stranded copper conductors and optimized impedance to reduce resistance and minimize power loss.

6. Is the cable compatible with hot-swappable power supply modules?

   Yes, it is engineered for safe operation with Honeywell systems that allow hot-swappable power modules.

7. What level of electrical noise immunity does the MU-KDPR915 provide?

   It meets industrial EMI immunity standards (IEC 61000-4 series), ensuring stable operation in noisy environments.

8. Can the cable be used in systems requiring both AC and DC power lines in the same harness?

   Yes, it supports mixed AC/DC configurations as long as the installation follows Honeywell wiring guidelines.

9. Does the cable incorporate strain relief to protect terminations under mechanical stress?

   Yes, factory terminations include integrated strain relief to ensure connector integrity in high-vibration environments.

10. What are the insulation resistance and dielectric strength ratings of the cable?

    It provides insulation resistance greater than 100 MΩ/km and dielectric strength exceeding 2 kV as per industrial safety standards.
