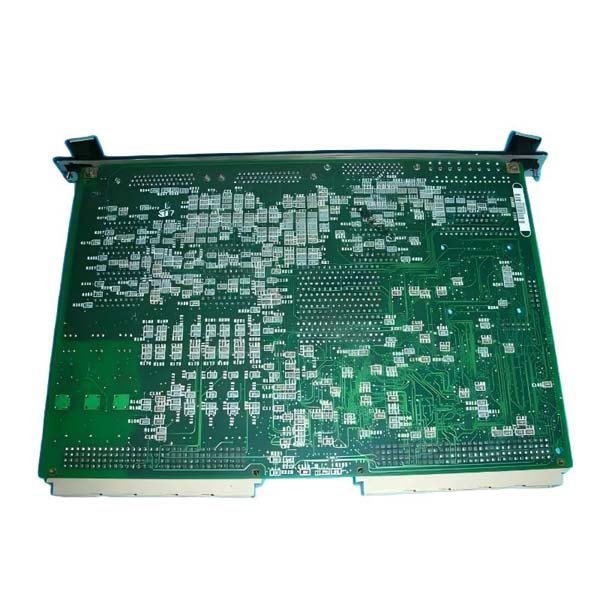

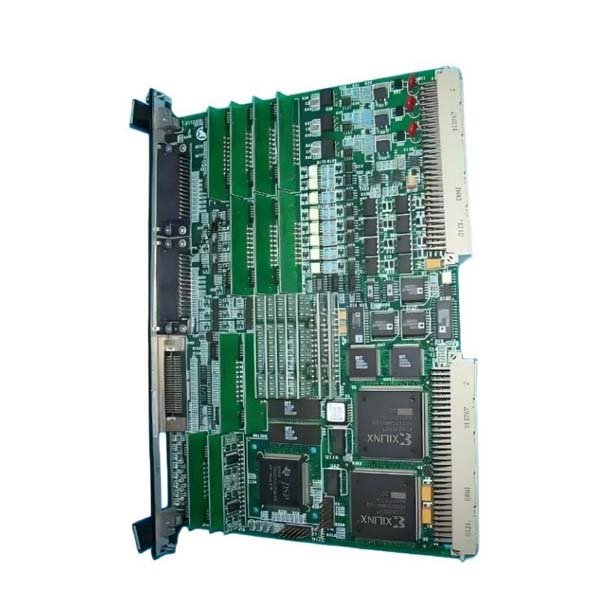

General Electric IS200BICIH1ADB Current & Voltage Conditioning Interface Board

The GE IS200BICIH1ADB is a current and voltage interface conditioning board designed for the Mark VI family of turbine and industrial drive control systems. It functions as a stable intermediary between raw electrical signals and the control processor, ensuring that measurement inputs are filtered, scaled, and delivered with the accuracy required for real-time control tasks. This module is frequently used in systems where reliable analog input conditioning is essential for safe and efficient operation.

Technical Profile & Physical Characteristics

Practical Industrial Uses

This board is commonly positioned in measurement chains that require high signal integrity. Suitable environments include:

• Turbine control cabinets

• Power conversion systems requiring precise feedback

• Current/voltage sensing networks within drive assemblies

• Protection systems needing stable analog inputs

• Retrofit projects replacing earlier BICI revisions

In these setups, the IS200BICIH1ADB ensures that noisy or unconditioned process signals are properly shaped before entering the main control processor.

Key Advantages in System Operation

The conditioning circuits built into the IS200BICIH1ADB help maintain consistent measurements even when line noise, temperature drift, or load variation occur. Field technicians appreciate the module’s predictable behavior, minimal recalibration requirements, and robust signal isolation. Its rugged mechanical construction supports long operational life, especially in cabinets with continuous thermal cycling.

FAQs

1. What signals does the IS200BICIH1ADB handle?

   It processes both current and voltage analog inputs.

2. Is it a Mark VI-only board?

   Yes, it is primarily designed for the Mark VI environment.

3. Does the module provide electrical isolation?

   Yes, isolation is part of its analog conditioning function.

4. Can it replace other BICI revisions?

   Often yes, but compatibility must be checked against cabinet layout.

5. Does it require field calibration?

   Usually no; factory calibration is sufficient for normal operation.

6. How do I know if the board is failing?

   Unstable analog readings or intermittent measurement loss are common symptoms.

7. Does it digitize signals?

   No, it conditions analog signals before they reach converter or controller inputs.

8. Is the module affected by EMI?

   Its filtering helps mitigate EMI, but severe interference can impact performance.

9. Can this board operate in high-vibration environments?

   Yes, within GE’s industrial vibration tolerance.

10. Is repair recommended?

    Full replacement is the standard approach for maintenance.
