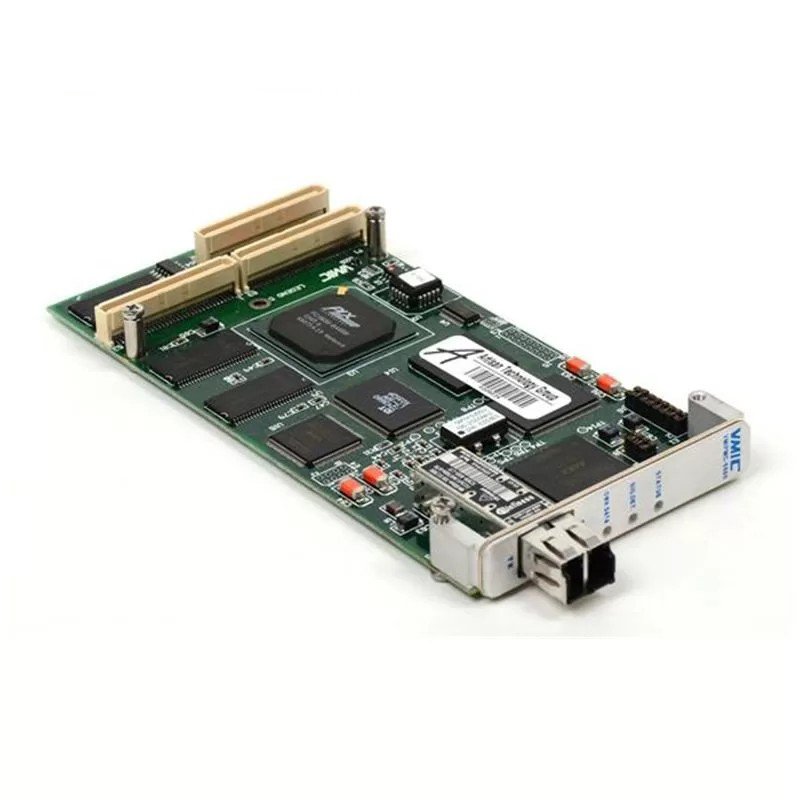

GE PMC-5565 Reflective Memory Node Card

The GE PMC-5565 is a high-speed, low-latency, deterministic interface card designed for real-time data sharing. It supports multiple independent systems (nodes) and offers data transfer rates up to 170 Mbytes per second. This card is part of the 5565 Reflective Memory family, which comes in various form factors, including PCI Express, PMC, PCI, and VME.

Key Features and Specifications

• High-speed Data Transfer: Supports data transfer rates up to 170 Mbytes per second.
• Low Latency: Provides deterministic, low-latency data transfer.
• Multiple Nodes: Connects up to 256 independent systems for data sharing.
• Onboard Memory: Configurable with 128 MB or 256 MB of SDRAM.
• Form Factors: Available in PMC, PCI, and other configurations.
• Applications: Ideal for real-time data sharing in industrial automation, data acquisition, and test and measurement.

Technical Specifications

• Memory: 128 MB or 256 MB SDRAM
• Transmission Rates:
  • 43 MByte/second (single long word access)
  • 170 MByte/second (64-byte burst)
• Non-redundant Transmission Rates:
  • 20 MByte/second (single long word access)
  • 87 MByte/second (64-byte burst)
