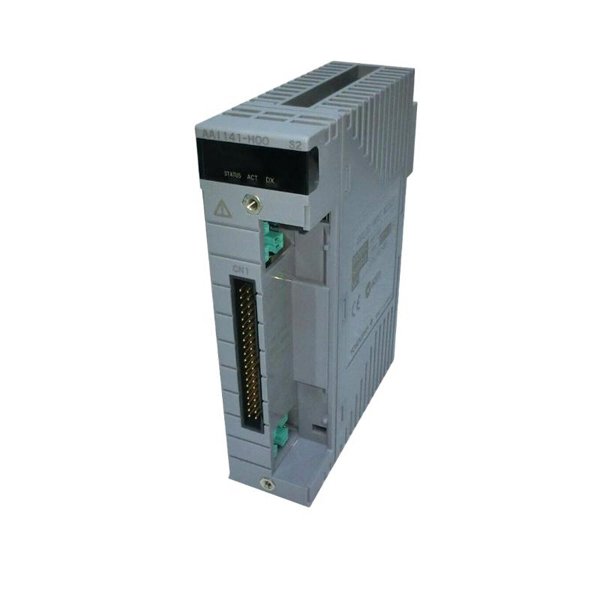

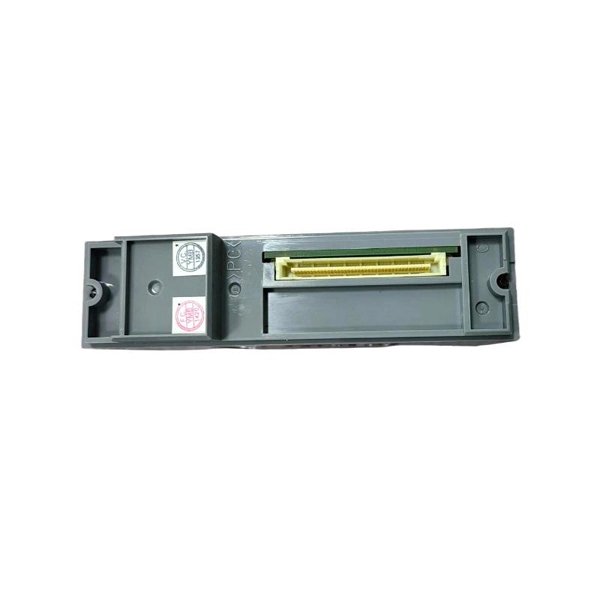

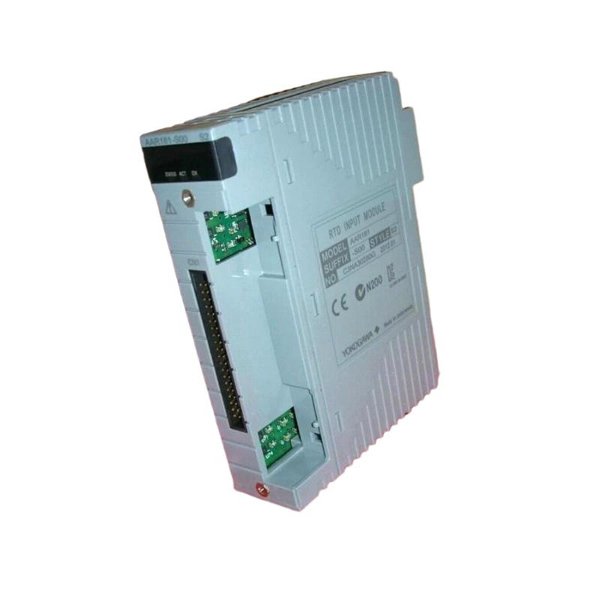

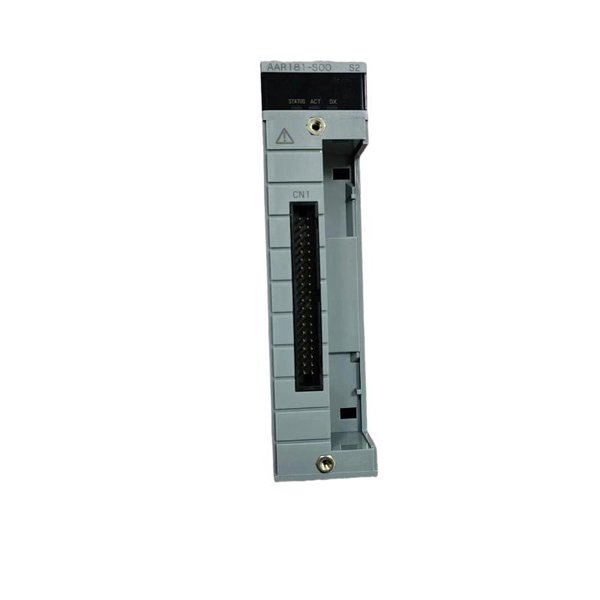

Yokogawa AAR181-H00/K4A00 RTD Input Module

The Yokogawa AAR181-H00/K4A00 is a high-performance RTD input module designed for precise temperature measurement and control in industrial systems. This module features high accuracy and supports multiple RTD sensors, making it an ideal solution for temperature monitoring applications across a wide range of industries, including chemical processing, automated manufacturing, and HVAC systems.

This isolated RTD input module provides excellent signal processing and ensures that the temperature measurements are accurate, even in harsh and noisy environments. By supporting a variety of RTD sensors, the AAR181-H00/K4A00 ensures flexibility in integrating into different process control systems and environments. The compact design of the module allows for easy integration into existing systems, making it a valuable tool for both new installations and upgrades.

Product Specifications

Product Applications

The Yokogawa AAR181-H00/K4A00 RTD Input Module is designed for applications where precise temperature measurements are required. Its flexibility and accuracy make it ideal for a variety of industrial and automation applications, such as:

1. Industrial Temperature Control

   The module is commonly used in industrial temperature control systems to monitor the temperature of machinery, reactors, and heating equipment. It ensures that temperatures are maintained within optimal ranges for safe and efficient operations.

2. Automated Manufacturing Systems

   In automated manufacturing, accurate temperature readings are essential for ensuring that machinery and equipment operate within their designated temperature thresholds. The AAR181-H00/K4A00 is ideal for applications such as temperature sensing in furnaces, ovens, and production lines.

3. HVAC Systems

   The AAR181-H00/K4A00 is used extensively in HVAC (Heating, Ventilation, and Air Conditioning) systems for monitoring and controlling the temperature of air or fluids in complex building management systems.

4. Chemical and Pharmaceutical Processing

   In chemical and pharmaceutical industries, where temperature is a critical process variable, the module provides accurate and reliable temperature measurements in reactors, mixers, and distillation columns to ensure process stability and safety.

5. Power Generation and Utilities

   The module is used in power plants and utilities for temperature measurement in boilers, turbines, and heat exchangers. Accurate monitoring of temperature helps optimize energy production and reduces maintenance costs.

6. Food and Beverage Manufacturing

   The AAR181-H00/K4A00 can be employed in food and beverage production lines to monitor the temperature of ingredients, cooking processes, and refrigeration systems, ensuring that production standards and food safety regulations are met.

Product Advantages

1. High Precision

   The AAR181-H00/K4A00 offers 16-bit resolution, ensuring high accuracy in temperature measurements. This precision is crucial for maintaining the quality and safety of processes that depend on accurate temperature control.

2. Isolated Inputs

   The module provides isolated inputs, which protect against electrical interference and ground loops. This is especially beneficial in industrial environments where noise can affect measurement accuracy and cause operational issues.

3. Wide Temperature Range

   The AAR181-H00/K4A00 module supports an input range of -200°C to 850°C, making it suitable for a variety of industrial applications requiring a wide temperature measurement span.

4. Compact Design

   With dimensions of 107.5 x 130 x 32.8 mm, the AAR181-H00/K4A00 is designed to be compact, making it ideal for installation in systems with limited space.

5. Reliable Performance

   Built by Yokogawa, the module is designed to provide long-term reliability and stability, ensuring continuous operation in critical systems, reducing downtime, and improving system efficiency.

6. Versatility in Applications

   The AAR181-H00/K4A00 is compatible with a wide range of RTD sensors, offering flexibility to meet the demands of different industries and applications.

7. Easy Integration

   The module is DIN rail mountable, making installation easy and convenient. Its standard size and configuration allow it to fit into existing control systems with minimal effort.

8. Energy-Efficient

   Operating on a 24V DC ±10% power supply, the module is designed to be energy-efficient, making it a cost-effective choice for long-term operations.

9. Durable and Robust

   With an IP20 protection rating, the module is designed to perform well in most industrial environments, where it may be exposed to dust or other environmental factors.

10. Ideal for Harsh Environments

    Its wide operating temperature range of -10°C to +60°C makes the module suitable for use in both cold and hot environments, making it adaptable to a variety of industrial settings.

FAQ

Q1: How many channels does the AAR181-H00/K4A00 module support?

A1: The AAR181-H00/K4A00 supports 4 channels for RTD inputs.

Q2: What is the input range of the module?

A2: The module supports an input range of -200°C to 850°C for RTD sensors.

Q3: What is the resolution of the input channels?

A3: The module provides 16-bit resolution for accurate temperature measurements.

Q4: What is the power supply requirement for the module?

A4: The AAR181-H00/K4A00 requires a 24V DC ±10% power supply.

Q5: What is the protection rating of the module?

A5: The AAR181-H00/K4A00 has an IP20 protection rating, which means it is protected from dust but not from water.

Q6: Can this module handle multiple types of RTD sensors?

A6: Yes, the module is designed to be compatible with a variety of RTD sensors for versatile applications.

Q7: What is the operating temperature range for this module?

A7: The module operates within the temperature range of -10°C to +60°C.

Q8: How is the module mounted?

A8: The AAR181-H00/K4A00 is designed for DIN rail mounting for easy installation.

Q9: What industries use the AAR181-H00/K4A00 module?

A9: It is commonly used in industries such as chemical processing, automated manufacturing, HVAC systems, food and beverage production, and energy generation.

Q10: Is the module suitable for use in harsh industrial environments?

A10: Yes, the module is built to provide reliable performance even in harsh industrial environments and is designed with an IP20 protection rating.
