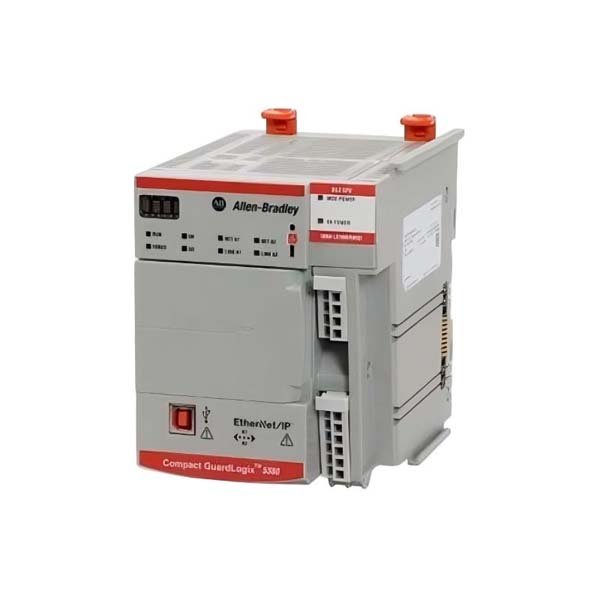

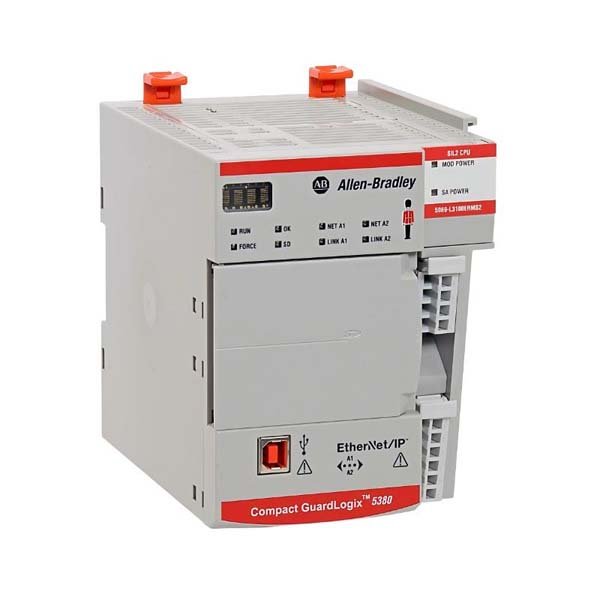

Allen-Bradley 5069-L3100ERS2 CompactLogix 5380 CPU Module

The Allen-Bradley 5069-L3100ERS2 is a CompactLogix 5380 CPU module engineered for high-speed, synchronized machine control and connected enterprise environments. Designed to handle complex automation demands, this controller delivers superior processing performance, expanded memory, and dual redundancy support — making it ideal for critical industrial applications requiring both reliability and scalability.

With 1 MB of user memory, dual EtherNet/IP ports, and Kinematic motion control, the 5069-L3100ERS2 enables manufacturers to achieve tighter integration between control, motion, and safety systems. Its rock-solid real-time performance ensures fast response and deterministic communication — vital for industries such as packaging, material handling, automotive, and process automation.

Technical Specifications

Industrial Applications

• Automotive Manufacturing – Precision motion and synchronization across multiple robotic cells.

• Packaging & Labeling Systems – High-speed coordination between conveyors, sensors, and drives.

• Material Handling – Real-time control for sorting and palletizing operations.

• Pharmaceutical Automation – FDA-compliant processes with data integrity and traceability.

• Food & Beverage Production – Continuous production with minimal downtime via redundant architecture.

• Energy & Utility Systems – Stable control for power distribution and turbine regulation.

System Advantages

• Dual Redundancy Support (S2) – Guarantees system continuity in critical applications.

• Ultra-Fast Execution – Multicore processor ensures rapid logic and motion calculations.

• Integrated Safety and Motion – CIP Safety and CIP Motion reduce wiring and configuration effort.

• EtherNet/IP Dual-Port Design – Simplifies network topologies with ring or star configurations.

• Scalable Architecture – Compatible with Compact 5000 I/O modules for future expansion.

• Enhanced Cybersecurity – Built-in controller signature and firmware protection.

• Reduced Wiring Complexity – One unified network for safety, motion, and control.

• High I/O Density – Accommodates multiple I/O modules in a compact setup.

• Global Compliance – Meets CE, UL, cUL, and ATEX standards.

• Energy Efficient – Optimized power consumption for long-term cost savings.

FAQs

1. Q: What is the total user memory of the 5069-L3100ERS2?

   A: It offers 1 MB of user memory for program and data storage.

2. Q: Does this controller support redundancy?

   A: Yes, the “S2” suffix indicates full system redundancy capability.

3. Q: What type of Ethernet ports are included?

   A: Two integrated Gigabit EtherNet/IP ports supporting DLR and star topologies.

4. Q: Can this module control motion axes?

   A: Yes, it supports up to 32 motion axes via CIP Motion.

5. Q: What programming environment is used?

   A: It’s programmed using Studio 5000 Logix Designer software.

6. Q: Is data logging or historian integration supported?

   A: Yes, through EtherNet/IP and FactoryTalk Historian integration.

7. Q: What power supply options are compatible?

   A: Compatible with 5069-PA2 (AC) and 5069-PB2 (DC) power supplies.

8. Q: What is the maximum number of local I/O modules?

   A: It supports up to 31 local Compact 5000 I/O modules.

9. Q: How is cybersecurity implemented?

   A: Through controller-based digital signature and firmware protection.

10. Q: What are the module’s physical dimensions and weight?

    A: 90 × 120 × 75 mm, approximately 0.48 kg.
