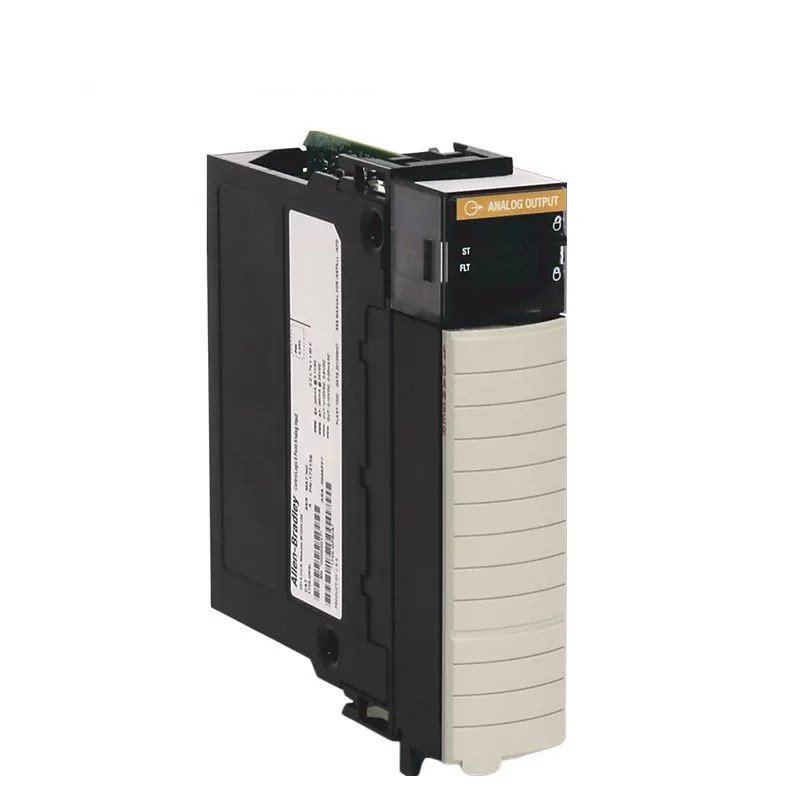

Allen-Bradley 1756-OF8I Controllogix Analog Output Module

The Allen-Bradley 1756-OF8I is an 8-point analog output module designed for ControlLogix systems. It offers a versatile solution for precise control of analog devices in various industrial applications. This module generates both voltage and current signals, driving a wide range of actuators and analog devices.

Key Features and Specifications

• 8-Point Analog Output: The module offers eight individually isolated channels for flexible configuration.
• High Resolution: It provides accurate and precise output signals, ensuring optimal performance.
• Voltage and Current Output: It supports both voltage and current output modes, catering to different application needs.
• Isolated Channels: The channels are electrically isolated, enhancing system reliability.
• Compact Design: Its compact design saves space in the control panel.
• Easy Configuration: You can easily configure it using Rockwell Automation programming software.
• Robust Construction: The module is built to withstand harsh industrial environments.

Technical Specifications

• Number of Channels: 8
• Output Type: Voltage or current
• Resolution: High resolution
• Isolation: Channel-to-channel isolation
• Mounting: DIN rail or panel mount
• Operating Temperature: -20°C to 60°C
• Power Supply: Provided by the ControlLogix system

Applications

The 1756-OF8I is commonly used in a variety of applications, including:

• Process Control: It regulates flow, temperature, pressure, and other process variables.
• Motion Control: It drives servo motors and other motion devices.
• Testing and Measurement: It provides analog outputs for calibration and testing equipment.

Benefits

• Improved Control: Precise control of analog devices optimizes system performance.
• Increased Flexibility: Versatile output options accommodate different application requirements.
• Enhanced Reliability: Isolated channels and robust construction ensure reliable operation in demanding environments.
• Easy Integration: The module integrates seamlessly into ControlLogix systems.
