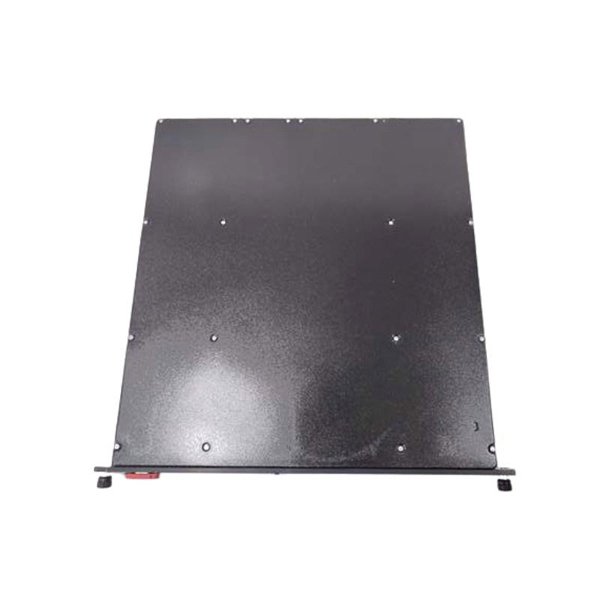

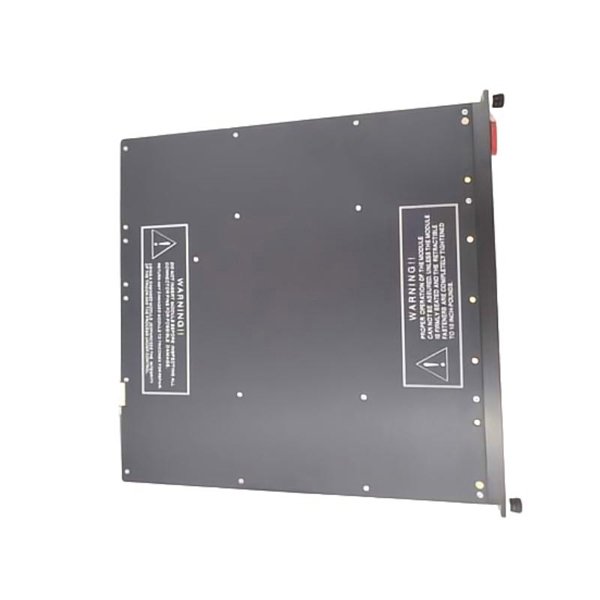

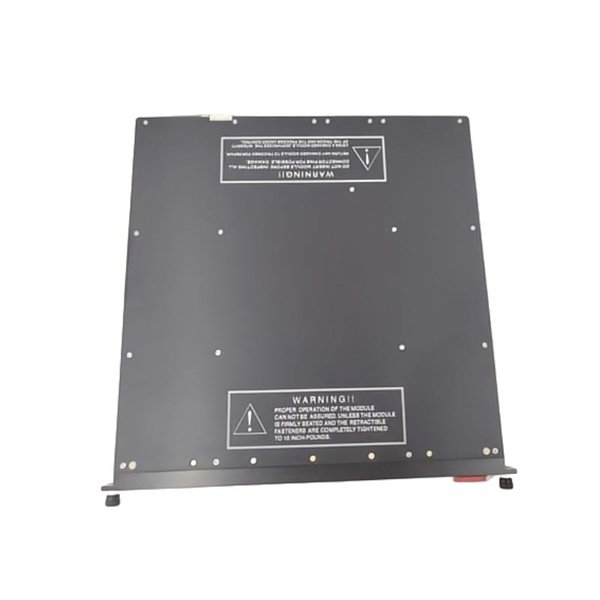

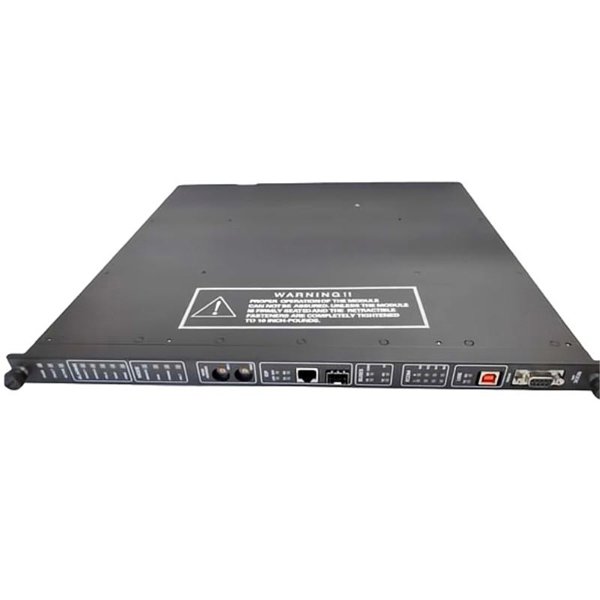

Triconex 4000103-546 Communication Module

The Triconex 4000103-546 Communication Module is a high-performance interface module designed to ensure reliable and secure communication within the Triconex safety and control system architecture. It is engineered for mission-critical industrial automation applications, supporting the transfer of control data, diagnostics, and event logs between controllers and external systems. This module is built with robust isolation features and advanced error-checking protocols to prevent data loss or corruption, making it an essential part of functional safety implementations in process industries such as oil & gas, petrochemicals, and power generation.

Its modular design allows easy integration into Triconex chassis systems, ensuring scalability and adaptability to diverse system configurations. The 4000103-546 complies with industry safety standards like IEC 61508, making it suitable for SIL-rated applications where operational continuity is non-negotiable.

Product Parameters

Product Applications

The Triconex 4000103-546 Communication Module is widely used in high-integrity safety and control systems across multiple industries:

• Oil & Gas – Communicating between safety shutdown systems and supervisory control systems in refineries and offshore platforms.

• Petrochemical Plants – Ensuring accurate data exchange for process safety interlocks.

• Power Generation – Managing safe communication between turbine control and safety protection systems.

• Water Treatment – Coordinating data between control systems to ensure process reliability.

• Pharmaceutical Manufacturing – Maintaining validated data paths for regulatory compliance in production.

• Pipeline Control – Real-time communication for leak detection and emergency shutdown systems.

Product Advantages

• High Reliability – Designed for continuous operation in safety-critical applications.

• Secure Communication – Includes advanced error-checking and fault isolation.

• Flexible Protocol Support – Allows integration with a variety of industrial communication standards.

• Scalability – Compatible with multiple system sizes and configurations.

• Compliance with Safety Standards – Supports SIL 3 safety requirements.

• Long Service Life – Robust construction ensures durability in harsh environments.

FAQ

1. What communication protocols does the 4000103-546 support?

   It supports proprietary Triconex protocols and can be configured for Modbus or TCP/IP depending on the system design.

2. Does the module provide galvanic isolation?

   Yes, it features galvanic and optical isolation to protect the system from electrical interference.

3. Can this module be used in SIL 3 safety systems?

   Yes, it is SIL 3 capable and compliant with IEC 61508 standards.

4. How is fault detection handled in this module?

   The module performs continuous self-diagnostics and error-checking to identify and isolate faults.

5. Is redundancy supported with this module?

   Yes, it can be deployed in redundant configurations to enhance system availability.

6. Can firmware updates be applied to this module in the field?

   Yes, field-upgradeable firmware is supported via secure update tools.

7. What is the typical data transfer rate of the module?

   The rate depends on the selected protocol, but it supports high-speed industrial communication.

8. How does the module handle communication loss?

   It has fail-safe modes to maintain system safety in case of data link failure.

9. Is hot-swapping supported for maintenance?

   Yes, the module is designed for hot-swapping in supported chassis systems.

10. Does the module integrate with third-party control systems?

    Yes, through Modbus or TCP/IP gateways, it can communicate with non-Triconex systems.
