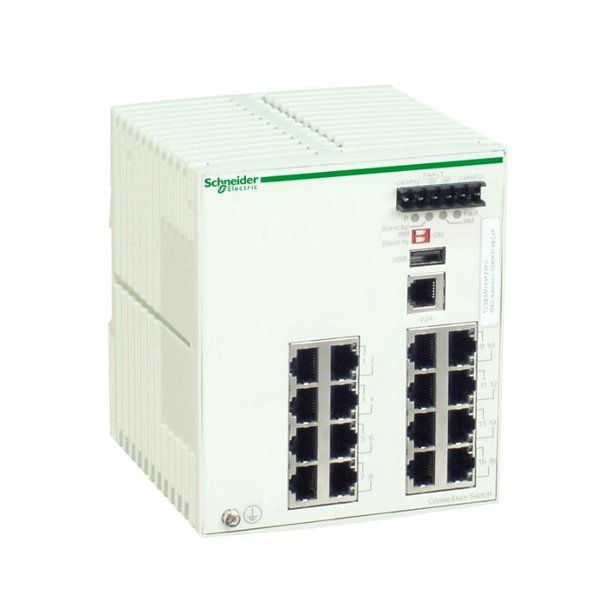

Schneider TCSESM163F23F0 ConneXium Managed Switch

The Schneider Electric TCSESM163F23F0 is a robust, industrial-grade managed Ethernet switch from the ConneXium family, tailored for use in demanding industrial communication environments. Designed to meet the growing demands of real-time, deterministic network control, this 16-port switch combines performance, ruggedness, and flexible configuration capabilities.

With 12 Fast Ethernet RJ45 ports and 4 SFP (fiber optic) slots, the TCSESM163F23F0 is highly versatile and capable of integrating both copper and fiber connections into a unified architecture. Its Layer 2 management capabilities, coupled with support for VLANs, QoS, SNMP, redundancy protocols (RSTP, MRP), and port mirroring, ensure optimized network traffic control and high availability.

This switch is ideal for automation networks requiring long-distance communication, high reliability, and hardened devices suitable for harsh environments such as factories, substations, and transportation systems.

Technical Specifications

Product Applications

The TCSESM163F23F0 is designed for mission-critical applications in industrial Ethernet networks, where data availability, security, and speed are vital. Typical application environments include:

• Industrial Automation: Connecting PLCs, HMIs, and SCADA systems on factory floors.

• Substation Automation: IEC 61850 compliance makes it ideal for power grid and energy networks.

• Smart Transportation Systems: Facilitating communication between sensors, controls, and monitoring systems.

• Oil & Gas Facilities: Providing reliable networking in high-EMI and hazardous environments.

• Water Treatment & Utilities: Ensuring stable networking across distributed infrastructure.

• Building Management Systems (BMS): Integrating HVAC, security, and access control systems.

Product Advantages

• Industrial-Grade Reliability: Rugged construction for high shock, vibration, and temperature tolerances.

• High Port Density: 16 ports (12 copper + 4 fiber) offer versatile connection options for large or segmented networks.

• Managed Functionality: Advanced configuration and diagnostic features improve uptime and network efficiency.

• Flexible Fiber Integration: SFP slots support long-distance fiber connections, reducing electrical interference.

• Redundancy Support: Enables ring or mesh topologies to prevent network failures using RSTP/MRP protocols.

• Secure Management: HTTPS, SNMPv3, and access controls protect against unauthorized configuration.

• Compliance with Power Utility Standards: Suitable for substations and critical infrastructure.

• Long Lifecycle & MTBF: Designed for continuous operation with>1 million hours MTBF.

Frequently Asked Questions (FAQ)

1. What type of switch is the TCSESM163F23F0?

   It is a Layer 2 managed Ethernet switch designed for industrial automation and real-time control networks.

2. What communication ports does the switch support?

   It has 12 × 10/100 Mbps RJ45 ports and 4 × 100 Mbps SFP slots for fiber optic connections.

3. Does the switch support VLAN segmentation?

   Yes, it supports IEEE 802.1Q VLANs with up to 256 VLAN entries for traffic isolation and security.

4. Can I manage the switch via a web interface?

   Yes, management is available via a web browser, CLI (Telnet), SNMP (v1/v2/v3), and secure HTTP (HTTPS).

5. Is this switch suitable for high-vibration environments?

   Yes, the ConneXium series is tested to meet industrial-grade shock and vibration standards.

6. How is redundancy handled in this model?

   The switch supports redundancy protocols like RSTP and MRP for rapid recovery from network faults.

7. What power supply is required?

   It requires 24 VDC nominal power input, and supports a range from 18–32 VDC.

8. Is it compatible with fiber networks?

   Yes, the 4 SFP ports support fiber transceivers, enabling integration into long-distance and EMI-sensitive networks.

9. How secure is this device for critical infrastructure use?

   It supports SNMPv3, HTTPS, and access control features, meeting modern industrial cybersecurity standards.

10. Can this switch be integrated into IEC 61850 networks?

    Yes, it meets IEC 61850 and IEEE 1613 compliance for substation automation applications.
