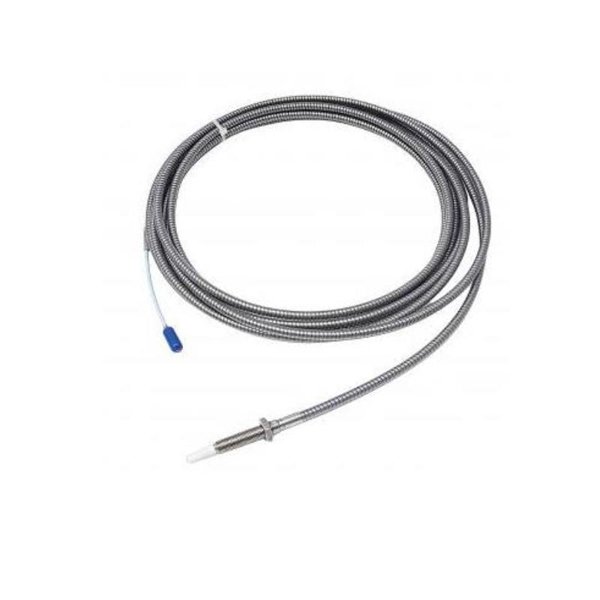

Bently Nevada 330104-03-09-50-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-03-09-50-02-00 3300 XL 8 mm proximity probe is a highly accurate sensor designed for the monitoring of vibrations and position shifts in rotating machinery. This model is part of Bently Nevada’s renowned 3300 XL series, which is widely trusted in industries for machinery health monitoring, predictive maintenance, and protection systems. The 3300 XL 8 mm proximity probe provides precise measurement capabilities, enabling early detection of mechanical issues such as misalignment, imbalance, and bearing wear, all of which could lead to unplanned downtime and expensive repairs.

This proximity probe is especially suitable for demanding industrial environments, including power generation, oil and gas, manufacturing, and mining. With its 5.0 meter length and 1.615 kg weight, this proximity probe is designed to deliver reliable, real-time data, even in harsh conditions. It ensures that operators can identify issues early, allowing for timely maintenance and optimal machinery performance.

Product Parameters

Here is a detailed table of the Bently Nevada 330104-03-09-50-02-00 3300 XL 8 mm proximity probe’s key specifications:

Product Applications

The Bently Nevada 330104-03-09-50-02-00 3300 XL 8 mm proximity probe is commonly used in various industries to monitor machinery health and performance. Below are the primary applications of this proximity probe:

• Turbine Monitoring: In power plants, turbines need constant vibration monitoring to prevent catastrophic failures. The 3300 XL proximity probe helps detect issues like misalignment, imbalance, or bearing wear, which can otherwise lead to turbine failure.

• Compressor Monitoring: Compressors in industries such as oil & gas, chemical processing, and HVAC systems require precise monitoring to detect imbalance or misalignment. The 3300 XL 8 mm probe provides real-time data, ensuring that compressors operate efficiently and safely.

• Pump Monitoring: In applications like water treatment and oil & gas, pumps must be regularly monitored to avoid unplanned downtime due to bearing failures or shaft misalignment. This proximity probe helps identify potential issues early, ensuring uninterrupted operations.

• Motor Condition Monitoring: Motors, particularly in industrial environments, require vibration and positional monitoring to detect mechanical issues that could lead to failure. The 3300 XL probe helps ensure that motors are aligned, balanced, and operating within acceptable parameters.

• General Machinery Condition Monitoring: The 3300 XL 8 mm proximity probe is suitable for monitoring a wide range of rotating machinery, such as gearboxes, fans, and blowers. It provides accurate measurements that allow operators to perform maintenance before problems lead to breakdowns.

This proximity probe allows industries to perform predictive maintenance, thus extending the life of machinery and reducing costs associated with unexpected downtime and repairs.

Product Advantages

The Bently Nevada 330104-03-09-50-02-00 3300 XL 8 mm proximity probe has several significant advantages that make it a valuable asset for machinery health monitoring:

1. High Accuracy: With an 8 mm sensing range, this probe provides highly accurate measurements of vibration and displacement, allowing for early detection of even the smallest mechanical faults.

2. Durable Construction: Constructed from stainless steel, the 3300 XL proximity probe is built to withstand extreme industrial environments, offering long-lasting performance even under harsh conditions.

3. Wide Temperature Range: The probe operates across a broad temperature range, from -40°C to +85°C, making it suitable for use in environments with fluctuating or extreme temperatures.

4. Compact and Lightweight: Despite its 5.0 meter length and 1.615 kg weight, the probe is easy to handle and install, making it ideal for use in confined spaces and tough installations.

5. Industry Standard Output: The 4-20 mA output is a standard in many industrial systems, ensuring that the 3300 XL probe can easily integrate with most machinery health monitoring systems.

6. Easy Installation: The threaded/stud mount allows for easy and secure installation on rotating machinery, reducing downtime during setup and maintenance.

7. Real-Time Data: By providing real-time vibration and displacement measurements, this proximity probe enables operators to monitor the health of machinery continuously, allowing for proactive maintenance and improved machinery reliability.

Frequently Asked Questions (FAQ)

1. What does the Bently Nevada 3300 XL 8 mm proximity probe measure?

   • It measures vibration and displacement in rotating machinery, helping to detect issues like misalignment, imbalance, and bearing wear.

2. What is the total length of the 3300 XL proximity probe?

   • The probe has a total length of 5.0 meters, which provides flexibility for installation in different industrial environments.

3. How much does the 3300 XL 8 mm proximity probe weigh?

   • The probe weighs 1.615 kg, which is relatively light for a sensor of its size and performance capabilities.

4. What is the operating temperature range of this probe?

   • The probe operates in temperatures ranging from -40°C to +85°C, which makes it suitable for use in a variety of industrial environments.

5. How is the Bently Nevada 3300 XL 8 mm proximity probe mounted?

   • It is mounted using a threaded/stud mount, providing a secure and reliable attachment to rotating machinery.

6. What output does the probe provide?

   • The probe provides a 4-20 mA output, which is standard for most industrial monitoring systems.

7. In which industries can this proximity probe be used?

   • The probe is used in power generation, oil & gas, manufacturing, water treatment, and other industries that rely on machinery condition monitoring.

8. How does this probe help with machinery health?

   • It detects early signs of mechanical failure, allowing operators to take corrective actions before issues lead to unplanned downtime or major repairs.

9. Can the probe detect small mechanical faults?

   • Yes, the 8 mm sensing range allows for the detection of even small vibrations and positional shifts, which can help identify early issues before they escalate.

10. How does the 3300 XL proximity probe reduce downtime?

    • By detecting issues early, the probe enables proactive maintenance, preventing unexpected failures and minimizing downtime in critical machinery.
