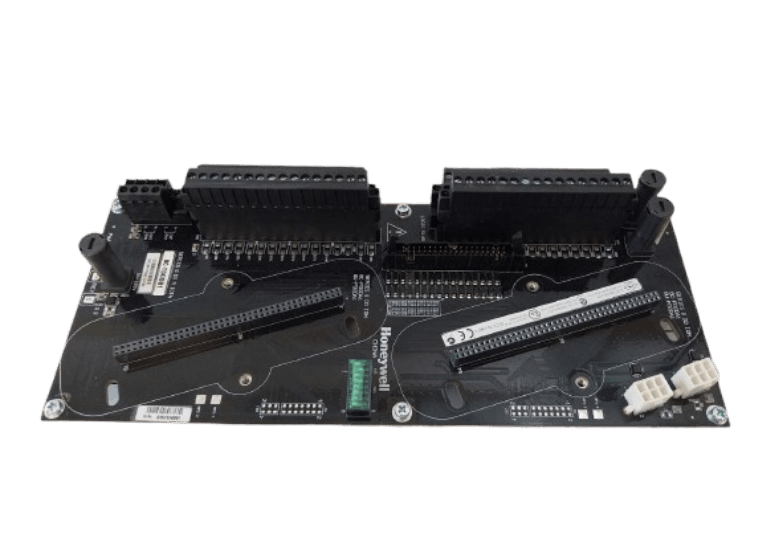

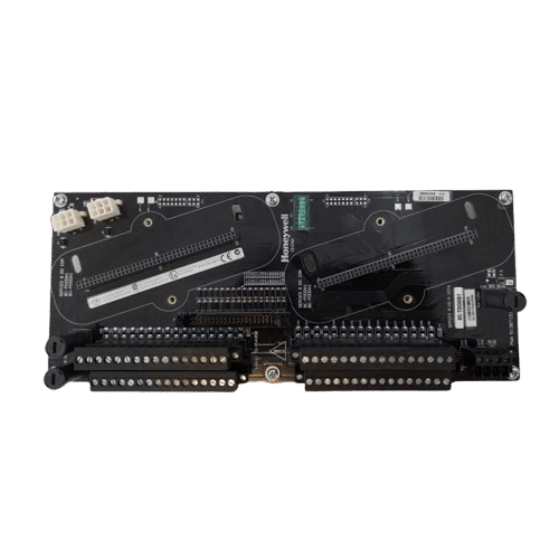

Honeywell 8C-TDODB1 51307151-175 Digital Output Module

Honeywell 8C-TDODB1(51307151-175) is a digital output module, which belongs to the 24V DC bus digital output (DO24V) module, 24V DC solid-state output, supports short-circuit protection, and can directly drive inductive/resistive loads such as solenoid valves and relays. This module is a bus design, all output channels share the same circuit (common ground), and the power supply can be internal or external.

Function & Features

FAILOPT safe state configuration (independent for each channel)

• HOLD LAST VALUE
• SHED TO SAFE VALUE (user-defined, usually 0V off).

Output mode (selectable for each channel)

• Latched
• Pulsed
• PWM.

Dual power supply option

• Internal power supply: Directly use Series 8 system power supply (non-isolated).
• External power supply: Use an external 24V power supply to achieve system and field side galvanic isolation (need to cooperate with IOTA jumper setting).

Specifications

Note: For specific wiring and redundancy configuration, please refer to the Series 8 DO module hardware manual.

Typical application scenarios

1. Emergency shutdown system (ESD)
2. Process control valve switch
3. Motor/actuator start and stop control
4. Safety interlock device drive

FAQs

Q: What is the brand?

A:Honeywell

Q: What is the type?

A: DO Module

Q: What is the warranty?

A: 1 year

Q: Where is the shipping location?

A: Xiamen

Q: What is the payment method?

A: T/T

Q: Why choose us?

A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
