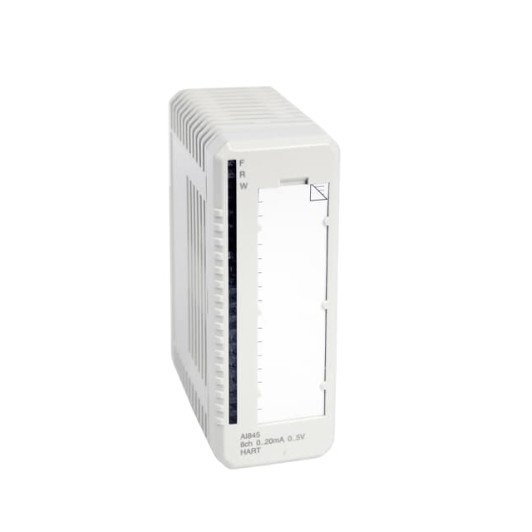

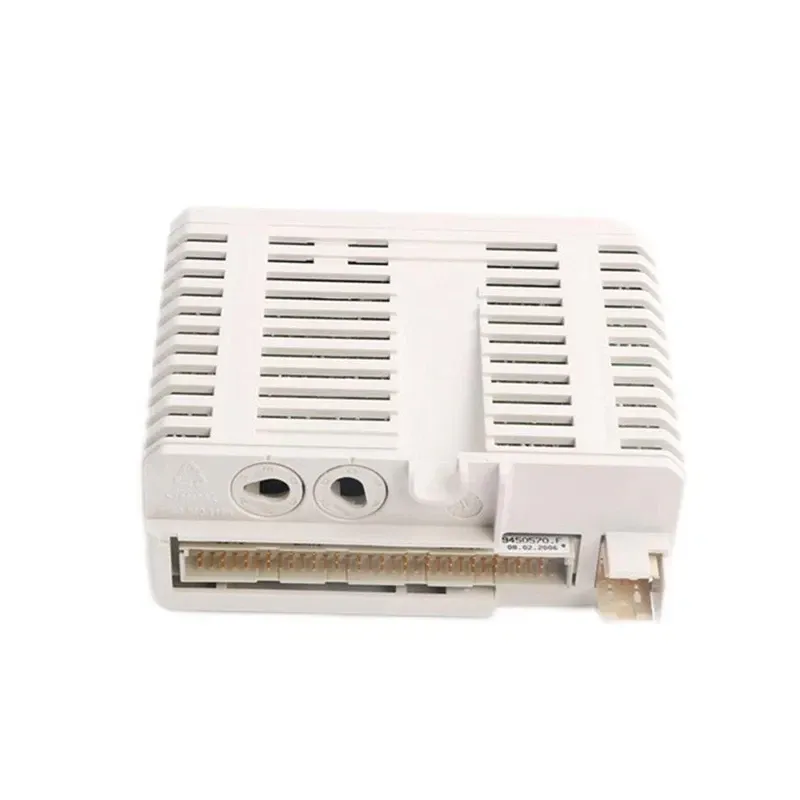

ABB AI845 3BSE023675R1 Analog Input S/R HART 8 Ch
Item Number:AI845 3BSE023675R1
Brand: ABB
Lead Time: In stock
Description:Analog Input S/R HART 8 ch
Payment: T/T
Product Description
ABB AI845 3BSE023675R1 Analog Input Module for single or redundant applications. The module has 8 channels. Each channel can be either a voltage or current input when MTU TU844 or TU845 is used, when other MTUs are used all channels become voltage or current inputs.
The voltage and current input is able to withstand an overvoltage or undervoltage of at least 11 V d.c. The input resistance for voltage input is greater than 10 M ohm and the input resistance for current input is 250 ohm.
The module distributes the external HART compatible transmitter supply to each channel. This adds a simple connection to distribute the supply to 2-wire or 3-wire transmitters. The transmitter power is supervised and current limited.
Function & Features
- 8-Channel Analog Inputs: AI845 current: 0... 20 mA or 4... 20 mA. Voltage: 0... 5 V or 1... 5 V. Single-ended, unipolar inputs for signal processing.
- Single or redundant operation: AI845 can be configured for single or redundant operation.
- Isolation: AI845 isolates each of 8 channels from ground, ensuring noise immunity and signal integrity.
- Current-limited transmitter power supply: Each channel of AI845 includes a current-limited transmitter power supply to protect connected field devices from overcurrent.
Specifications
|
Parameter |
Specification |
| Model | AI845 |
| Odering Number | 3BSE023675R1 |
|
Resolution |
12-bit |
|
Input Impedance |
Voltage Input: 10 MΩ, Current Input: 250 Ω |
|
Under/Over Range |
0-20 mA & 0-5 V Input: 0% / +15%, 4-20 mA & 1-5 V Input: -12.5% / +15% |
|
Temperature Drift |
Max 50 ppm/°C |
|
Input Filter (Rise Time 0-90%) |
290 ms |
|
Update Cycle Time |
10 ms |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:Analog Input Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
