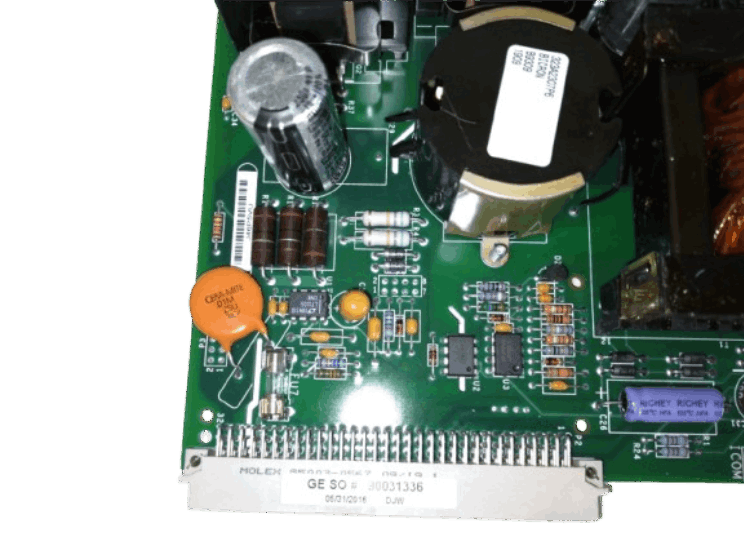

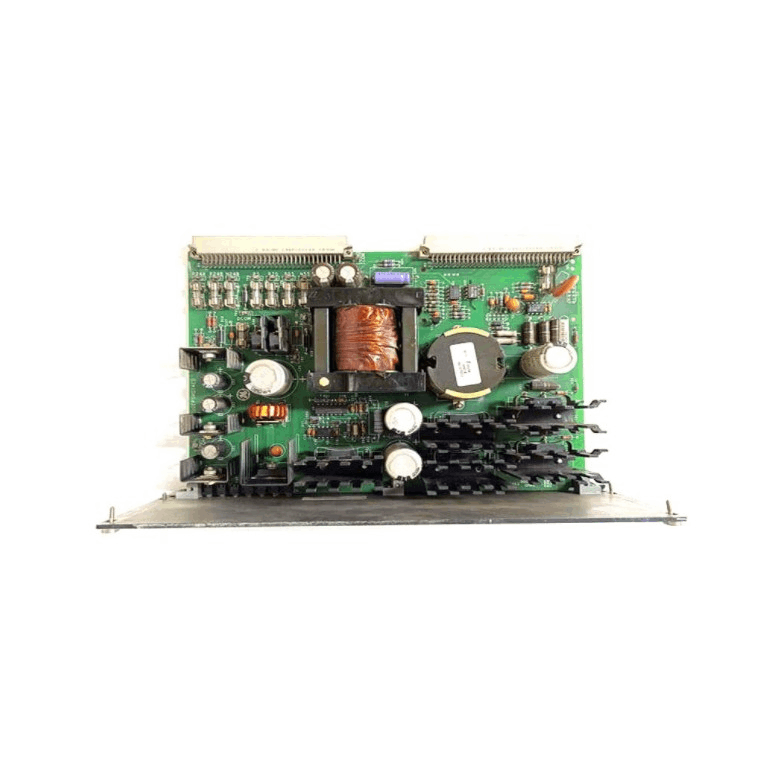

General Electric IS200EPSMG1A Exciter Power Supply Module
Item Number: IS200EPSMG1A
Brand:GE
Lead Time: In stock
Description:Exciter Power Supply Module
Payment: T/T
Product Description
The IS200EPSMG1A is an excitation power module developed by GE specifically for the EX2100 turbine control system. It serves as a core power supply unit within the EX2100 excitation control system. This module consists of a buck regulator and a push-pull inverter, and, together with the EPSMG2 module (equipped with the EPSD daughter card) used in the regulator control system, forms a complete power solution for the EX2100 platform.
Function&Features
The IS200EPSMG1A converts the 125V DC input provided by the Power Distribution Module (PDM) into multiple isolated outputs:
Control power: +5V DC (logic circuits)
Analog power: ±15V DC (sensor/signal conditioning)
Drive power: +24V DC (I/O modules, fans, demagnetization/crowbar modules)
Special applications: +70V DC (terminal board contact wet voltage)
IS200EPSMG1A provides working power for EX2100 controller (M1/M2/C), including demagnetization module (EDEX), ground detection module, magnetic field voltage/current sensor, etc.
Specifications
|
Parameter Category |
Details |
|
Input Characteristics |
|
|
Rated Input Voltage |
125V DC (±10%) |
|
Input Current |
Max 2.5A (at full load) |
|
Output Characteristics |
|
|
+5V DC Output |
5.0V±1% / 10A |
|
±15V DC Output |
±15V±2% / 2A each |
|
+24V DC Output |
24V±5% / 5A |
|
+70V DC Output |
70V±3% / 0.5A |
Maintenance suggestions: Regularly check the output voltage ripple (±15V needs to be ≤1%), connector contact resistance
FAQ
Q: What is the brand?
A:GE
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping lovation?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
