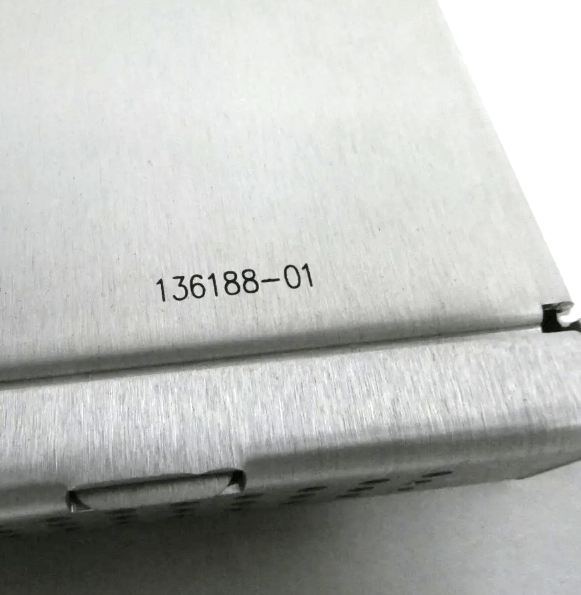

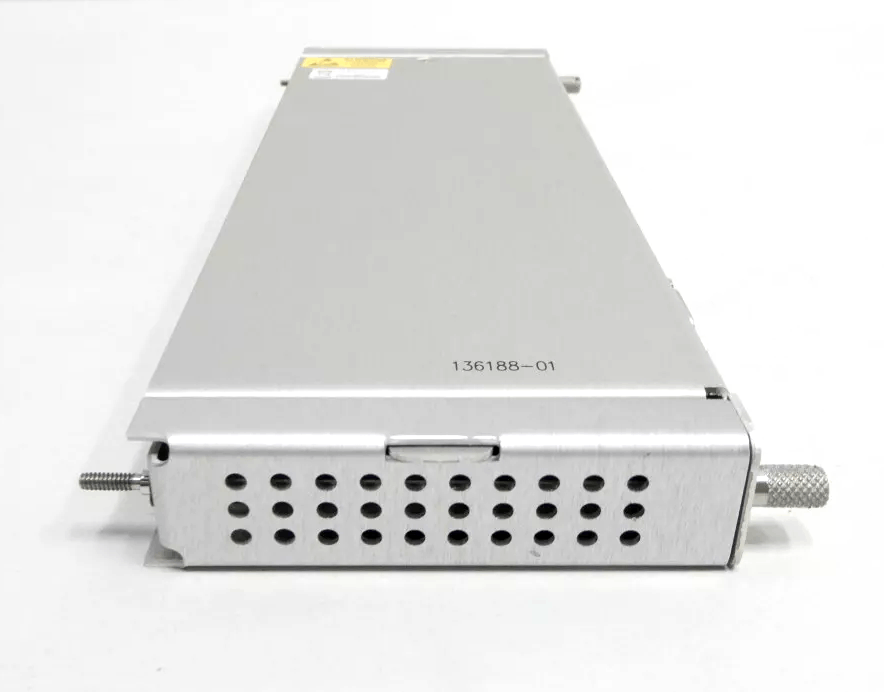

Bently Nevada 3500/92-03-01-00 136188-01 Ethernet/RS232 ModbusI/O Module
Item Number:3500/92-03-01-00 136188-01
Brand:Bently Nevada
Lead Time: In stock
Description:Ethernet/RS232 ModbusI/O Module
Payment: T/T
Product Description
The 3500/92-03-01-00 136188-01 is a communication gateway module specifically designed for the Bently Nevada 3500 monitoring system. It connects machinery health data (vibration, temperature, alarms, etc.) to the control system via Ethernet TCP/IP and serial interfaces (RS232/RS422/RS485). Its core function is to integrate various data monitored by the 3500 rack (such as measurements, equipment status, and alarm information).
Function & Features
- The 3500/92-03-01-00 136188-01 module supports the Modicon Modbus protocol (via serial communication), the Modbus/TCP protocol (for TCP/IP Ethernet communication), and the proprietary Bently Nevada protocol (for communication with the 3500 rack configuration and software package).
- The 3500/92-03-01-00 136188-01 module supports two communication methods: Ethernet (RJ45 connector, suitable for 10BASE-T star-configured Ethernet networks) and serial (RS232/RS422/RS485).
- The 3500/92-03-01-00 136188-01 inherits the features of the original 3500/90 module and replaces the main value Modbus registers with the configurable Modbus register utility.
Specifications
1. General Specifications
|
Category |
Parameter |
Specification |
|
Model Number |
Part Number |
3500/92-03-01-00 (136188-01) |
|
Type |
Module Type |
|
|
Mounting |
Installation |
3500 Series Rack |
2. Communication Specifications
|
Protocols |
Interface |
Details |
|
Modbus RTU |
RS232/RS422/RS485 |
|
|
Modbus TCP |
Ethernet (RJ45) |
Modern SCADA/IIoT systems |
|
Bently Nevada |
Ethernet (RJ45) |
3500 Configuration & Data Acquisition |
3. Electrical Specifications
|
Parameter |
Value |
|
Power Consumption |
5.0W (RS232/RS422) |
|
5.6W (RS485) |
|
|
24V DC |
|
|
Update Time |
≤1 second |
FAQ
Q: What is the brand?
A:Bently Nevada
Q: What is the type?
A:Ethernet/RS232 ModbusI/O Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Loading comments...
