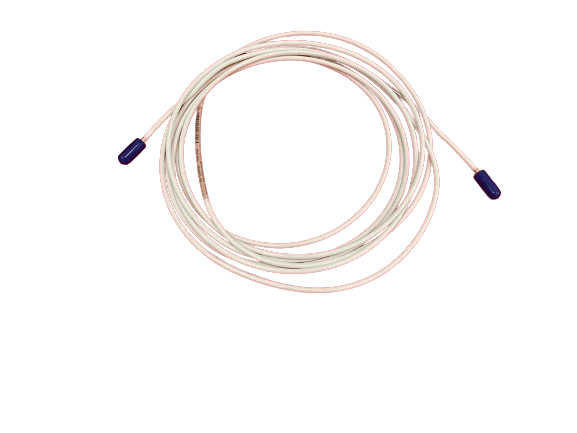

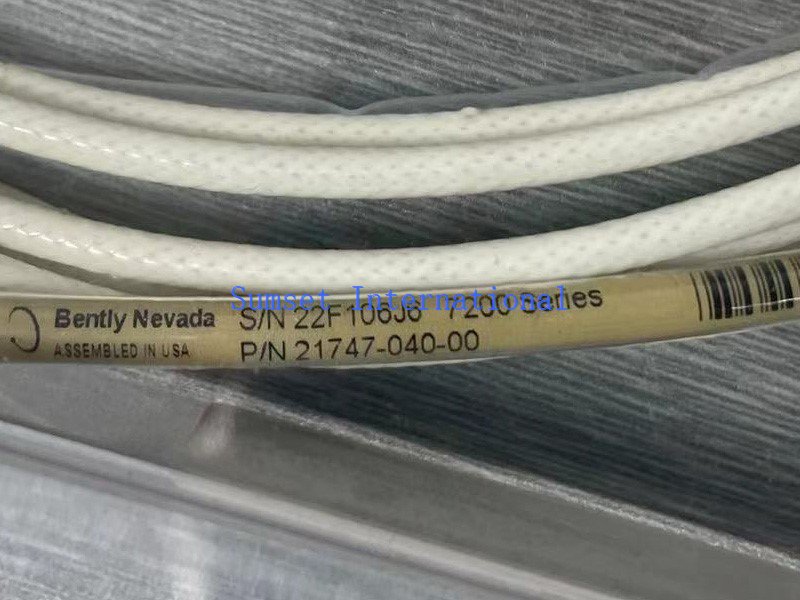

Bently Nevada 21747-040-00 Proximitor Probe Extension Cable
Item Number:21747-040-00
Brand:Bently Nevada
Lead Time: In stock
Description:Proximitor Probe Extension Cable
Payment: T/T
Product Description
Bently Nevada 21747-040-00 is a 4 meter proximity probe extension cable manufactured by Bently Nevada and designed for use with proximity sensor systems, specifically the Bently Nevada 7200 5mm/8mm Series proximity sensors. The cable can be used in systems that convert the gap between the probe tip and the target to a corresponding voltage, supporting a frequency range of 0Hz (DC) to 10kHz, effectively measuring static and dynamic distances.
Function & Features
Extended distance: The main function of the Bently Nevada 21747-040-00 proximity probe extension cable is to extend the distance between the proximity probe and the measurement system. The probe and measurement system can be installed according to the specific equipment layout.
Measurement assistance: The Bently Nevada 21747-040-00 proximitor probe extension cable is used in conjunction with a system that can convert gaps into voltages to measure the distance between the probe and the target.
Dynamic and static measurement support: The Bently Nevada 21747-040-00 proximitor probe extension cable supports dynamic and static distance measurement, and can monitor dynamic parameters such as vibration and displacement during machine operation.
Specifications
|
Parameter |
Details |
|
Model |
21747-040-00 |
|
Series |
3300XL |
|
Type |
Proximitor Probe Extension Cable |
|
Frequency Response |
0 Hz (DC) to 10 kHz |
|
Cable Length |
4.00 meters (157 in) |
|
Armor Option |
Without Armor |
|
Weight |
1 kg |
|
INPUT - Power |
-17.5 Vdc to -26 Vdc at 12 mA maximum consumption |
|
OUTPUT - Calibrated Range |
80 mils (2.0 mm), Begins at approximately 10 mils (0.25 mm) from probe face |
|
Operating Temperature - Proximitor |
-60°F to +212°F (-51°C to +100°C) |
|
Operating Temperature - Probe and Extension Cable |
-30°F to +350°F (-34°C to +177°C) |
