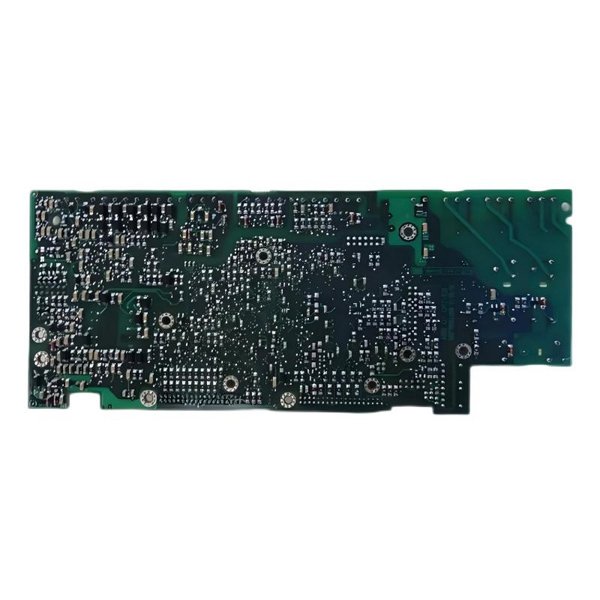

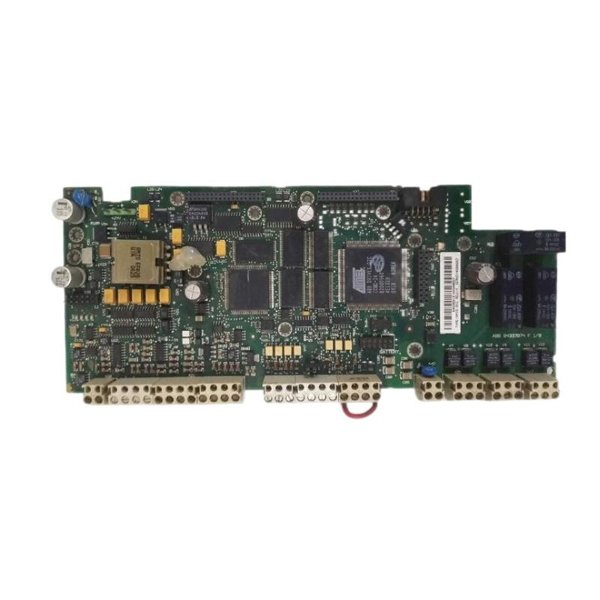

ABB RMIO-01C 64538012 Control Board

The ABB RMIO-01C 64538012 is a versatile and intelligent control board developed as part of ABB’s drive system accessories. It acts as a Regulator and I/O board primarily used in ACS800 drive series. The RMIO-01C is responsible for managing drive control logic, signal interfaces, and communication with field devices. It includes essential analog and digital I/O channels, integrates control functionalities, and handles feedback and reference signals.

This module is critical in ensuring precision control of motor operations, protection features, and system integration. The RMIO-01C simplifies both system configuration and maintenance by consolidating the drive’s regulatory and interfacing roles into a single intelligent board.

Designed to be compact and rugged, this board operates in demanding environments, offering reliable performance for applications ranging from heavy-duty machinery to water processing systems.

Product Parameters

Product Applications

The RMIO-01C plays a vital role in a variety of industrial automation and process control setups, including:

• Industrial Automation

  Used in precision motor control for conveyor belts, robotic arms, and machining tools.

• Pumps and Fans

  Ensures accurate regulation of motor speed and pressure in HVAC and water treatment applications.

• Cranes and Lifts

  Provides reliable signal handling for hoisting systems and elevators.

• Mining and Metal Processing

  Deployed in drives that operate crushers, mills, and material conveyors.

• Oil & Gas Facilities

  Integrated with drives managing compressor and pump stations.

• Marine and Offshore

  Used in propulsion and auxiliary motor systems under harsh marine conditions.

Product Advantages

• Integrated Control and I/O

  Combines motor control logic and signal interfaces in one compact unit.

• High Signal Precision

  Offers reliable analog and digital signal processing for sensitive operations.

• Fieldbus Compatibility

  Ready for integration with PROFIBUS, Modbus, CANopen, and more through expansion.

• Compact Size

  Ideal for space-limited cabinets and panels without sacrificing functionality.

• Drive-Specific Optimization

  Optimized for seamless operation with ACS800 series and related ABB drives.

• Reduced System Complexity

  Reduces the need for external PLCs or signal converters in simple automation tasks.

• Quick Setup and Commissioning

  Works with ABB DriveWindow for fast configuration and diagnostics.

• Energy Efficiency Support

  Helps implement energy-saving control strategies through precise feedback management.

Frequently Asked Questions (FAQ)

Q1: What ABB drives are compatible with the RMIO-01C?

A1: It is mainly used with ABB ACS800 drives and compatible variants in low-voltage drive systems.

Q2: Does RMIO-01C support both analog and digital I/O?

A2: Yes, it supports multiple analog inputs/outputs and digital I/O channels.

Q3: Can it be replaced without removing the entire drive?

A3: The RMIO-01C can be accessed and replaced via the drive’s internal control slot.

Q4: Does it support fieldbus communication?

A4: Yes, but it requires a separate extension module for each specific protocol.

Q5: What diagnostic functions does it offer?

A5: It monitors I/O signal status, drive faults, and environmental conditions for troubleshooting.

Q6: Is this control board programmable?

A6: Configuration is done via ABB’s DriveWindow software rather than direct code programming.

Q7: What protection features are included?

A7: It supports overvoltage, overcurrent, and thermal protection as part of the drive system.

Q8: Can it operate in harsh environments?

A8: Yes, within the recommended temperature and protection standards, especially in IP20 enclosures.

Q9: Does the RMIO-01C store parameters?

A9: It holds configuration parameters related to I/O and control logic, typically backed by drive memory.

Q10: How do I update or configure the RMIO-01C?

A10: Use ABB DriveWindow PC tool with proper connectivity and authorized access credentials.
