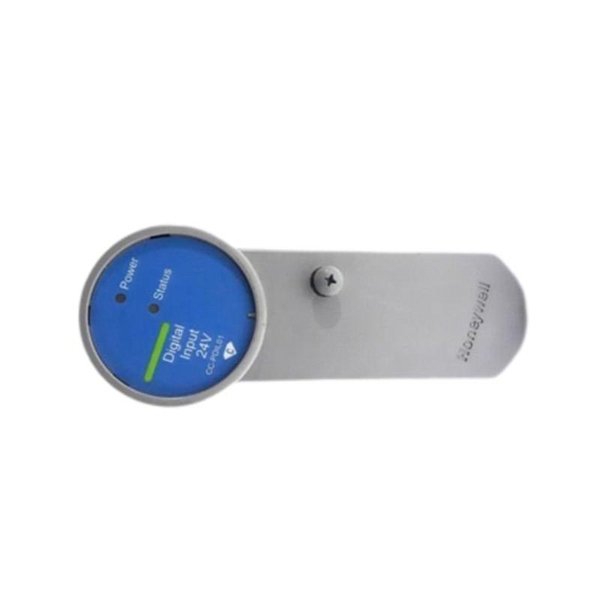

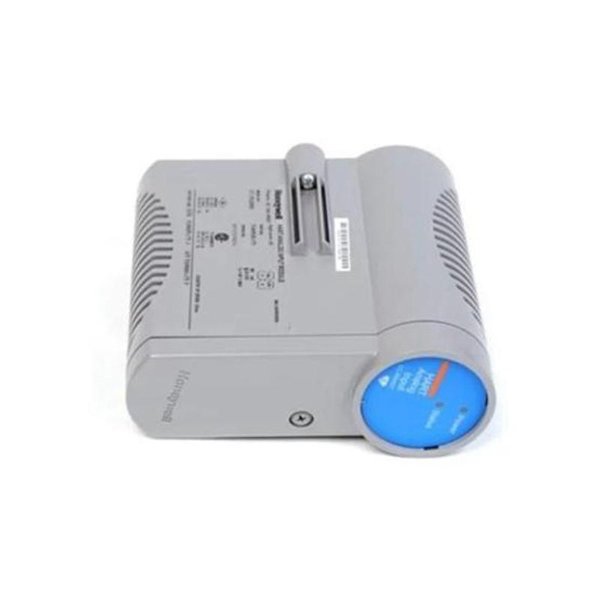

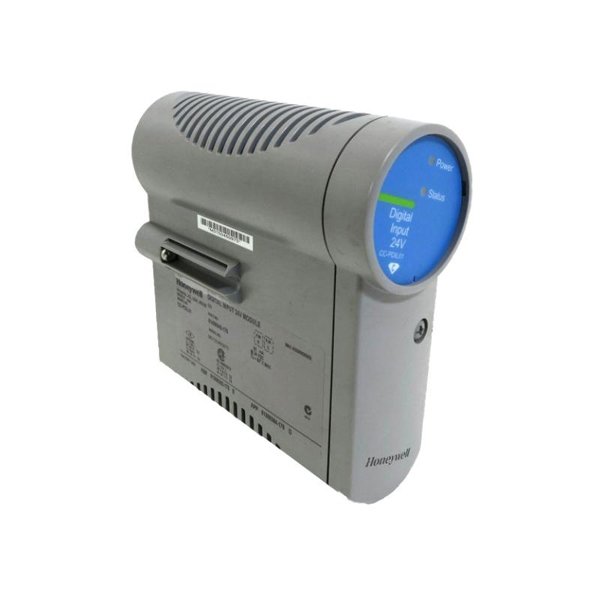

Honeywell CC-PDIS01 51405042-175 Digital Input Module

The Honeywell CC-PDIS01 51405042-175 is a robust and reliable digital input module designed to be integrated into Honeywell’s Experion control systems. This module enables the acquisition and processing of discrete input signals from various field devices such as switches, sensors, and contact closures. It translates these inputs into digital signals that are processed by the control system to monitor and automate industrial processes effectively.

Engineered for high-performance and long-term operational stability, the CC-PDIS01 offers excellent noise immunity and precise signal detection, which is essential for maintaining process integrity in demanding industrial environments. Its compact and modular design facilitates easy installation and system expansion.

Technical Specifications

Product Applications

The CC-PDIS01 digital input module is widely used across various industrial sectors for reliable discrete signal monitoring. Typical applications include:

• Oil and Gas Industry

  Monitoring safety switches, valve positions, and emergency shutdown system inputs.

• Chemical Manufacturing

  Tracking process start/stop signals and safety interlock statuses.

• Power Generation Facilities

  Supervising circuit breaker states, pump operations, and alarm inputs.

• Water and Wastewater Treatment Plants

  Detecting sensor signals for level detection, pump controls, and valve status.

• Food and Beverage Processing

  Monitoring packaging machinery and process control interlocks.

• Pulp and Paper Industry

  Observing equipment statuses and control signals in manufacturing lines.

Product Advantages

• High Input Density

  Supports up to 16 discrete input channels in a single module, optimizing rack space.

• Fast and Reliable Signal Processing

  Ensures real-time digital signal detection with a response time under 10 milliseconds.

• Electrical Noise Immunity

  Galvanic isolation and robust design minimize signal disturbances, ensuring accuracy.

• Visual Diagnostics

  Individual LED indicators for each input provide clear and immediate status information.

• Seamless Integration

  Designed to integrate smoothly with Honeywell Experion control systems, enabling easy scalability.

• Compact and Durable Design

  The module’s small footprint and industrial-grade components guarantee durability in harsh environments.

• Flexible Installation

  Can be mounted on racks or chassis to fit diverse system layouts.

Frequently Asked Questions (FAQ)

Q1: How many digital inputs does the CC-PDIS01 support?

A1: The module supports 16 discrete digital input channels.

Q2: What is the nominal input voltage?

A2: The nominal input voltage is 24 V DC.

Q3: Does the module provide isolation for input signals?

A3: Yes, it provides galvanic isolation between input channels and the power supply.

Q4: What is the typical response time of the module?

A4: The response time is less than 10 milliseconds.

Q5: Is the CC-PDIS01 suitable for use in harsh industrial environments?

A5: Yes, it operates within a temperature range of 0°C to 60°C and withstands industrial humidity levels.

Q6: What kind of mounting options are available for this module?

A6: It can be mounted on racks or chassis, depending on system configuration.

Q7: Are there indicators for monitoring the input status?

A7: Yes, each input channel has an individual LED status indicator.

Q8: Is the CC-PDIS01 compatible with other Honeywell Experion modules?

A8: Yes, it is fully compatible with Honeywell Experion control systems.

Q9: What are typical industries that use this digital input module?

A9: Common industries include oil & gas, chemical, power generation, water treatment, food & beverage, and pulp & paper.

Q10: What certifications does this module have?

A10: The module carries CE, UL, CSA, and RoHS certifications.
