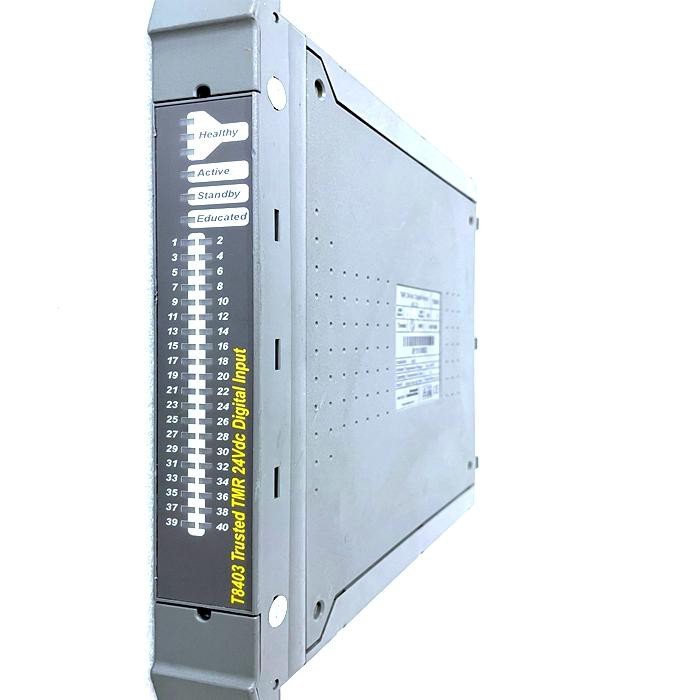

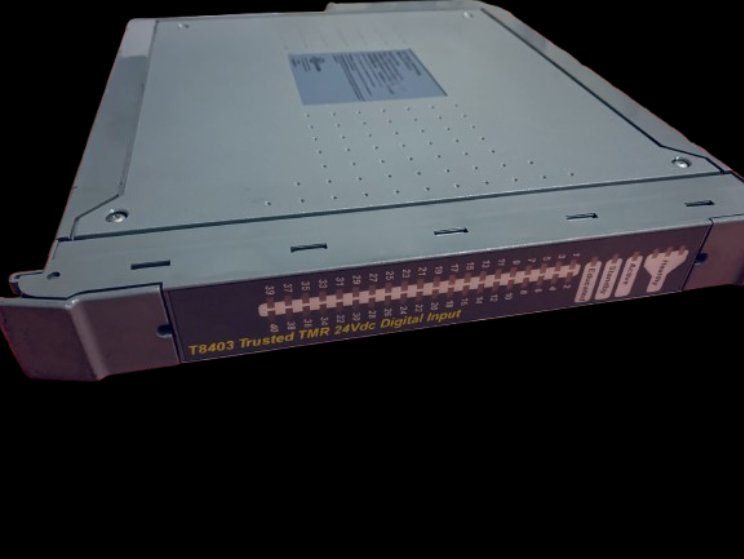

ICS Triplex T8403 Digital Input Module

ICS Triplex T8403 is a 40-channel 24Vdc digital input module. Each field input features three independent front-panel status LEDs. Each input's display mode (off, green, red, flashing green, flashing red) is determined by the input voltage threshold. The T8403's configurable voltage thresholds and LED patterns allow users to customize input measurement and status indication for their application.

Function & Features

• Configurable Voltage Thresholds: The T8403 module measures input voltage and compares it to user-configurable threshold voltages to determine the state of the field input. Each channel can independently set the threshold.

• Line Monitoring and Fault Detection: When a line monitoring device is installed at the field switch, the T8403 module can detect open and short circuit faults in field cables. The line monitoring function can be configured on a per-channel basis.

• SOE Recording: The T8403 features a SOE reporting function with a resolution of 1ms. When an input state changes, it triggers an SOE recording, allowing you to trace the time and sequence of events.

Specifications

channel LED status logic table:

FAQ

Q: What is the brand?

A:ICS Triplex(Rockwell)

Q: What is the type?

A:Digital Input Module

Q: What is the warranty?

A: 1 year

Q: Where is the shipping location?

A: Xiamen

Q: What is the payment method?

A: T/T
