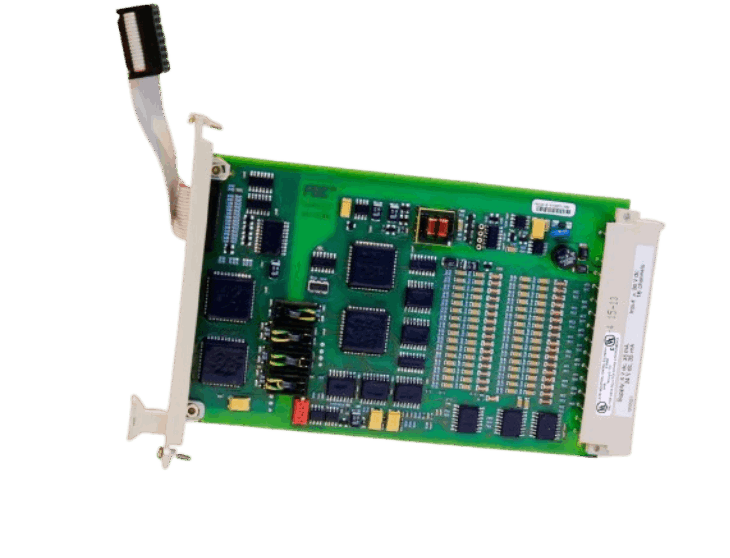

Honeywell 10105/2/1 Fail-safe High-density Analog Input Module
Item Number: 10105/2/1
Brand:Honeywell
Lead Time: In stock
Description:Fail-safe High-density Analog Input Module
Payment: T/T
Product Description
Honeywell 10105/2/1 is a Fail-safe High-density Analog Input Module in the FSC system. It provides 16 analog inputs (0-4 V) and 1 external voltage readback input (0-4 V). It meets the AK5 safety level (Fail-safe design). All channels share an isolated analog 0V common terminal. It supports sensor signals such as thermocouples and PT100, but they must first be converted into standard current/voltage signals through a dedicated transmitter.
Function & Features
Signal conversion
- The 10105/2/1 supports two ways to convert field signals (0-20 mA) to module-usable levels (0-4 V), either using the FTA-T-14 field terminal assembly module or the 10105/A/1 analog input conversion module placed on the I/O backplane programming connector.
- Special analog signals such as thermocouples and PT-100 can be connected to the module for use after being converted to 0 (4)-20 mA by a dedicated converter and the above conversion module.
Self-test
The 10105/2/1 is fully self-tested by the FSC system CPU, covering absolute accuracy checks, full-scale correct conversion verification, input channel crosstalk detection, channel input filter verification, and internal power supply voltage monitoring.
Specifications
|
Category |
Parameter |
Specification |
|
General |
Type number: |
10105/2/1 (16900) |
|
Approvals: |
CE; TÜV, UL pending |
|
|
Safety class: |
AK1-6 (AK6 in redundant mode) |
|
|
Software versions: |
≥ 500 |
|
|
Space requirements: |
4 TE, 3 HE (= 4 HP, 3U) |
|
|
Power |
Voltage requirements: |
5 Vdc (35 mA) + 24 Vdc (35 mA) |
|
Input |
Number of channels: |
16 |
|
Input range: |
0 to 4.1 V |
|
|
Input resistance: |
> 1 MΩ |
|
|
A/D converter: |
12-bit |
|
|
A/D inaccuracy: |
±1 LSB |
|
|
Module inaccuracy: |
< 0.25% |
|
|
Absolute max. input: |
±36 Vdc (protection) |
|
|
Crosstalk between channels: |
> 60 dB* |
Note on Crosstalk (*)
A step response (0→100%) on one channel shall not influence other channels beyond 2 LSBs, defined as:
FAQ
Q: What is the brand?
A: Honeywell
Q: What is the type?
A:Fail-safe High-density Analog Input Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
