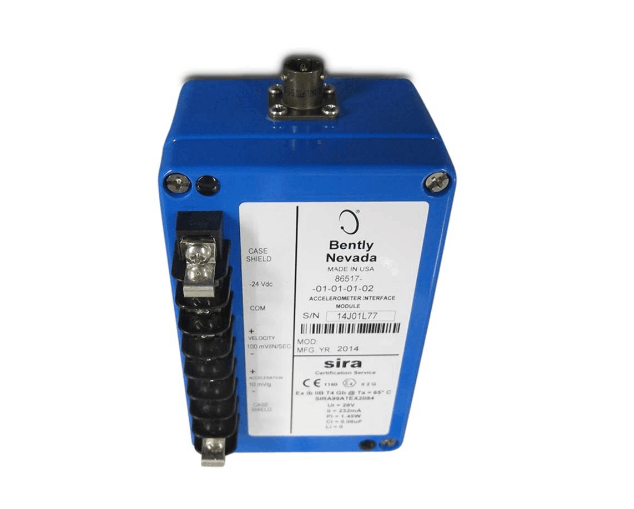

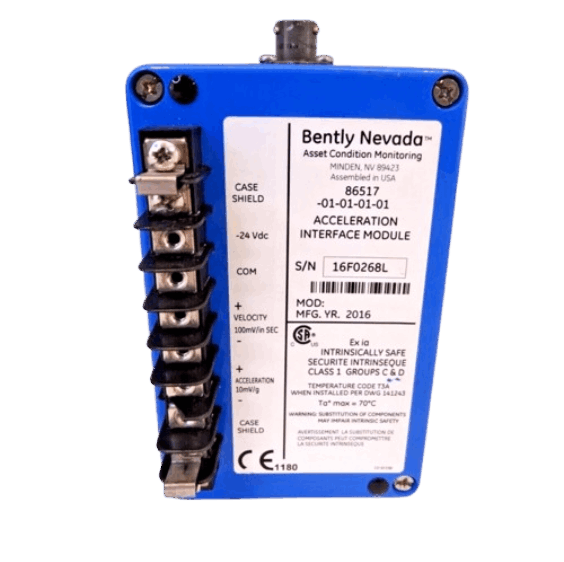

Bently Nevada 86517-01-01-01-01 Accelerometer Interface Module
Item Number: 86517-01-01-01-01
Brand:Bently Nevada
Lead Time: In stock
Description: Accelerometer Interface Module
Payment: T/T
Product Description
Bently Nevada 86517-01-01-01-01 Accelerometer Interface Module is an accelerometer-based sensor system component designed for vibration monitoring in aero-derivative gas generators and gas turbines. It is designed for use with the Bently Nevada 3300 Series 3300/95 filter module/vibration monitor. It can also be used with specially modified 3300 Series monitors (such as the 3300/15 and 3300/25).
Note: Velocity signal is the most commonly used measure of vibration severity and is therefore the primary signal that the 86517-01-01-01-01 module most often outputs to monitoring systems (such as the 3300 monitor) for alarm and protection purposes.
Function & Features
- Output Signal Configuration: The 86517-01-01-01-01 module supports both single-ended and balanced dual-wire outputs for acceleration (+ACCEL/-ACCEL) and velocity (+VELOCITY/-VELOCITY) signals.
- 12th-Order Bandpass Filtering: The Bently 86517-01-01-01-01 uses a 12th-order bandpass filter (a cascaded 6th-order low-pass filter and a 6th-order high-pass filter with a Butterworth response) to filter the acceleration signal. The filter cutoff frequency is determined by the BB option and is not field programmable.
- Acceleration-Velocity Signal Integration: The 86517-01-01-01-01 converts the filtered acceleration signal into a velocity signal with a sensitivity of 100 mV/in/s (peak) (or 3.94 mV/mm/s (peak)).
Specifications
|
Category |
Parameter |
Value |
|
Bently Nevada |
86517Accelerometer interface module | 86517-01-01-01-01 |
|
Velocity Output |
Accuracy |
±5.0% of calculated velocity from an ideal input |
|
Condition |
In the passband of the bandpass filter |
|
|
Temperature |
at 77°F (25°C) |
|
|
Filters |
Type |
6th Order Butterworth |
|
Rolloff |
-36 dB/octave |
|
|
Attenuation at Corner |
-3 dB ±0.5 dB |
|
|
Filter Options |
High Pass / Low Pass Pairs |
25 Hz / 350 Hz 40 Hz / 300 Hz 100 Hz / 560 Hz |
|
Connectors |
Accelerometer Input |
MS-3112-8-3P |
|
Power & Signal Output |
8 lug terminal block |
|
|
Dimensions |
Height |
3.00 inches (76.2 mm) |
|
Width |
3.25 inches (82.6 mm) |
|
|
Length |
5.50 inches (139.7 mm) |
FAQ
Q: What is the brand?
A:Bently Nevada
Q: What is the type?
A: Accelerometer Interface Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
