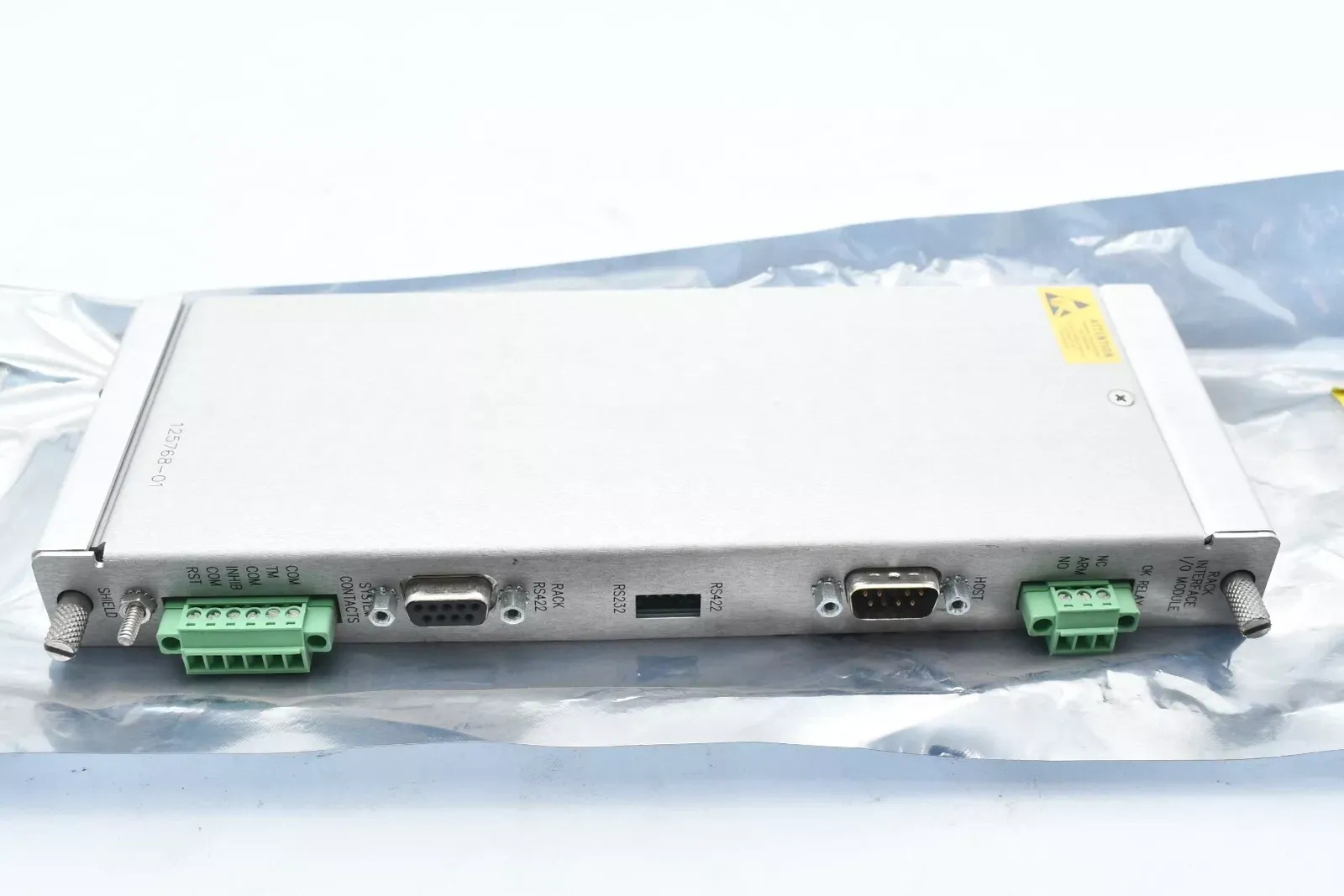

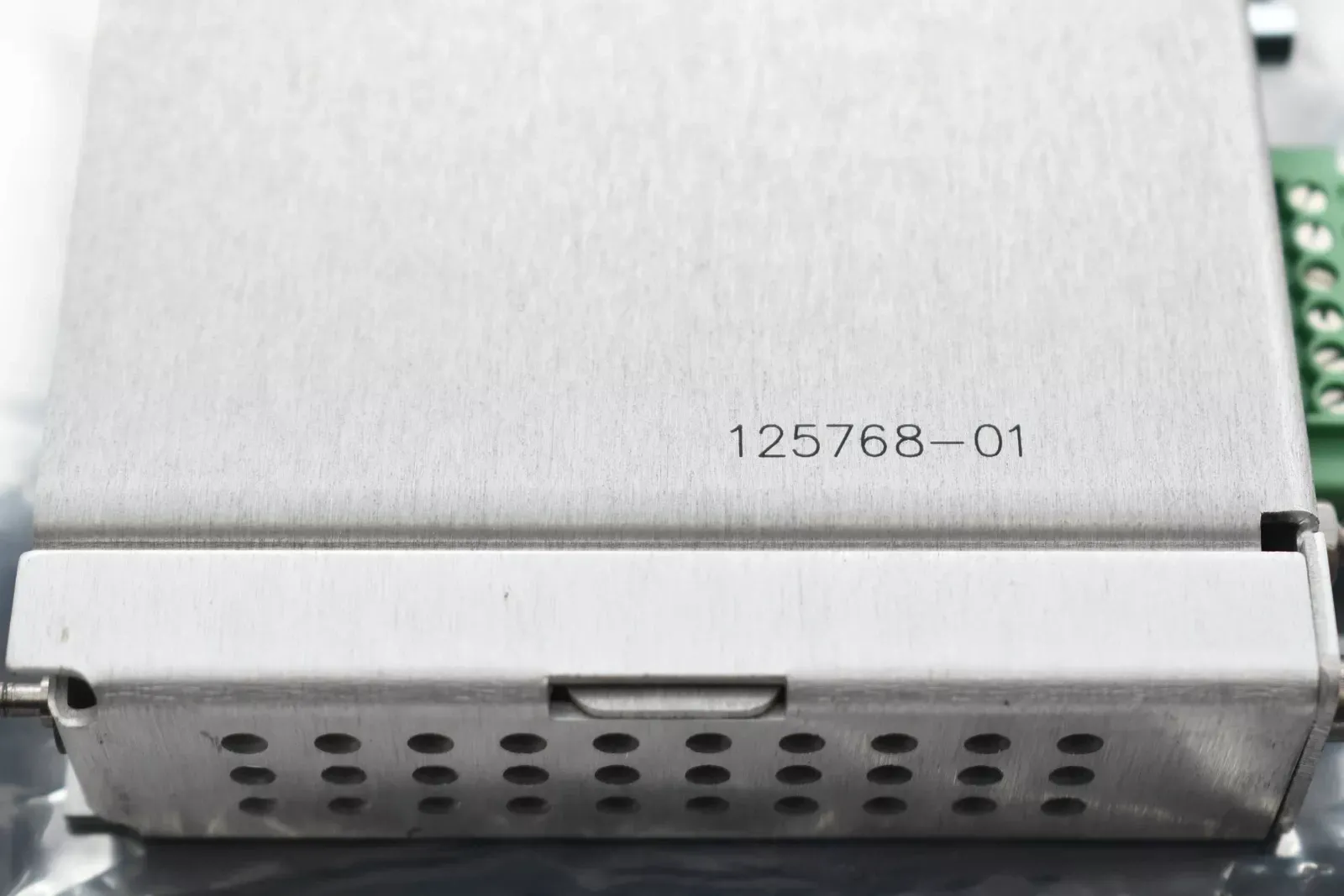

Bently Nevada 3500/20-01-02-00 125768-01 RIM I/O Module

Bently Nevada 3500/20-01-02-00 125768-01 The Rack Interface Module (RIM) is the primary interface to the 3500 rack and supports a proprietary protocol for configuring the rack and retrieving mechanical information. The RIM must be installed in slot 1 of the rack (near the power supply). It supports compatible Bently Nevada external communications processors such as TDXnet, TDIX, and DDIX.

Although the RIM provides certain common functions to the entire rack, it is not part of the critical monitoring path and has no impact on the normal operation of the overall monitoring system. One RIM is required per rack. For Triple Modular Redundancy (TMR) applications, the 3500 system requires the TMR version of the RIM.

Fuctions & Features

• Rack Configuration and Information Retrieval: The 125768-01 configures the 3500 rack through a proprietary protocol and retrieves mechanical information, allowing users to set up the rack system and understand equipment operating data.

• External Communications Support: The 125768-01 can work with external communication processors such as TDXnet, TDIX and DDIX to achieve data exchange and communication with other systems or equipment.

• Special Features for TMR Applications: In TMR applications, in addition to all the functions of the standard RIM, the 125768-01 TMR RIM also performs "Monitor Channel Comparison". The 3500 TMR configuration uses the settings specified in the monitoring options for monitoring voting. The TMR RIM continuously compares the outputs of three (3) redundant monitors.

Specification
