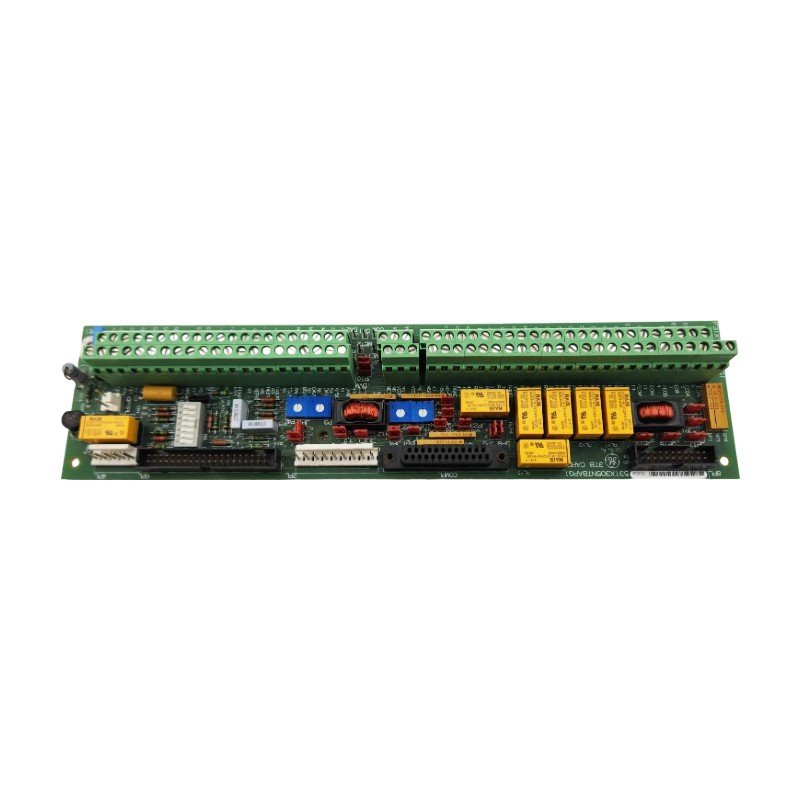

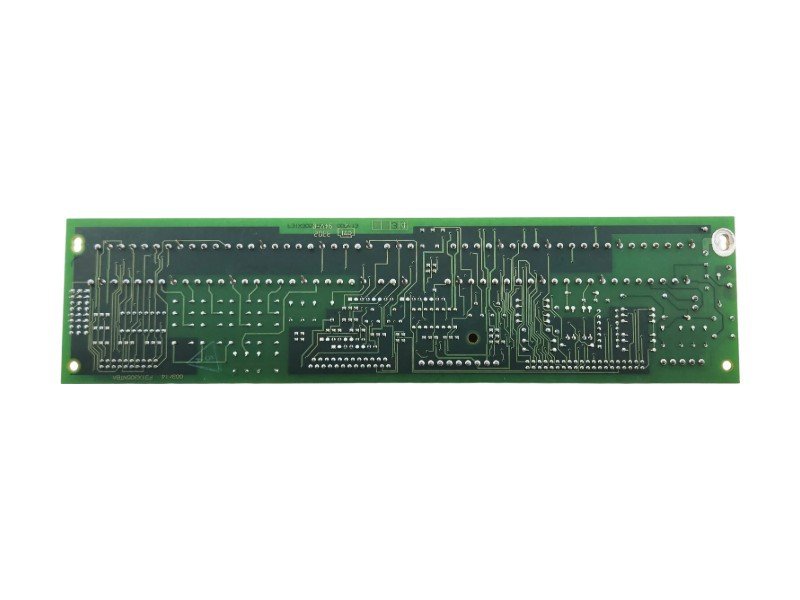

General Electric 531X305NTBAPG1 Terminal Board
Item Number:531X305NTBAPG1
Brand: GE（General Electric）
Lead Time: In stock
Description:Terminal Board
Payment: T/T
Product Description
GE 531X305NTBAPG1 is a terminal board (NTB/3TB model) located in the drive (or exciter) cabinet. It provides connections for most external signal-level input/output (I/O) and passive interface circuits. This terminal board connects to connectors from the drive control board, power board, another terminal board, and external devices.
This terminal board has a total of seven Form A and Form C relay outputs and four potentiometers.
Function & Features
- Encoder Interface: The 531X305NTBAPG1 provides a differential A-Quad-B encoder interface with a marker channel. A jumper allows the interface to be configured for either +5V or +15V encoders.
- Specialized Inputs: The 531X305NTBAPG1 also includes special-purpose digital inputs such as RESET and CONTROL ON.
- Relay Outputs: The 531X305NTBAPG1 provides a total of seven relay outputs, which can be either Form A (normally open) or Form C (changeover contacts).
Specifications
| Item | Value |
|---|---|
| Product Model | 531X305NTBAPG1 |
| Product Type | NTB/3TB General - purpose Terminal Board |
| Installation Location | Drive (or Exciter) Cabinet |
| Core Function | Act as the main external I/O interface of the system |
| General Inputs | 12 general - purpose digital input points |
| Plugs |
-6PL, 8PL (Drive Control Board) -2PL, 4PL (Power Supply Board) -COMPL (3TB Terminal Board) |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
