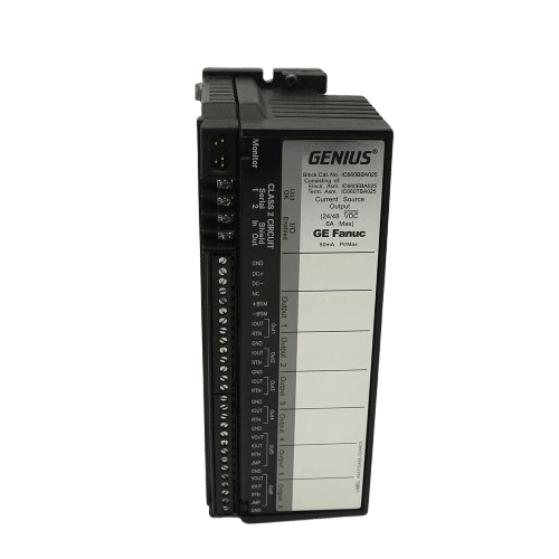

General Electric IC660BBA025 Current–source Analog 6 Output Blocks
Item Number:IC660BBA025
Brand: GE
Lead Time: In stock
Description:Current–Source Analog 6 Output Blocks
Payment: T/T
Product Description
The GE IC660BBA025 is a 24/48 VDC powered 6-channel current source analog output module designed to drive 4~20 mA current loop devices. Its output channels 5 and 6 can be configured as voltage output mode, with the same functionality as the 115 VAC/125 VDC version (IC660BBA105), only the power supply specifications are different. Voltage mode configuration is only supported on channels 5 & 6, and requires external high impedance loads.
Function & Features
- The IC660BBA025 contains 6 output circuits, and channels 5 and 6 can be used for additional voltage applications.
- The module provides power for all circuits, eliminating the need to power the 4-20mA signal separately, and each output can control and power a 4-20mA current loop.
- The IC660BBA025 is equipped with dedicated digital outputs to drive a bus switching module (BSM) when the module is installed in a redundant bus cable system.
- The IC660BBA025 can set the output to hold the last state or default state and circuit scaling function, which can convert the output signal to engineering unit value.
Specifications
|
Parameter |
Specification |
|
Model |
IC660BBA025 |
|
Block to Block Isolation |
1500 V for one minute |
|
Heat Dissipation |
12 Watts maximum |
|
115VAC block power |
-Power supply voltage: 93–132 VAC -Maximum current: 250mA -Frequency/ripple: 47–63 Hz -Power supply dropout time: 1 cycle |
|
125VDC block power |
-Power supply voltage: 105–145 VDC -Maximum current: 140mA -Frequency/ripple: 10% max. ripple -Power supply dropout time: 10mS min. |
|
24/48VDC block power |
-Power supply voltage: 18–56 VDC -Maximum current: 600mA -Ripple: 10% max. -Power supply dropout time: 10mS min. |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Current–Source Analog 6 Output Blocks
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
