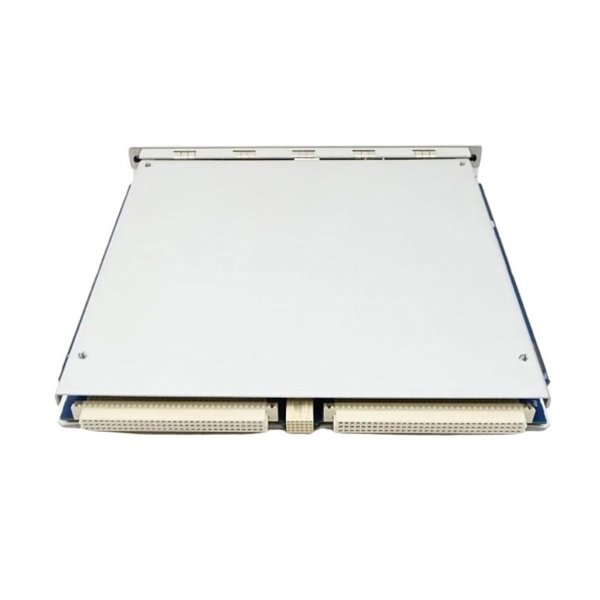

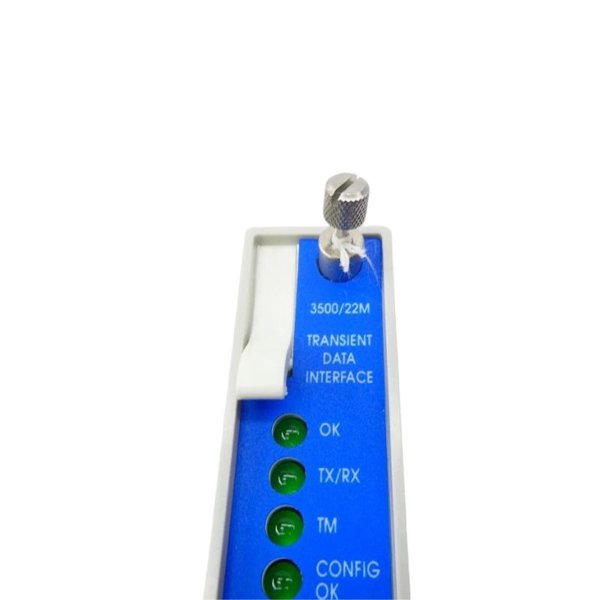

Bently Nevada 3500/22M 149986-02 Transient Data Interface Module

The Bently Nevada 3500/22M 149986-02 Transient Data Interface Module is a high-performance interface module designed for monitoring, recording, and analyzing transient and high-speed vibration data in rotating machinery. It serves as a critical component within the 3500 Machinery Monitoring System, facilitating the collection of precise transient signals and delivering real-time insights to improve machine reliability and reduce unplanned downtime.

This module is engineered to capture dynamic events such as shaft bursts, rubs, and high-frequency mechanical anomalies. Its design integrates seamlessly with the Bently Nevada 3500/22M series, providing deterministic data acquisition and high-fidelity transient analysis. The 149986-02 module supports enhanced diagnostics and predictive maintenance strategies for critical industrial machinery in oil & gas, power generation, petrochemical, and manufacturing sectors.

Product Parameters

Product Applications

The 3500/22M 149986-02 module is utilized in critical machinery monitoring and protection applications:

• Turbomachinery Monitoring – Captures transient events in gas turbines, steam turbines, and compressors.

• Rotating Equipment Diagnostics – Detects high-frequency vibrations, bearing faults, and rotor anomalies.

• Process Safety & Reliability – Interfaces with machinery protection systems to prevent catastrophic failures.

• Offshore & Refining Operations – Monitors pumps, compressors, and drives in harsh environments.

• Power Generation – Supports transient data acquisition for generators, turbines, and auxiliary equipment.

• Predictive Maintenance – Provides high-resolution data for trend analysis and early fault detection.

Product Advantages

• High-Fidelity Data Acquisition – Captures transient signals with minimal latency and high accuracy.

• Seamless System Integration – Fully compatible with Bently Nevada 3500/22M monitoring chassis.

• Enhanced Diagnostics – Supports detailed analysis of transient events and machinery dynamics.

• Rugged Industrial Design – Reliable performance in extreme industrial environments.

• EMI and Noise Immunity – Shielded inputs ensure data integrity in electrically noisy areas.

• Supports Predictive Maintenance – Early detection of potential issues reduces unplanned downtime.

FAQ

1. What type of signals can the 3500/22M 149986-02 capture?

   It captures vibration, displacement, velocity, and acceleration signals from machinery sensors.

2. How many input channels does the module have?

   It provides 4 differential input channels per module.

3. What is the frequency range for signal capture?

   The typical frequency response is 0.5 Hz to 20 kHz.

4. What is the maximum sampling rate?

   Up to 50 kHz per channel for high-resolution transient monitoring.

5. Is the module compatible with other 3500 series modules?

   Yes, it integrates seamlessly with the 3500/22M chassis and other 3500 modules.

6. How is EMI minimized?

   The module uses shielded inputs and a grounded chassis to maintain signal integrity.

7. Can this module be used for predictive maintenance?

   Yes, it provides high-fidelity transient data that supports trend analysis and early fault detection.

8. Does it support remote monitoring?

   Yes, data can be accessed via the 3500 system network for remote analysis.

9. Can multiple 3500/22M modules be used together?

   Yes, modules can be stacked or networked to monitor multiple machinery points.

10. Is configuration required for each sensor input?

    Yes, input scaling and sensor type must be configured within the 3500 system for accurate data capture.
