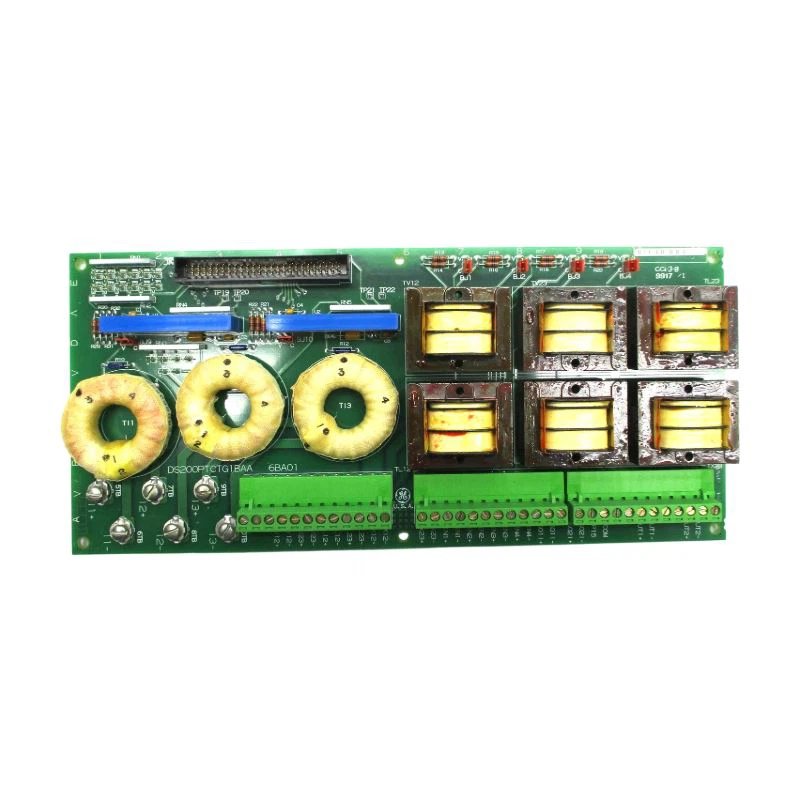

General Electric DS200PTCTG1B DS200PTCTG1BAA Potential And Current Transformer
Item Number:DS200PTCTG1B DS200PTCTG1BAA
Brand: GE（General Electric）
Lead Time: In stock
Description:Potential And Current Transformer
Payment: T/T
Product Description
GE DS200PTCTG1B/DS200PTCTG1BAA is a Potential and Current Transformer Board used in excitation control systems. This board receives high-voltage, high-current signals from voltage transformers and current transformers and scales them down to low-level signals within the control system.
Function & Features
- Voltage Input: The DS200PTCTG1B/DS200PTCTG1BAA supports multiple three-phase CT voltage signal inputs, including one input for line-side voltage.
- Current Input: The DS200PTCTG1B/DS200PTCTG1BAA supports one three-phase CT current signal from the generator stator. The regulator only requires the A and C phase currents; the B phase current input is not used.
- Input Requirements: Voltage input requires a secondary current input of at least 5 A. Software modifications are available for secondary inputs as low as 3 A nominal. Each current step requires less than 1 VA.
Specifications
|
Parameter |
Value |
|
Product Model |
DS200PTCTG1B DS200PTCTG1BAA |
|
Product Type |
Potential And Current Transformer |
| Current Transformer Inputs |
-Quantity: At least 1 set of three phases (Phase A, Phase B, Phase C) -Required Phases: Phase A and Phase C (Phase B is connected but not used for control calculation) -Rated Secondary Current: 5 A (standard) -Nominal Current: As low as 3 A (adjusted via software) -Load Requirement: < 1 VA (per phase) |
| Voltage Transformer Inputs |
-Quantity: Multiple sets of three -phase voltage inputs- Includes: A dedicated set of line |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
