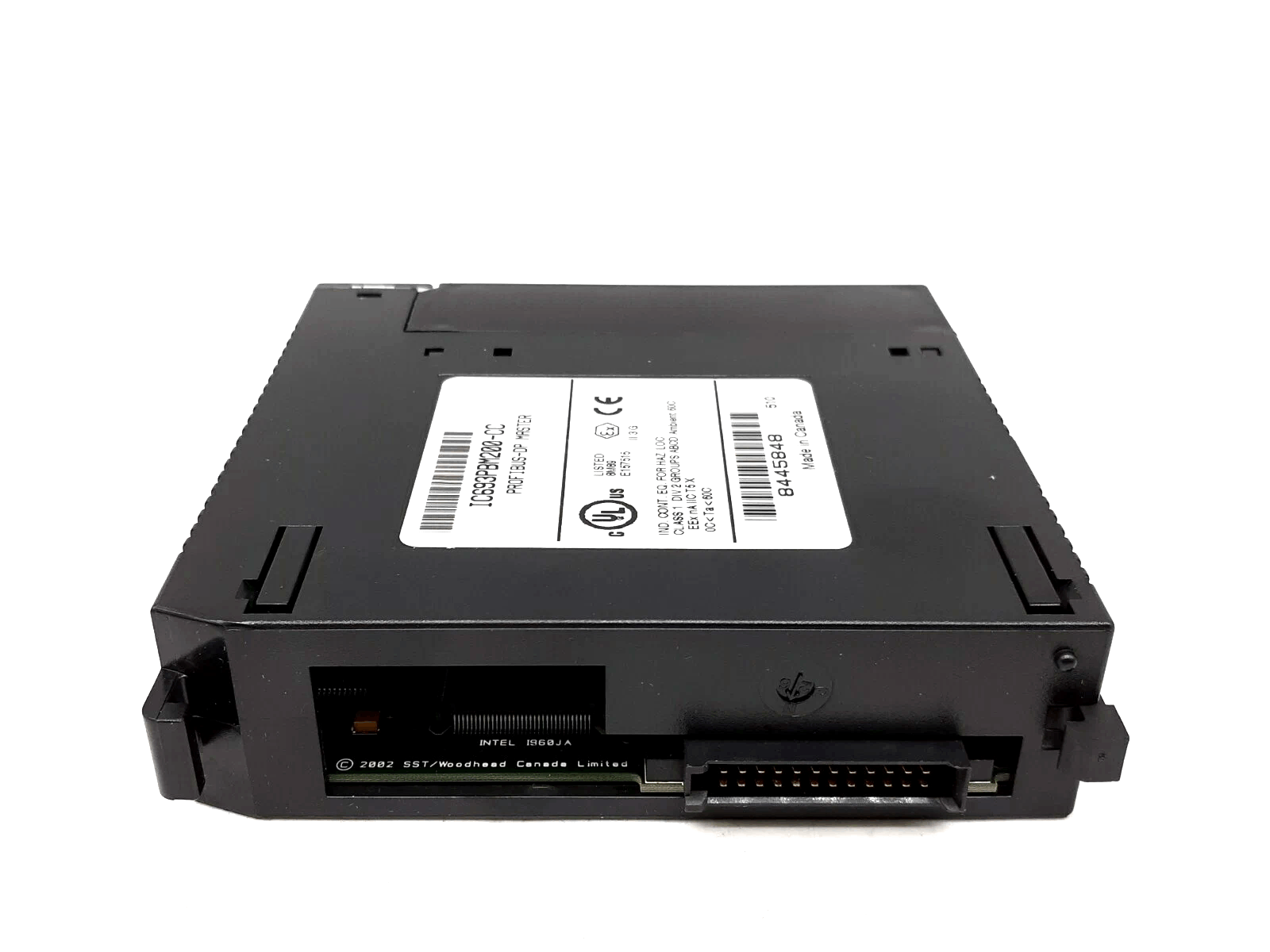

General Electric IC693PBM200 Profibus DP Master Module
Item Number: IC693PBM200
Brand: GE
Lead Time: In stock
Description: Profibus DP Master Module
Payment: T/T
Product Description
GE IC693PBM200 is a 90-30 series Profibus DP Master Module, which is used to enable the host Series 90-30 CPU to send and receive I/O data with the PROFIBUS-DP network. Users are required to have basic knowledge of Series 90-30 PLC and PROFIBUS-DP protocol. Configuration depends on a specific version of programming software.
Function & Features
- Data rate and slave support: IC693PBM200 supports all standard data rates (9600-12M), can connect up to 125 DP slaves, each slave supports 244 bytes input and 244 bytes output.
- Operating mode: IC693PBM200 supports Sync and Freeze modes.

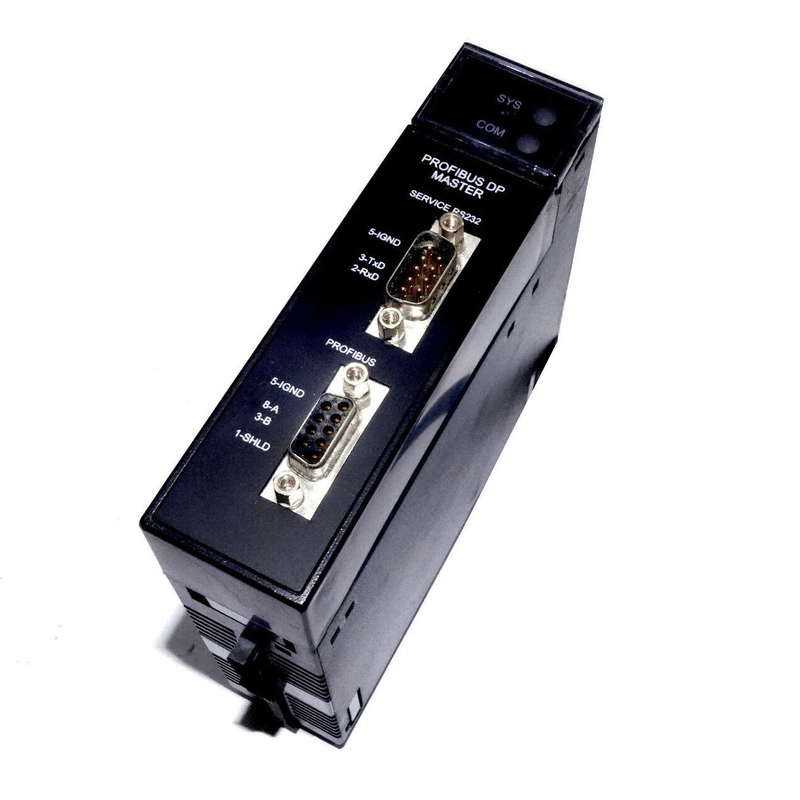

- Firmware update: IC693PBM200 provides RS-232 serial service port, which can be used to upgrade firmware, facilitate function iteration and problem fixing.
- Configuration restrictions: IC693PBM200 can only be configured using ME Logic Developer PLC programming software 3.0 and higher.
Specifications
|
Parameter |
Details |
|
Catalog Number |
IC693PBM200 |
|
Description |
Series 90-30 Master module for PROFIBUS DP networks |
|
Configuration Software |
Proficy™ Machine Edition Logic Developer version 2.6 or later |
|
CPU Firmware Requirement |
Version 8.00 or later |
|
Mounting Location |
Any Series 90-30 baseplate slot (CPU/expansion/remote), except Slot 1 of modular CPU baseplate |
|
Environmental Ratings |
Operating Temperature: 0°C to 60°C Storage Temperature: -40°C to 85°C |
|
Backplane Power Consumption |
450mA @ 5VDC (typical) |
|
Supported Data Rates |
9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M, and 12M Baud (all standard) |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Profibus DP Master Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
