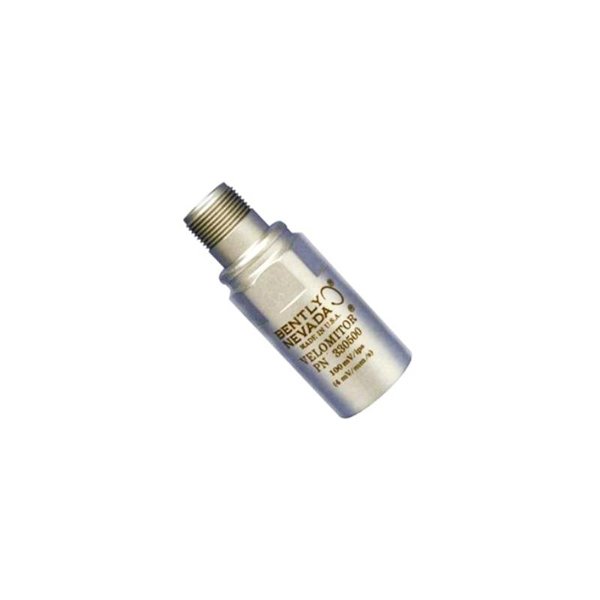

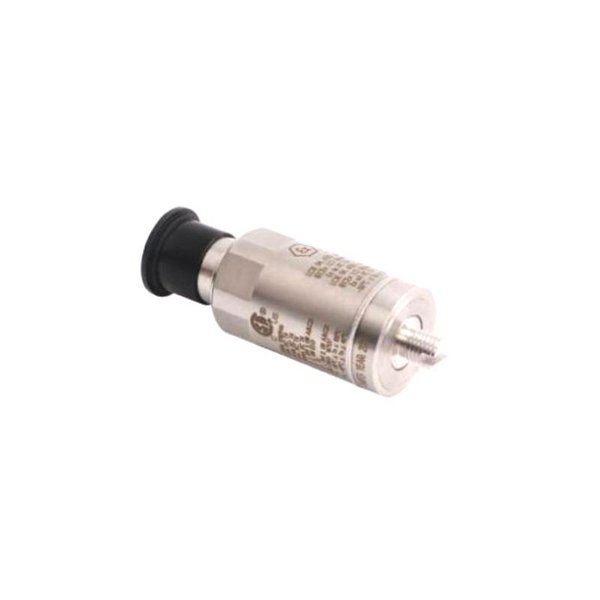

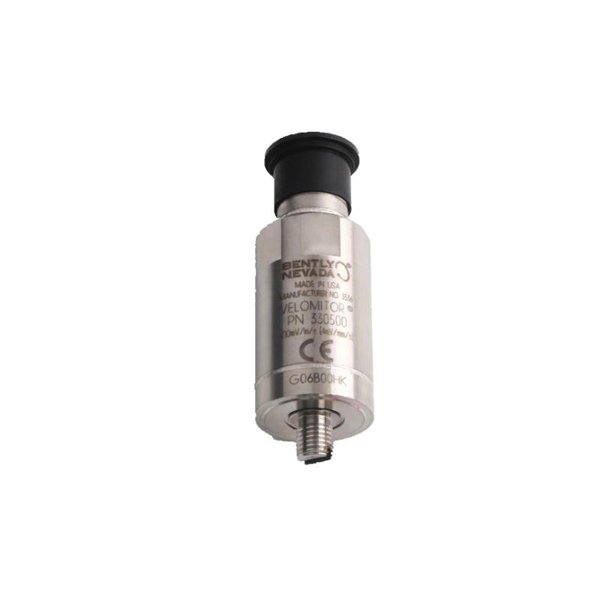

Bently Nevada 330500-00-02 Velomitor Piezo-Velocity Sensor
Manufacturer:Bently Nevada
Product Number:330500-00-02
Product Type:Velomitor Piezo-Velocity Sensor
Origin:USA
Diameter:25.3 mm
Weight:0.142 kg
Views:63
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330500-00-02 Velomitor Piezo-Velocity Sensor is a robust, solid-state vibration sensor designed for industrial machinery monitoring. Utilizing integrated piezoelectric technology, it accurately measures absolute bearing housing, casing, or structural vibrations. Its design eliminates moving parts, enhancing durability and reliability in harsh environments.
Product Specifications
| Parameter | Details |
| Model Number | 330500-00-02 |
| Sensor Type | Piezoelectric Velocity Sensor |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Range | 4.5 Hz to 5 kHz ±3.0 dB or 6.0 Hz to 2.5 kHz ±0.9 dB |
| Output Signal | Voltage (proportional to velocity) |
| Power Supply | Self-powered (two-wire system) |
| Mounting Thread | M8 x 1 |
| Mounting Torque | 46 kg·cm (40 in-lb) max |
| Connector Type | 2-pin MIL-C-5015, hermetically sealed |
| Housing Material | 316L Stainless Steel |
| Operating Temperature | -40°C to +125°C (-40°F to +257°F) |
| Dimensions | Height: 63.2 mm (2.49 in); Diameter: 25.3 mm (0.995 in) |
| Weight | 0.142 kg (0.31 lb) |
| Approvals | CSA, ATEX, IECEx |
Product Applications
The 330500-00-02 sensor is ideal for monitoring:
-
Rotating machinery with rolling-element bearings
-
Bearing housing and casing vibrations
-
Structural health monitoring
-
Predictive maintenance programs
Product Advantages
-
Solid-State Design: Eliminates mechanical degradation and wear.
-
Wide Frequency Range: Captures a broad spectrum of vibration data.
-
High Sensitivity: Provides accurate velocity measurements.
-
Durable Construction: 316L stainless steel housing resists corrosion.
-
Hermetically Sealed: Ensures reliability in harsh environments.
-
Easy Installation: Compact size and standard mounting threads.
