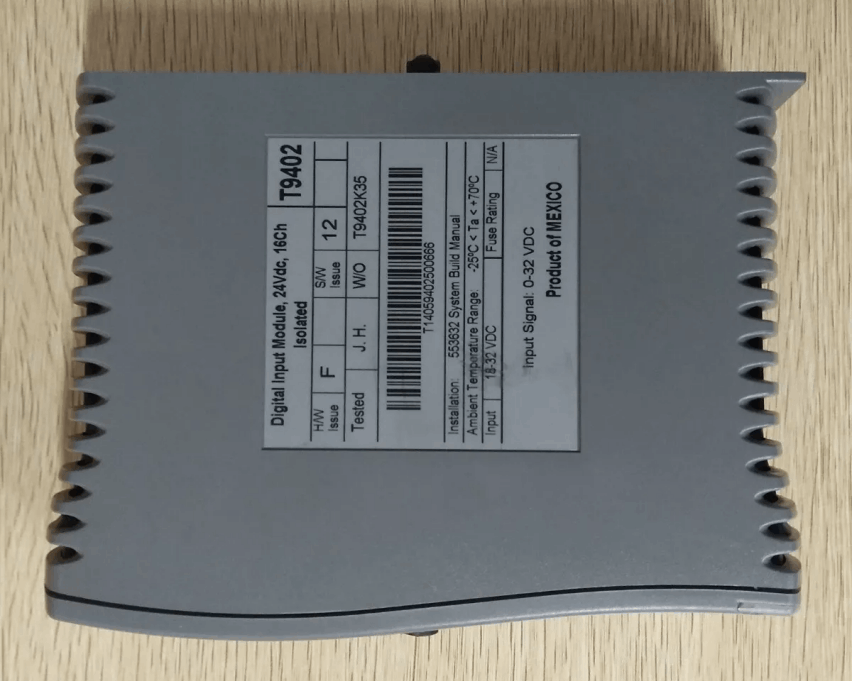

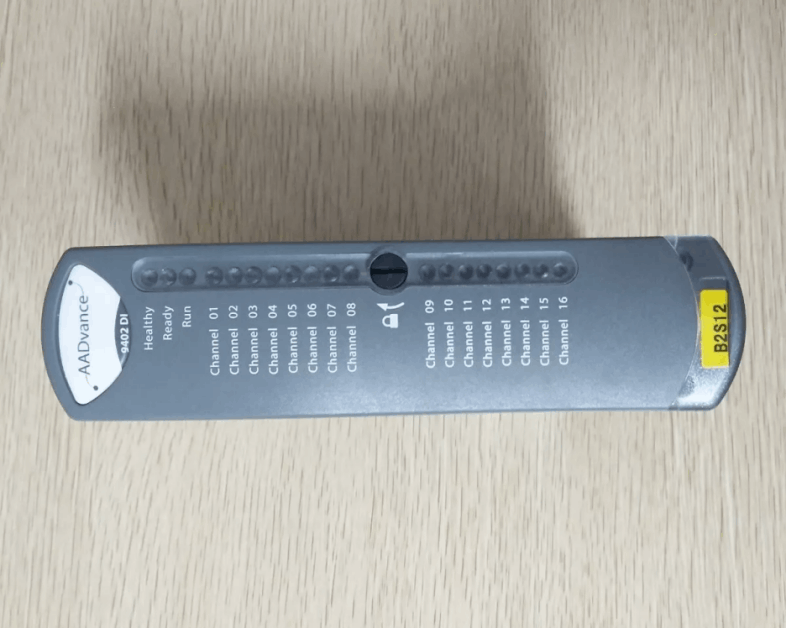

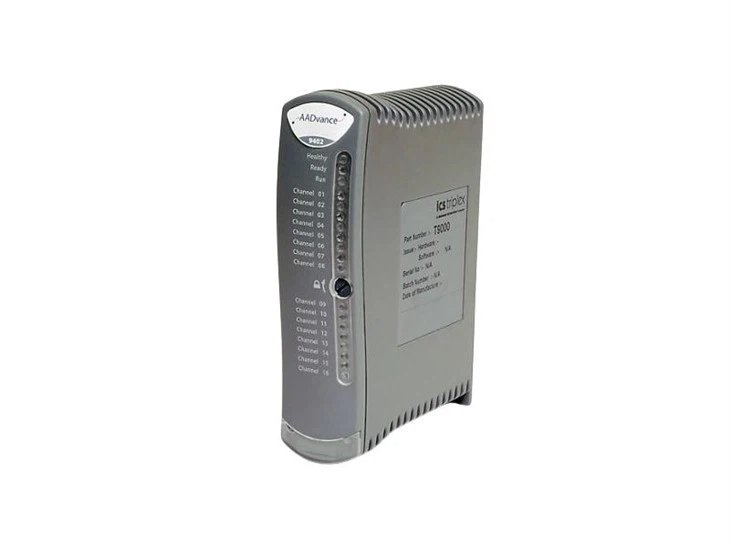

ICS Triplex T9402 Digital Input Module

ICS Triplex T9402 is an important component in the ICS Triplex Trusted TMR (Triple Modular Redundancy) safety system. It adopts a triple architecture (TMR) to sample and process input signals through three independent channels to ensure that the system can still provide correct outputs in the event of a fault. A 2/3 voting rule is used to ensure that the system can still infer the correct input state even if one channel fails. A test mode is supported to verify the operating status of the input channels. The following is a detailed description of the module.

Features

• Triple Architecture (TMR - Triple Modular Redundancy): T9402 is equipped with 3 independent channels, each channel independently samples and processes input signals. This architecture can effectively provide redundancy and fault tolerance to ensure the output in the event of a system failure. Even if one or two channels fail, T9402 can still guarantee the correctness of the output results.

• Voting Logic: T9402 uses voting logic (such as 2/3 voting rule) to determine the final output value of each channel. Even if a channel fails, the system can correctly infer the state of each digital input through the input of the remaining two channels.

• Diagnostic Coverage: Provides comprehensive diagnostic coverage to facilitate fault detection and fault isolation. This includes monitoring of individual input channels, power supply status and internal circuits.

• 16 digital input channels: The T9402 provides 16 digital input channels, each of which can be configured as a Normally Open (NO) or Normally Closed (NC) contact. You can configure the appropriate input method in different application environments and choose the contact type according to different needs.

• Test mode: The T9402 supports a test mode, which can be used to verify the operation of the input channels and ensure the normal operation of the system under actual working conditions.

Specification

Safety Accuracy Limit

Sequence of Event Resolution

FAQs

Q: What is the brand?

A:ICS Triplex

Q: What is the type?

A:Digital Input Module

Q: What is the warranty period?

A: 1 year.

Q: What is the product condition?

A: New.

Q: Where is the shipping location?

A: Xiamen.

Q: What is the payment method?

Answer: T/T (Telegraphic Transfer).
