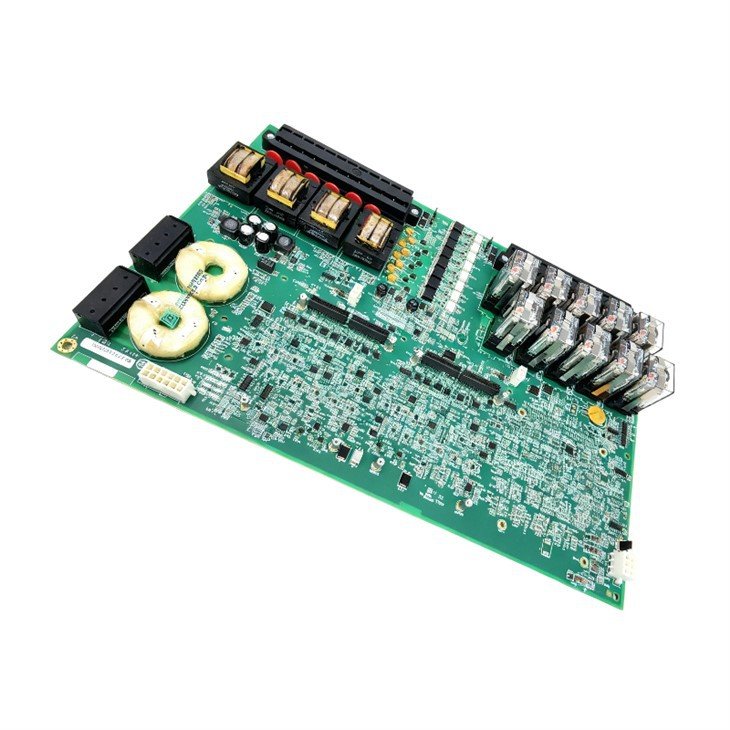

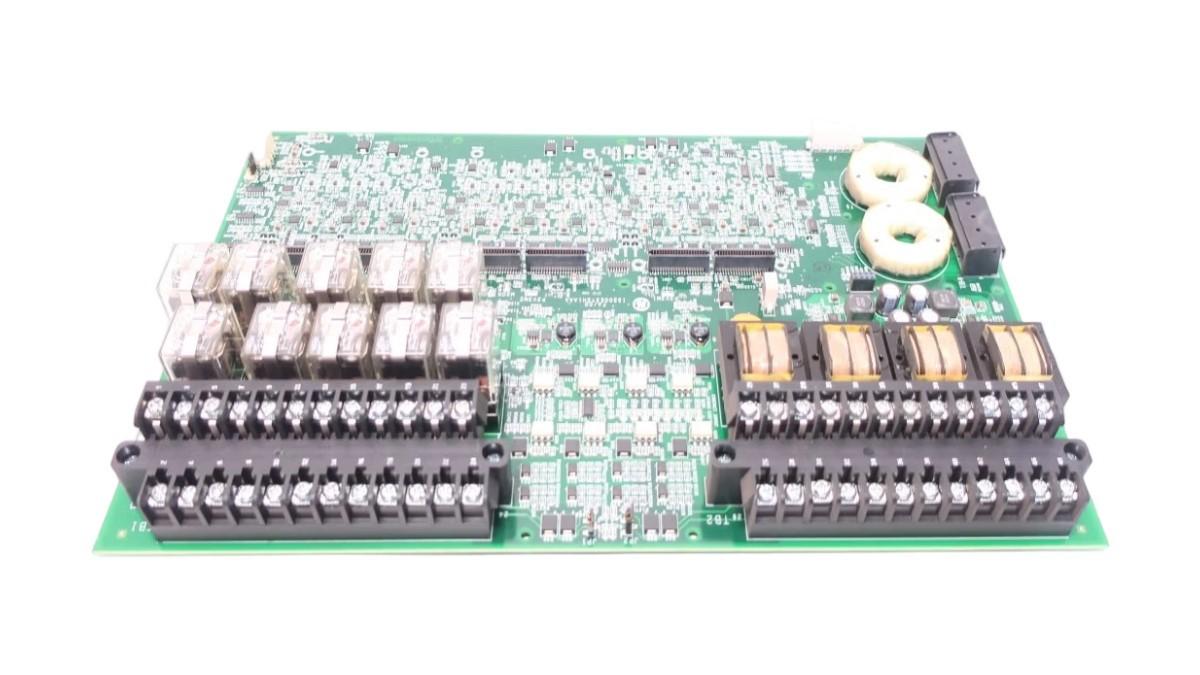

General Electric IS200ESYSH1A Excitation Control System I/O Interface Module
Item Number:IS200ESYSH1A
Brand:GE（General Electric）
Lead Time: In stock
Description:Excitation Control System I/O Interface Module
Payment: T/T
Product Description
GE IS200ESYSH1A is an excitation control system I/O interface module for static and regulator systems. This module connects the exciter's external I/O to the control system and handles most of the system's I/O interface processing. It connects to user I/O via a pluggable screw terminal block and to the excitation system via an HSLA (High-Speed Serial Link) daughter board mounted on the module.
Function & Features
Serial Link: The IS200ESYSH1A communicates with the main control system via the HSLA daughterboard installed on the board.
Independent Power Supply Interfaces: Each of the three sections of the IS200ESYSH1A module (M1, M2, and C) has its own independent power supply interface.
HSLA Daughterboard Function: The HSLA daughterboard provides power to the IS200ESYSH1A, as well as board reset signals for power-on and HSSL initialization.
Specifications
| Parameter | Description |
|---|---|
| Module Model | IS200ESYSH1A |
| Module Name | ESYS (Excitation System I/O Interface) |
| General-Purpose Relays | 4 channels |
| Trip Relays | 2 channels |
| Indicators on HSLA Daughter Board | Green Power-On LEDRed Attention LEDGreen Link LEDYellow TX/RX LED |
| Dimension | 116.84*79.2 mm |
| Weight | 0.69kg |
