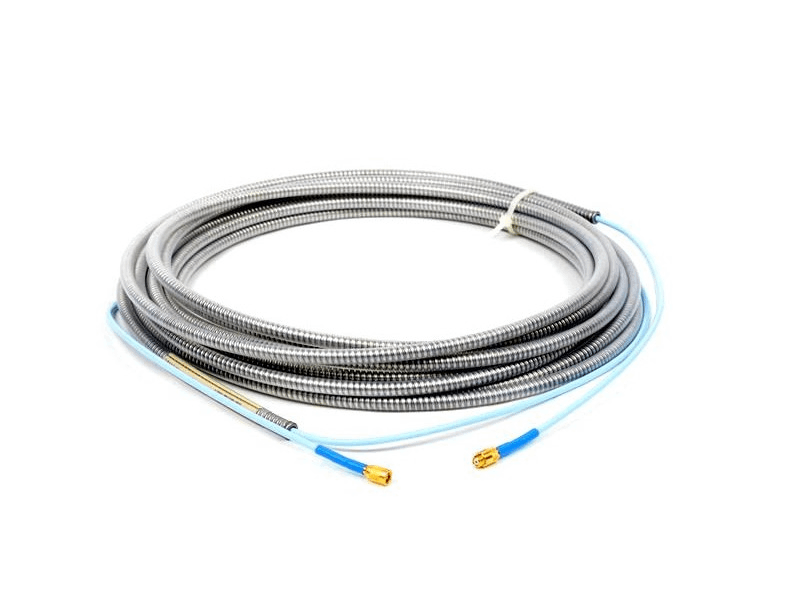

Bently Nevada 330130-080-01-00 3300 XL Extension Cable
Item Number:330130-080-01-00
Brand:Bently Nevada
Price:$1
Lead Time:In stock
Description:3300 XL Extension Cable
Payment: T/T
Product Description
Bently Nevada 330130-080-01-00 is an extension cable for the 3300 XL Series. It is used with the 3300 XL probe and is a companion component to the 3300 XL Series.
330130-080-01-00 provides signal transmission to measure vibration and position of rotating machinery,and supports the optional FluidLoc seal, which prevents fluids such as oil from leaking through the cable. The cable comes standard with silicone tape for connector protection and with standard 3300 XL probes, Proximitor sensors, and ETR Series components.
Function & Features
- The patented CableLoc design of the 330130-080-01-00 cable provides up to 330 N (75 lbf) of pull-out resistance at the cable-to-probe connection, ensuring a secure connection even in high-vibration environments and preventing pull-out.
- FluidLoc Cable Option: The 330130-080-01-00 cable can be equipped with the FluidLoc option, effectively preventing oil and other fluids from leaking out of the machine through the cable's interior.
- ETR (Extended Temperature) Model: The 330130-080-01-00 cable can be used with the ETR extended temperature probe, which is rated up to 260°C (500°F), significantly higher than the 177°C of the standard cable.
- Standard Silicone Tape: The 330130-080-01-00 extension cable comes with silicone tape, which replaces traditional connector boots.
Specifications
|
Parameter |
Details |
|
Part Number |
330130-080-01-00 |
|
Series |
3300XL |
|
Capacitance |
69.9 pF/m (21.3 pF/ft) |
|
0.2 to 1.5 mm² (16 to 24 AWG) |
|
|
Linear Range |
2 mm (80 mils) |
|
Recommended Gap Setting for Radial Vibration |
-9 Vdc [approx. 1.27 mm (50 mils)] |
|
Incremental Scale Factor (ISF) - Standard 5 m or 1 m System |
7.87 V/mm (200 mV/mil) ± 5% including interchangeability error |
|
Incremental Scale Factor (ISF) - Standard 9 m System |
7.87 V/mm (200 mV/mil) ± 6.5% including interchangeability error |
|
Incremental Scale Factor (ISF) - Extended Temperature Range (ETR) for 5 m and 9 m Systems |
7.87 V/mm (200 mV/mil) ± 6.5% including interchangeability error |
|
Product Type |
Extension Cable |
|
Maximum Length |
305 m (1,000 ft) |
