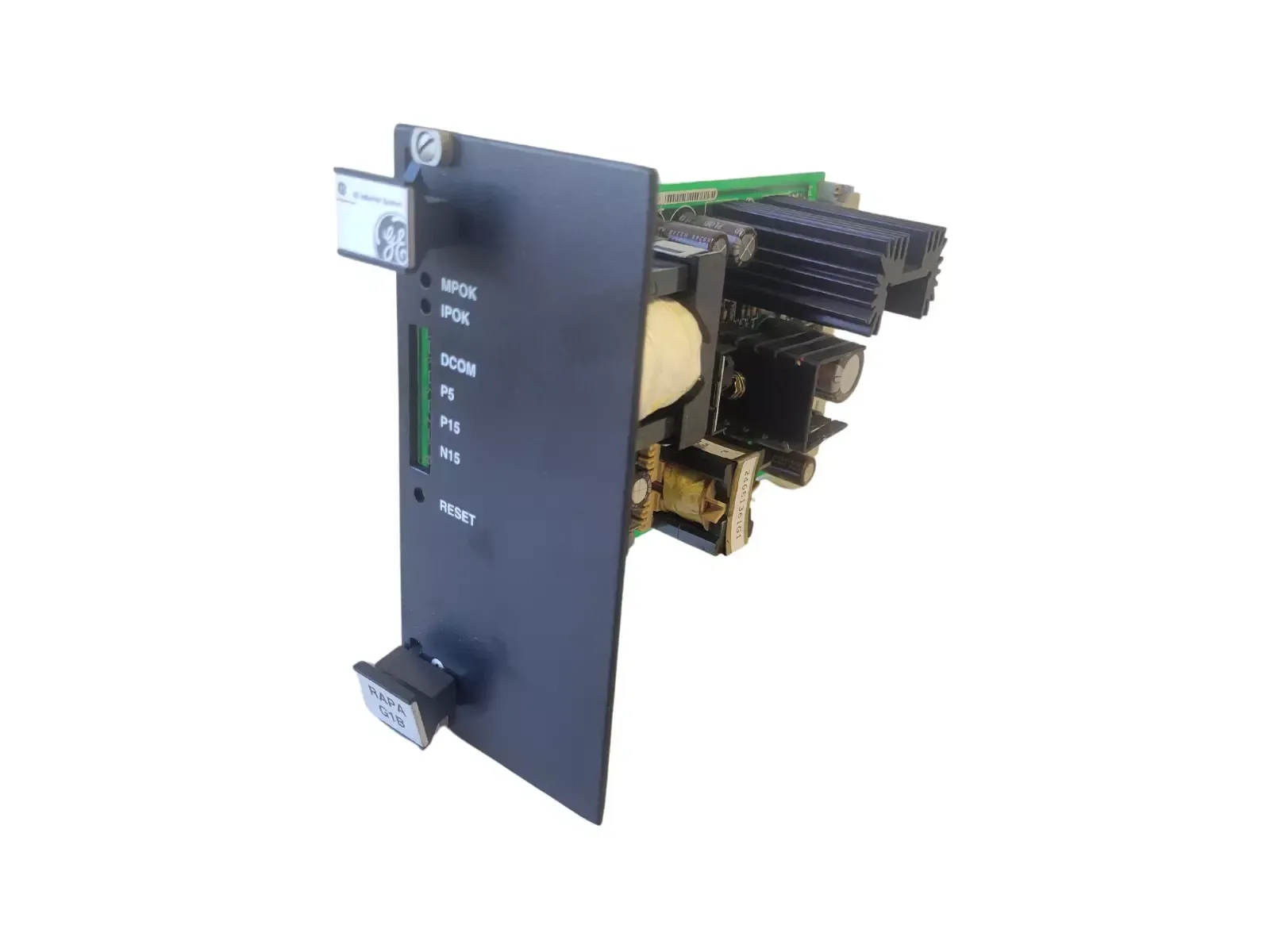

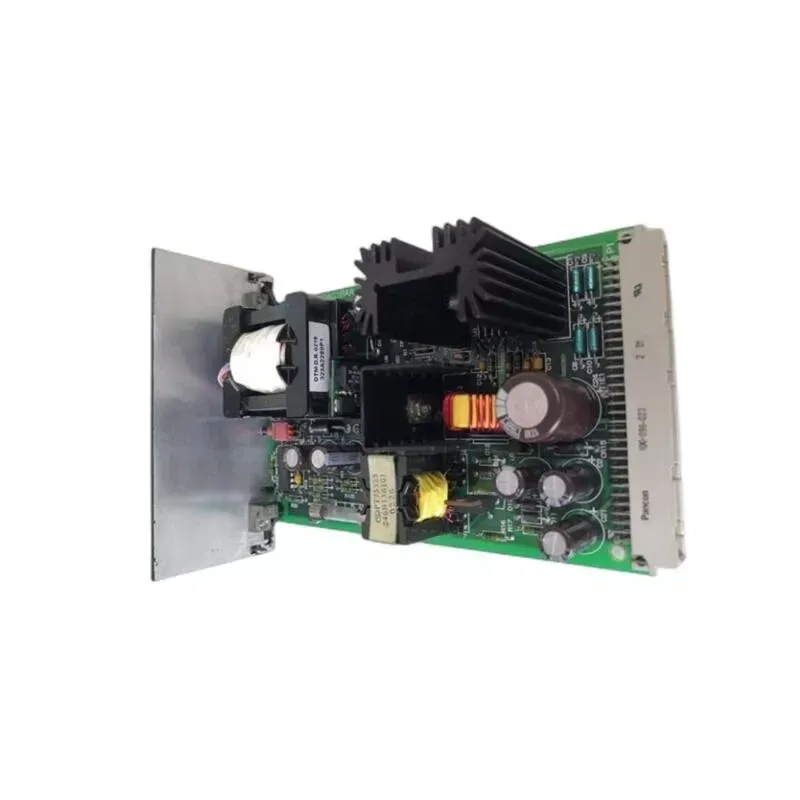

General Electric IS200RAPAG1BBA IS200RAPAG1BCA Rack Power Supply Board
Item Number: IS200RAPAG1BBA IS200RAPAG1BCA
Brand:GE
Lead Time: In stock
Description:Rack Power Supply Board
Payment: T/T
Product Description
GE IS200RAPAG1BBA and IS200RAPAG1BCA are power boards of the Mark VI series, mainly used in gas turbine control systems, supporting simple or triple redundant control configurations. It is equipped with a parallel bus main processor, has input/output and processor status indicators, provides test points for easy fault diagnosis, and has a built-in reset switch. In addition, the board is equipped with a transformer and fuse to ensure power conversion and overcurrent protection.
Fuctions & Features
- Parallel Bus Host Processor: The IS200RAPAG1B (RAPA) is a parallel bus host processor designed for the Innovation Series rack.
- Status Indicator: The IS200RAPAG1B (RAPA) front panel is equipped with two LED indicators (IPOK and MPOK) to display the input/output status and processor operating status.
- Test Points: The IS200RAPAG1B (RAPA) provides four test points (N15, P5, P15 and DCOM) for easy signal measurement and fault diagnosis.
- Reset Switch: A built-in reset switch allows users to quickly restart the board.
- Transformer and Fuse: Two transformers of different sizes and a 1A, 250V fuse are equipped to ensure power conversion and overcurrent protection.
Specification
|
Parameter |
Value |
|
Model |
IS200RAPAG1BBA / IS200RAPAG1BCA |
|
Series |
GE Mark VI |
|
Application |
Gas Turbine Control Systems |
|
Control Configuration |
Simplex or Triple Modular Redundancy (TMR) |
|
Connector |
P1 Backplane Connector (3 rows, 32 pins each) |
|
LED Indicators |
IPOK, MPOK |
|
Test Points |
N15, P5, P15, DCOM |
|
Fuse |
1A, 250V |
|
Heat Sinks |
2 |
|
Mounting Location |
Innovation Series Board Rack |
|
Bus Processor Type |
Parallel-style Bus Host Processor |
