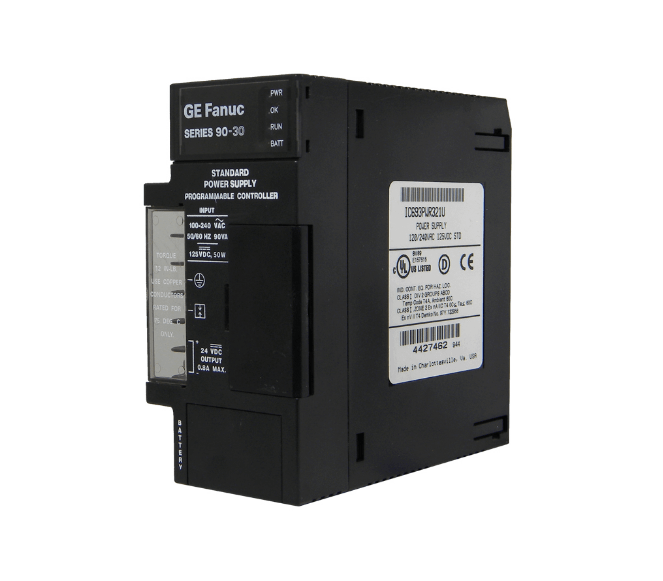

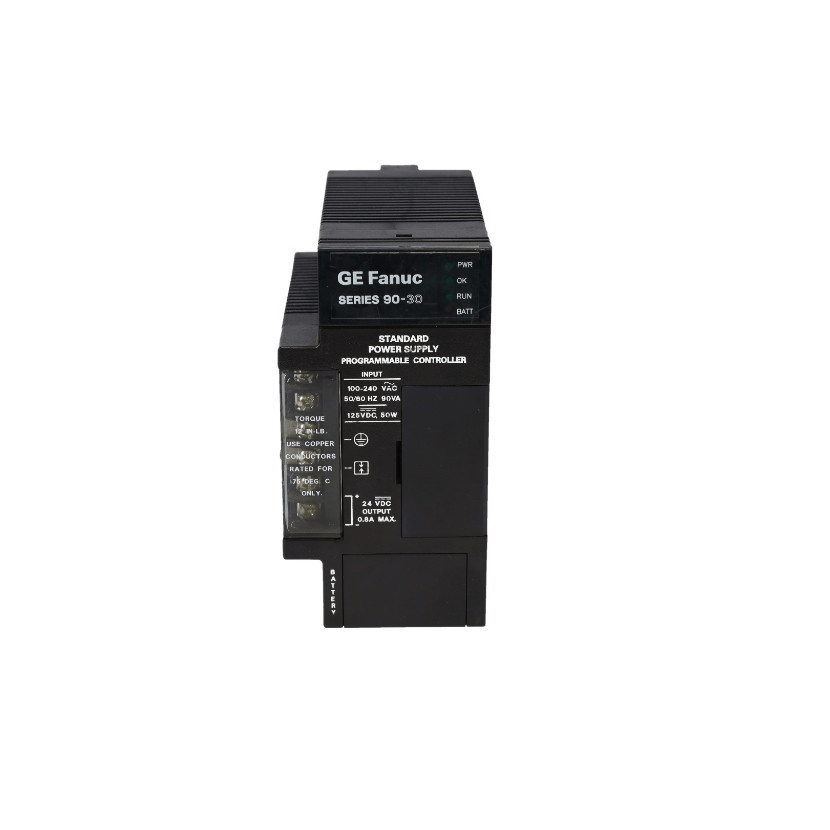

General Electric IC694PWR321 Power Supply Module
Item Number: IC694PWR321
Brand: GE
Lead Time: In stock
Description: Power Supply Module
Payment: T/T
Product Description
IC694PWR321 is a 30W power module for GE RX3i PACSystems. It provides power for related modules. It supports a wide range of input voltage (AC 85-264V or DC 100-300V) and outputs three voltages.
It also provides real-time status feedback through three green LEDs. It can be used for RX3i expansion backplane (but does not support battery backup and serial port functions)
Function & Features
Input and output:
IC694PWR321 input voltage supports 85-264V AC or 100-300V DC, and the output includes three voltages - +5V DC, + 24V DC for relay (can power the output relay module circuit), and the total power is 30 watts.
Real-time feedback status through three green LED lights:
- PWR light: lights up when power is connected and working normally, and goes out when there is a fault or no power supply;
- OK light: always lights up when the PLC is operating normally, and goes out when a problem is detected;
- RUN light: lights up when the PLC is in running mode.
Specifications
|
Item |
Details |
|
Model |
IC694PWR321 |
|
Product Name |
Power Supply, 120/240 VAC, 125 VDC |
|
Module Type |
Expansion Power Supply |
|
Backplane Support |
Remote Bases Only |
|
Power Source |
100-240 VAC or 125 VDC |
|
Output Source |
30 watts total; 15 watts 5 VDC; 15 watts 24 VDC relay; 20 watts 24 VDC isolated |
|
Cable Length to Redundant Power Supply Adapter |
N/A |
|
Redundant Power Supply Adapter Rack Compatibility |
N/A |
|
24 VDC Output Current Capacity |
0.8 A |
