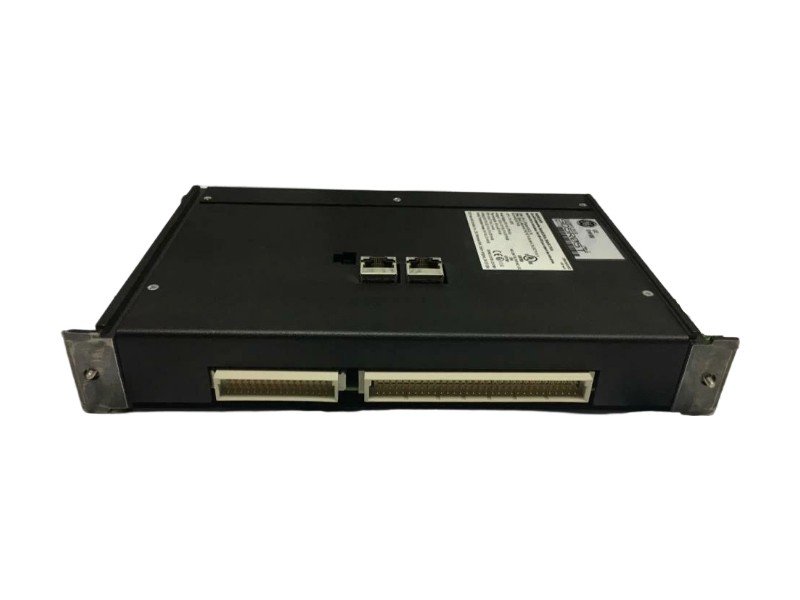

General Electric IS220PCLAH1A Core Analog I/O Module
Item Number:IS220PCLAH1A
Brand:GE（General Electric）
Lead Time: In stock
Description:Core Analog I/O Module
Payment: T/T
Product Description
GE IS220PCLAH1A is a core analog I/O module for aero-derivative gas turbines. It provides most of the analog input/output signals required for the operation of aero-derivative gas turbines. The module forms an I/O system with the SCLS terminal board (direct connection) and the expanded SCLT terminal board (connected to the SCLS).
Function & Features
- The IS220PCLAH1A supports multiple control modes and can be used in control systems including dual-controller TMR I/O, dual-controller simplex I/O, and single-controller TMR I/O.
- The SCLS is one of the core analog termination boards for the IS220PCLAH1A. Its edge connects to the inputs and outputs of field devices via 48-pin Euro-style box terminals.
- The CLT is also an analog termination board for the IS220PCLAH1A. Its edge connects to the inputs and outputs of field devices via 72-pin Euro-style box terminals. It can also connect signals to the IS220PCLAH1A fan.
Specifications
| Parameter | Details |
|---|---|
| Product Model | IS220PCLAH1A |
| Product Name | Core Analog I/O Module |
| Frame Rates | Supports 10 ms, 20 ms, 40 ms, 80 ms, 160 ms, 320 ms (Configurable) |
| Terminal Board Connections |
-SCLS:48 Euro-style terminals
-SCLT:72 Euro-style terminals |
| Module to SCLS Connection | Directly plugs into the SCLS terminal board via 96-pin (J3) and 48-pin (J4) connectors |
| Inter-Board Connection (SCLS to SCLT) | Uses a single 68-pin cable to connect SCLS (J2) to SCLT (JR/JS/JT) |
| Length*Width | 274.839*149.45mm |
| Weight | 0.74kg |
