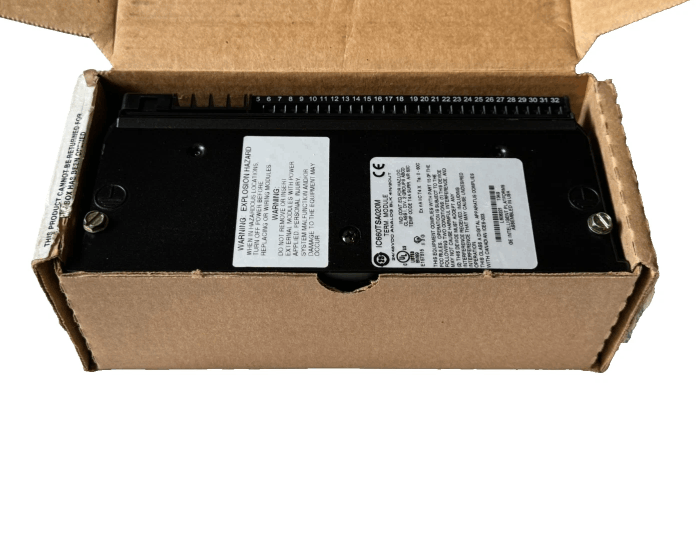

General Electric IC660BBA020 Voltage/Current Analog I/O Block
Item Number:IC660BBA020
Brand: GE
Lead Time: In stock
Description:Voltage/Current Analog I/O Block
Payment: T/T
Product Description
GE IC660BBA020 Voltage/Current Analog I/O Block is a 24/48 VDC powered 4-input/2-output analog I/O module that is part of the Genius bus compatible series. This module has four independent input circuits and two independent output circuits. Its functions are the same as the 115 VAC version (IC660BBA100), only the power supply specifications are different.
Function & Features
- Each circuit can accept or source signals in five analog ranges, including 0 to 10 VDC, -10 VDC to +10 VDC, -5 VDC to +5 VDC, 0 to 5 VDC, or 4 to 20 mA (1 to 5 VDC), and the IC660BBA020 can interface with other current loop devices through external resistors.
- The IC660BBA020 converts input and output signal levels to digital count values and converts them to engineering units relevant to the application.
- Individual inputs can be set to alarm input mode. In this mode, the analog value of the input is not sent to the human machine interface (HHM) or CPU, but the module reports if the input signal exceeds its alarm level.
Specifications
|
Parameter |
Details |
|
Model |
IC660BBA020 |
|
Thermal drift (from 25°C) |
Typical: 10 PPM per °C; Maximum: 40 PPM per °C |
|
Circuit range selections |
0–10 VDC, ±10 VDC, ±5 VDC, 0–5 VDC, 4–20 mA (or 1–5 VDC) |
|
Input Characteristics |
-Input resolution: 12 bit + sign -Input update frequency: Once every 4mS -Input filter ranges: none, 8, 16, 32, 64, 128, 256, 512, 1024mS -Input diagnostics: Underrange, Overrange, High Alarm, Low Alarm, Open Wire |
|
Output Characteristics |
-Output resolution: 12 bit + sign -Output update frequency: Once every 4mS -Output diagnostics: Underrange, Overrange -Output load: Voltage mode: 2000Ω or greater; -Current mode: 0 to 300Ω |
Notes
- Current source application: If higher load capacity is required, it is recommended to use a dedicated Current-source Analog module.
- Signal matching: The current mode needs to ensure that the load impedance meets the specifications (internal power supply ≤ 300 Ω, external power supply ≤ 2 kΩ).
