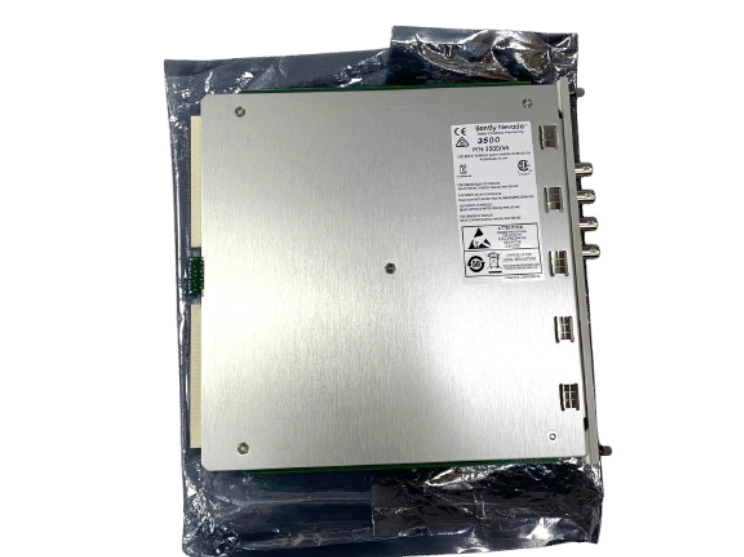

Bently Nevada 3500/44M 176449-03 Aeroderivitive GT Vibration Monitor
Item Number: 3500/44M 176449-03
Brand: Bently Nevada
Lead Time: In stock
Description:Aeroderivitive GT Vibration Monitor
Payment: T/T
Product Description
3500/44M 176449-03Aeroderivitive GT Vibration Monitor is a module in the Bently Nevada 3500 series designed specifically for aero-derivative gas turbines (such as GE LM series and Siemens SGT-A series). This module provides real-time vibration protection and status analysis of the equipment through multi-mode filtering and alarm management.
Function & Features
- Filtering Options: 3500/44M 176449-03 Configurable signal integration, 1X vibration tracking, bandpass vibration and other filtering options with the 3500 Rack Configuration Software.
- Dual Keyphase Signal Input: 3500/44M 176449-03 accepts two independent keyphaser signals, enabling each channel pair to use a different tracking filter.
- Multi-mode Channel Configuration: Multi-mode channels can be configured with up to eight sets of alarm parameters, including warning and danger setpoints and alarm delay times, and each set of parameters can be configured for a specific machine mode.
Specifications
|
Model |
3500/44M |
|
Order number |
176449-03 |
|
Accuracy |
Within ±0.33% of full - scale typical ±1% maximum Exclusive of filters |
|
Frequency Response |
Direct signal: 4 Hz to 30 kHz, - 3 dB |
|
Low - pass corner |
200 Hz (- 3 dB) |
|
Low - pass rolloff |
10 - pole 200 dB per decade 60 dB per octave |
|
High - pass corner |
25, 75 or 100 Hz (- 3 dB) |
|
High - pass rolloff |
10 - pole 200 dB per decade 60 dB per octave |
