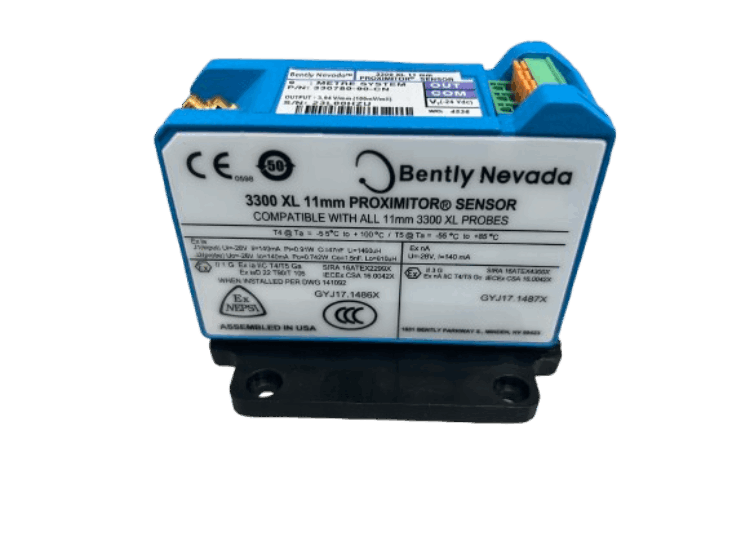

Bently Nevada 330878-90-00 Proximitor Sensor
Item Number: 330878-90-00
Brand: Bently Nevada
Lead Time: In stock
Description: Proximitor Sensor
Payment: T/T
Product Description
Bently Nevada 330878-90-00 is a 3300 XL 50mm eddy current displacement sensor (proximitor sensor), which belongs to the Bently Nevada 3300 XL series of non-contact displacement measurement sensors. It uses a magnetic field to detect the presence of a target object. It has a built-in amplifier and signal conditioner and can be directly connected to a vibration monitoring system. The sensor is used for vibration, displacement and shaft position monitoring of turbines, compressors, motors, etc.
Function & Features
- Wiring method: 330878-90-00 uses SpringLoc terminals, and wiring can be completed without special tools.
- Factory calibration default settings: By default, the 330878-90-00 sensor is calibrated for AISI 4140 steel at the factory. If required, it can also be calibrated according to other target materials.
- Equipped with optional mounting accessories: 330878-90-00 provides a sliding bracket option for single probe or complementary input applications for easy installation and commissioning. It can simulate shaft movement for system verification and gap adjustment, and is equipped with a micrometer for axial displacement calibration verification.
Specifications
|
Parameter |
Specification |
|
Model |
330878-90-00 3300 XL 50mm Proximitor Sensor |
|
-17.5 Vdc to -26 Vdc (without barriers, max 12 mA) |
|
|
-23 Vdc to -26 Vdc (with barriers) |
|
|
Warning |
Operation above -23.5 Vdc reduces linear range |
|
Output Resistance |
50 Ω |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
0.2 to 1.5 mm² (16-24 AWG) |
|
|
Recommended Cable |
3-conductor shielded triad cable |
|
Linear Range |
27.9 mm (1100 mils) |
|
Range Start Point |
1.3 mm (50 mils) from target |
|
Total Measurement Span |
1.3 to 29.2 mm (50 to 1150 mils) |
|
Output Voltage Range |
-1.5 to -12.5 Vdc |
|
Average Scale Factor (ASF) |
394 mV/mm (10 mV/mil) nominal |
FAQ
Q: What is the brand?
A:Bently Nevada
Q: What is the type?
A: 5mm Proximitor Sensor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
