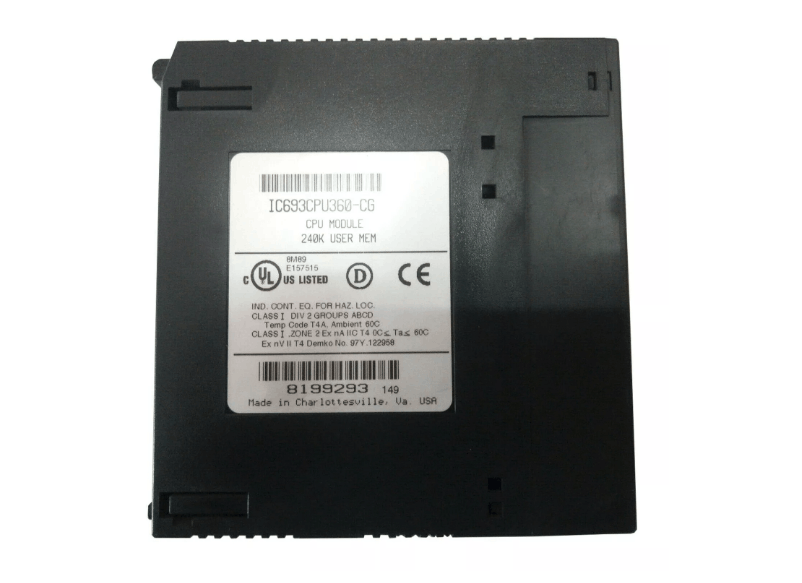

General Electric IC693CPU360 Single Slot CPU Module
Item Number: IC693CPU360
Brand: GE
Lead Time: In stock
Description: Single Slot CPU Module
Payment: T/T
Product Description
GE IC693CPU360 is a single slot PLC CPU module, belonging to GE Fanuc 90-30 series controller. Firmware version 9.0 and later, user program memory can reach up to 240KB, and supports %R, %AI, %AQ configuration, built-in serial port supports SNP/SNP-X slave protocol.
Function & Features
- 1 built-in serial port (through PLC power connector):
- IC693CPU360 supports SNP slave and SNP-X slave protocols
- IC693CPU360 requires CMM module to support SNP/SNP-X master, CCM or RTU slave protocols
- IC693CPU360 requires PCM module to support RTU master protocol
- IC693CPU360 supports a large number of registers and analog I/O points, up to 4096 I/O points.
- IC693CPU360 built-in serial port supports SNP/SNP-X slave protocol, and can be upgraded to master or support other protocols (such as RTU) through expansion modules.
Specifications
|
Category |
Parameter |
Details |
|
GE |
Model |
IC693CPU360 |
|
System Configuration |
Total Baseplates per System |
8 (CPU baseplate + 7 expansion/remote) |
|
Power Supply Load |
670 mA from +5 VDC |
|
|
Processor Speed |
25 MHz |
|
|
Processor Type |
80386EX |
|
|
Operating Temperature |
0 to 60°C (32 to 140°F) |
|
|
Typical Scan Rate |
0.22 ms per 1K logic (boolean contacts) |
|
|
Memory Capacity |
Discrete Input Points (%I) |
2,048 points |
|
Discrete Output Points (%Q) |
2,048 points |
|
|
Discrete Global Memory (%G) |
1,280 bits |
|
|
Internal Coils (%M) |
4,096 bits |
|
|
Temporary Coils (%T) |
256 bits |
|
|
System Status References (%S) |
128 bits (%S, %SA, %SB, %SC - 32 bits each) |
