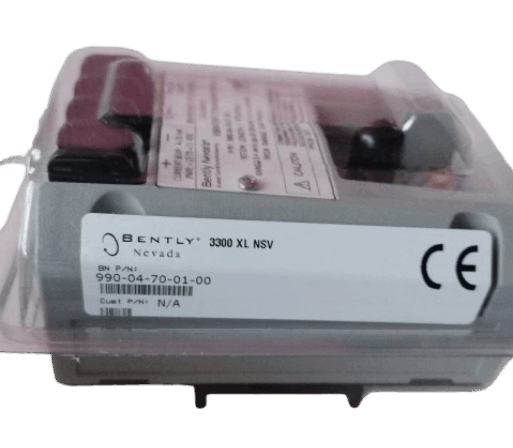

Bently Nevada 990-04-070-01-00 Vibration Transmitter
Item Number: 990-04-070-01-00
Brand: Bently Nevada
Lead Time: In stock
Description: Vibration Transmitter
Payment: T/T
Product Description
Bently Nevada 990-04-070-01-00 vibration transmitter is a vibration monitoring device designed for OEMs (original equipment manufacturers) and is primarily used for rotating machinery such as centrifugal air compressors, small pumps, motors or fans.
The transmitter is 2-wire loop powered, does not require an additional power supply, supports 5m or 7m system cable lengths, and provides engineering unit conversion for peak-to-peak vibration amplitude.
Function & Features
- The 990-04-070-01-00 has a built-in Proximitor® circuit, eliminating the need for an external preamplifier. The fully sealed potting structure is suitable for high humidity (100% condensation) environments.
- Non-isolated "PROX OUT" and "COM" terminals provide dynamic vibration and gap voltage signals.
- 990-04-070-01-00 Test Input pin (Test Input) supports quick verification of output signals using a signal generator.
- Zero and span are independently adjustable (via potentiometers).
Specification
|
Parameter |
Details |
|
Model |
990-04-070-01-00 |
|
Input |
Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable. |
|
Power |
Requires+12 to+35 Vdc input at the transmitter terminal. |
|
4 to 20 mA Signal Output |
4 to 20 mAdc over specified full-scale range in 2-wire configuration. |
|
Maximum Loop Resistance |
1,000 Ω including cable at 35 Vdc. |
|
Current Limiting |
23 mA typical. |
|
Zero and Span |
Non-interacting external adjustments. |
