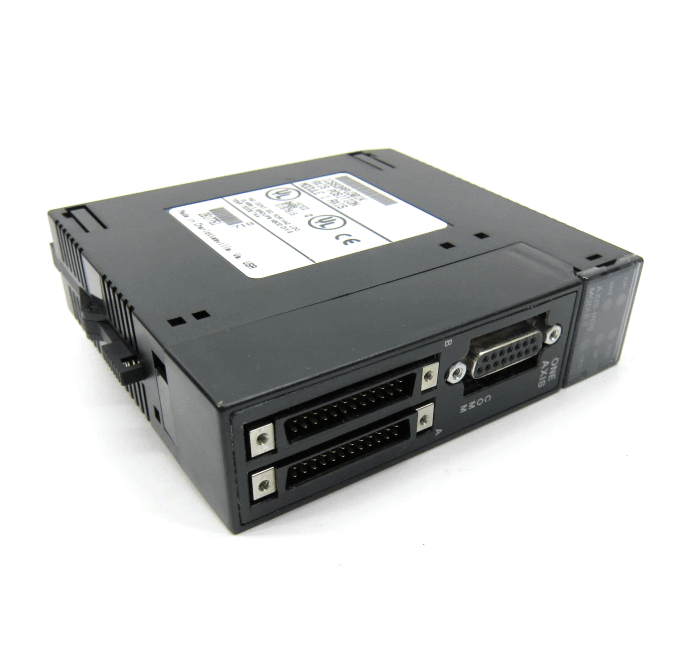

General Electric IC693APU301 Motion Mate Axis Positioning Module
Item Number:IC693APU301
Brand: GE
Lead Time: In stock
Description:Motion Mate Axis Positioning Module
Payment: T/T
Product Description
IC693APU301 is the Motion Mate Axis Positioning Module for GE Series 90-30 PLC (dual-axis model is IC693APU302). The module supports standard mode (independent motion control) and follow mode (master-slave synchronization), and can achieve complex motion trajectory planning without an additional motion controller. IC693APU301 is configured and programmed through VersaPro software (Version 1.1 or higher) or Logic Developer-PLC, and can store up to 10 motion programs. It can be used for applications such as precision positioning, electronic gears (follow mode), etc.
Function & Features
- Standard mode: IC693APU301 independently controls single-axis motion and supports precise adjustment of speed, position, and acceleration.
- Follow mode (electronic gear): IC693APU301 realizes synchronous motion of master and slave axes, and the ratio is adjustable.
- Multi-program storage: IC693APU301 can store up to 10 motion programs (written by Motion Programmer software).
- Software support: IC693APU301 configures parameters and writes motion programs through VersaPro (1.1+) or Logic Developer-PLC.
- 24-pin high-density interface: A interface single-axis servo drive connection (axis 1), B interface single-axis module is general I/O; dual-axis module is expanded to axis 2 control.
Specifications
|
Specification Category |
Details |
|
Model Numbers |
IC693APU301 (Single Axis) |
|
Compatible PLCs |
GE Series 90-30 (Embedded CPUs 311/313/323 and Modular CPUs 331+) |
|
5 VDC from backplane |
|
|
Current Consumption |
800 mA + (1.4 × Encoder Current) + (95 mA if SNP Mini-converter used) |
|
Encoder Power |
500 mA @40°C (derated to 300 mA @55°C) |
|
Max Modules per System |
• Embedded CPUs: 3 modules max • Modular CPUs: 8 modules max (max 3 per baseplate) |
Loading comments...
