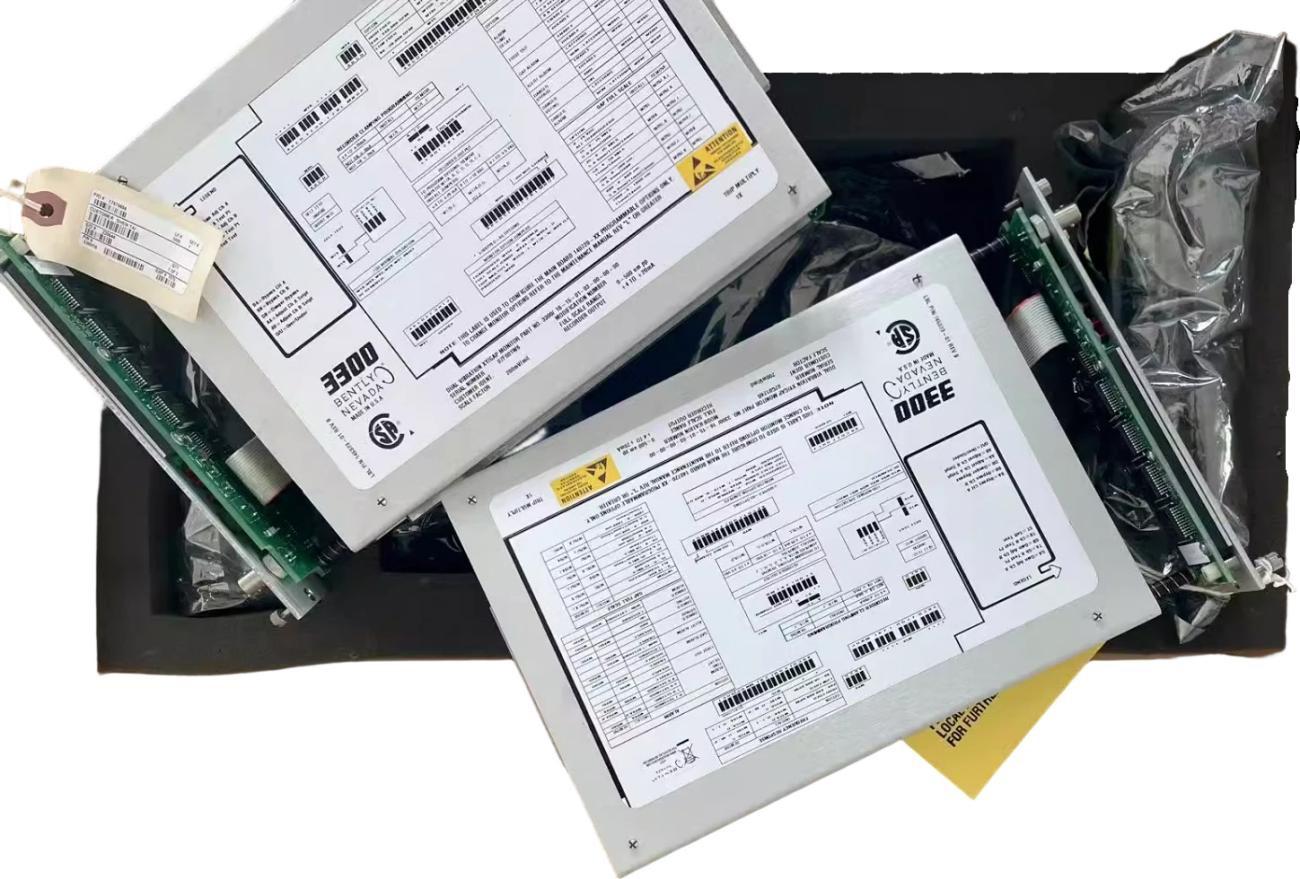

Bently Nevada 3300/16 XY/GAP Dual Vibration Monitor
Item Number:3300/16
Brand:Bently Nevada
Lead Time: in stock
Description:XY/GAP Dual Vibration Monitor
Payment: T/T
Product Description
Bently Nevada 3300/16 XY/Gap dual-channel vibration monitor is a protective device for large rotating machinery. It continuously monitors and evaluates two independent radial vibration channels as well as the average position (clearance) of the shaft. This is achieved by receiving signals from two proximity probe/probe systems.
Note: The 3300/16 is an upgrade from the earlier 3300/15 model, with the main improvement being the addition of shaft position (clearance) monitoring and alarm functionality.
Function & Features
- Dual-channel radial vibration monitoring: The 3300/16 can simultaneously monitor axial and radial vibrations in two mutually perpendicular directions (usually the X and Y directions), providing independent, processed vibration values (usually in micrometers or mils) for each channel.
- Shaft average position (clearance) monitoring: This is a key difference from the 3300/15 model. The 3300/16 monitors the static average position of the shaft by calculating the average value of the DC clearance voltage of the two probes, and can detect shaft drift, bearing wear, etc.
- Dynamic signal output: The 3300/16 provides a buffered output proportional to the original vibration signal, which can be used to connect to an oscilloscope, data acquisition unit or online condition monitoring system for analysis.
Tag: 3300/16#3300/15#XY/GAP Dual Vibration Monitor#
Specifications
| Parameter |
Details |
|
Model Number |
3300/16 |
| Related models |
3300/15 |
| Signal Inputs | Accepts one or two proximity probe signals. |
| Input Impedance | 10 kΩ |
| Power Consumption | 2 watts (nominal) |
| Gap Alarm Time Delay | 6 seconds. |
| Resolution | Within ±1.6% of monitor full-scale. |
| Size (vertical dimension) | 83 mm (3.25 in) |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
