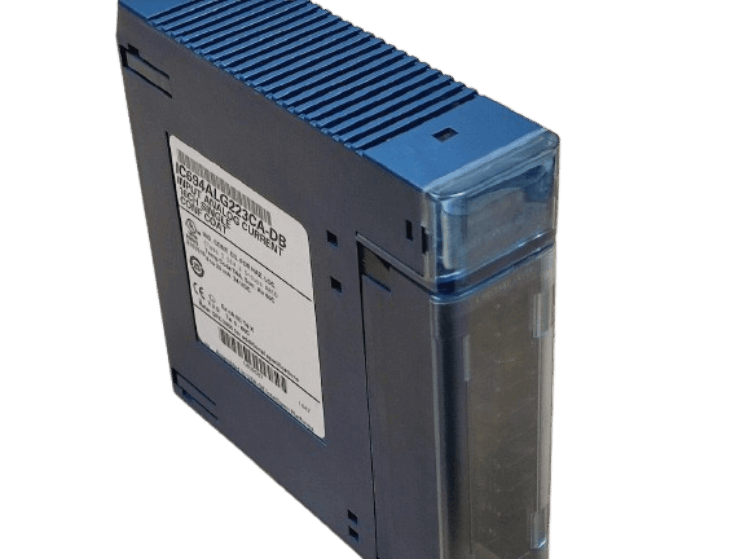

General Electric IC694ALG223 Analog Input Module
Item Number: IC694ALG223
Brand: GE
Lead Time: In stock
Description: Analog Input Module
Payment: T/T
Product Description
GE IC694ALG223 is a 16-channel analog current input module for the RX3i system, providing 16 single-ended input channels. Each channel can be configured with three input ranges via software. The IC694ALG223 can be installed in any I/O slot in the RX3i system and provides module status and external power supply status to the CPU via a specified program reference address.
Function & Features
- All input ranges of the IC694ALG223 support high and low alarm limits. In the 4-20 mA Enhanced mode, the low alarm limit can be set to detect input currents between 4 mA and 0 mA.
- The IC694ALG223 can be installed in any I/O slot in the RX3i system.
- The IC694ALG223 draws 120 mA from the 5 VDC bus on the PLC backplane and requires a user-supplied power supply, consuming 65 mA plus the current loop current.
- The IC694ALG223 input range is selected in PAC Machine Edition software (Enhanced mode must be actively enabled).
Specifications
|
Parameter |
Details |
|
Part Number |
IC694ALG223 |
|
Analog Input Count & Type |
16 Channel; 4-20mA; 0-20mA |
|
Resolution & Speed |
12 Bit; 13mS |
|
Current Consumption |
120mA @ 5VDC; 65mA User Supplied 24VDC |
|
Agency |
UL, UL HAZLOC |
|
Approvals |
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR |
Loading comments...
