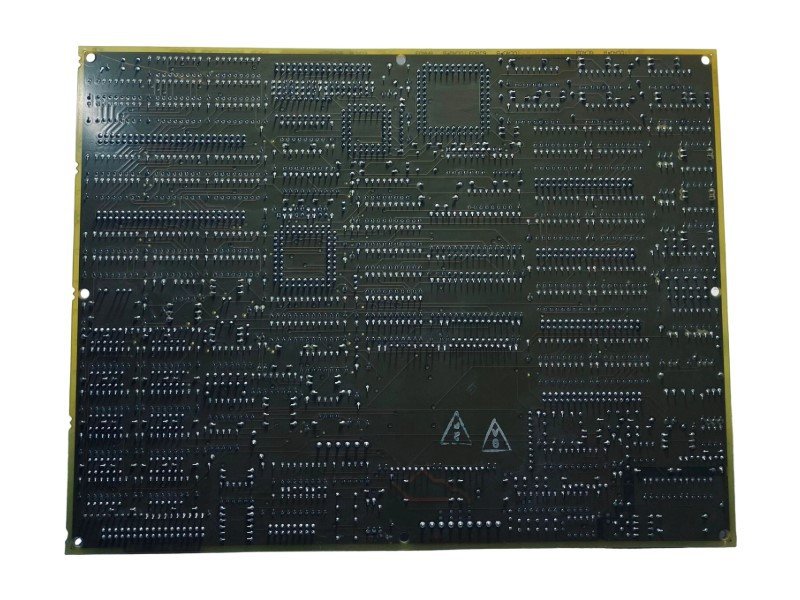

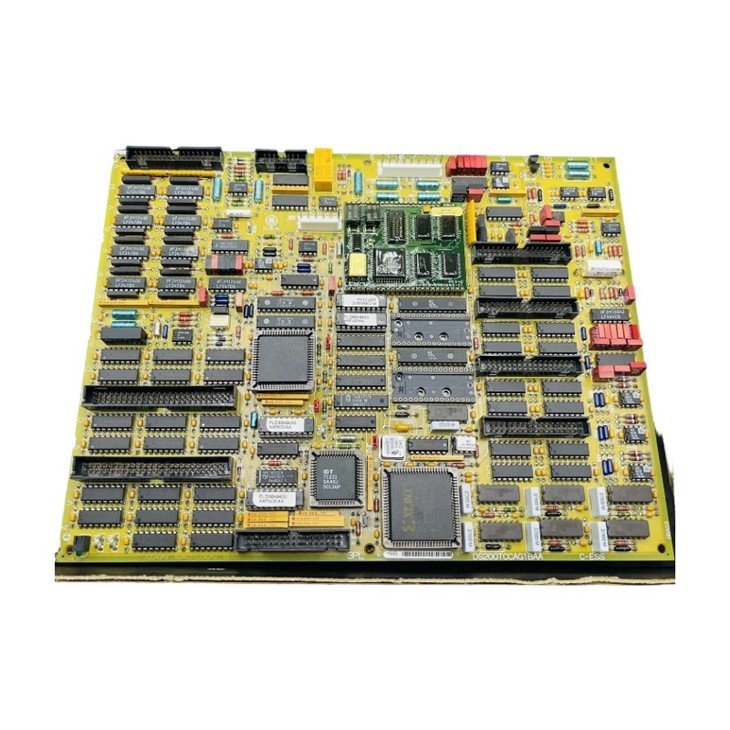

General Electric DS200TCCAG1B Common Analog I/O Board
Item Number: DS200TCCAG1B
Brand:GE（General Electric）
Lead Time: In stock
Description:Common Analog I/O Board
Payment: T/T
Product Description
GE DS200TCCAG1B is a general-purpose analog input/output board, a component of the Mark V system R5 control core, used to connect various analog devices to the central processing unit. This board acquires, conditions, and converts various types of analog signals, providing the data to the control system's I/O engine (typically located on the STCA board).
Function & Features
- The DS200TCCAG1B is equipped with an 80196 microprocessor, which collects analog input signals from various sensors and transmitters in the turbine system and converts these analog signals into digital format for processing by the TCS.
- The DS200TCCAG1B allows for basic hardware configuration via jumpers J1, JP2, and JP3, such as enabling or disabling the RS232 port.
- The DS200TCCAG1B features JCC and JDD connectors, as well as multiple connectors for connecting to different terminal blocks, such as JAA, JBB, and JAR/S/T.
Specifications
| Parameter | Description |
|---|---|
| Model | GE DS200TCCAG1B |
| Location | Mark V Control Rack R5 Core Slot |
| Terminal Board | CTBA |
| Jumper Settings |
-J1: Enable/Disable RS-232 Serial Port -JP2: Turn off Oscillator in Test Mode -JP3: Reserved for Factory Testing (Usually No Need for User to Change) |
| Weight | 0.46kg |
FAQ
Q: How to configure the type of a thermocouple channel on the DS200TCCAG1B?
A:This is done through the I/O configuration editor in the HMI. In the corresponding channel, select the thermocouple type, and the system will automatically apply the corresponding conversion curve and parameters.
Q: What is the function of the JP2 jumper? Can ordinary users use it?
A:JP2 is used to shut down the oscillator during card testing. This is a function intended for factory testing or advanced maintenance. Ordinary users and field maintenance personnel should not operate this jumper, as doing so may cause malfunctions in the board.
Q: Which connector is used to read the RTD signal?
A: The RTD signal is read from the TBCA terminal board via the JCC and JDD connectors.
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
