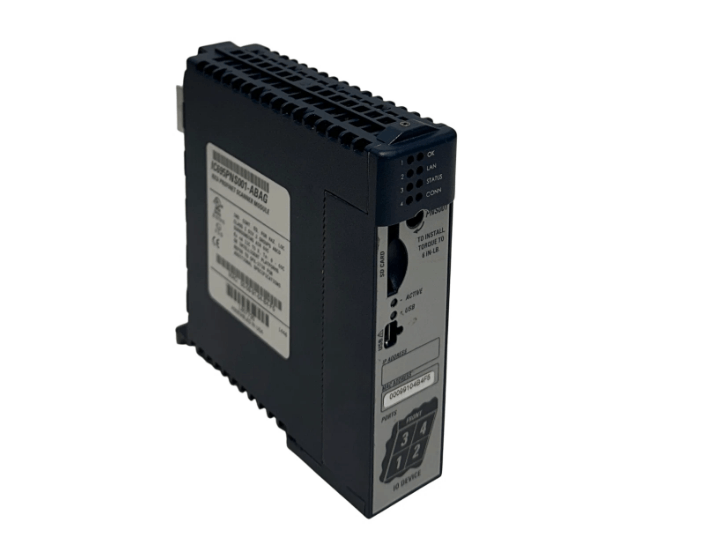

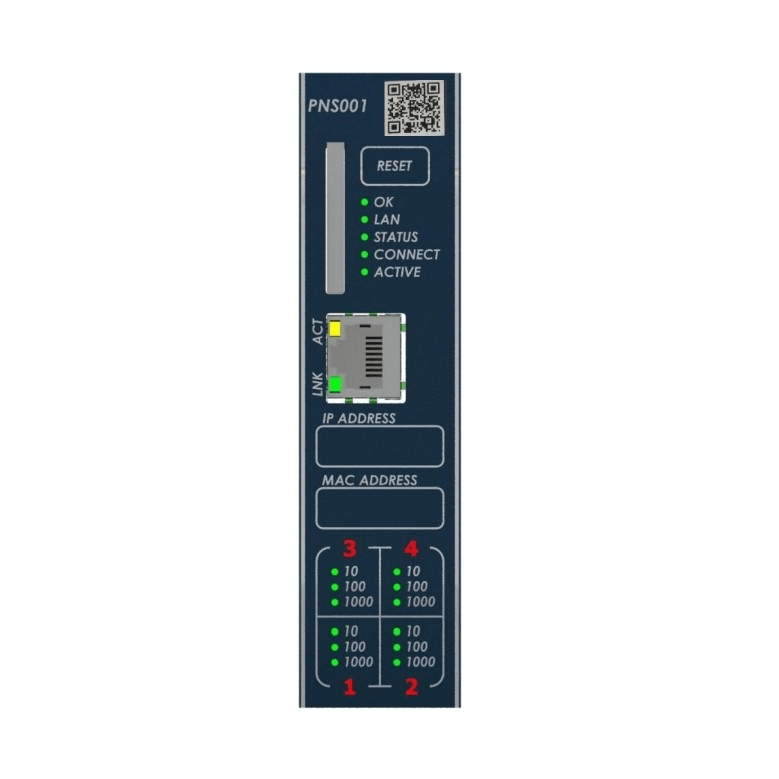

General Electric IC695PNS001 PROFINET Scanner
Product Description
The GE IC695PNS001 is a PACSystems RX3i PROFINET scanner module that connects a remote RX3i or Series 90-30 I/O rack to a PROFINET I/O controller. It is responsible for scanning the modules in the rack, acquiring input data, providing output data, and exchanging data on the PROFINET I/O LAN at the configured production rate. The module supports 10/100/1000 Mbps copper cable and 100/1000 Mbps multimode/singlemode fiber.
Note:Its advanced version, IC695PNS101, adds Sequence of Events (SOE) function based on PNS001 and supports IRIG-B time synchronization (accuracy 1ms).
Function & Features
- PROFINET I/O Scanning: IC695PNS001 scans remote I/O racks, exchanges input/output data, and supports data transfer between PROFINET controllers (such as PLCs, DCSs) and remote I/Os.
- 4 Switched Ethernet Ports: 2×RJ-45 Copper Interfaces (10/100/1000 Mbps, Shielded Twisted Pair). 2×SFP Fiber Slots (supports user-selected 100/1000 Mbps Multimode/Singlemode SFP modules).
- Proficy Machine Edition (PME) Configuration: IC695PNS001 configures all supported 90-30/RX3i I/O modules through PME software.
- Module Replacement: IC695PNS001 supports transfer of device names via SD card, eliminating the need to reconfigure tools.
Specifications
|
Category |
Parameter |
Details |
| Model | RX3i | IC695PNS001 |
|
Memory & Configuration |
SD Card Support |
SD and SDHC cards |
|
Status/Control Bits |
32 input status bits + 32 output control bits |
|
|
PROFINET Performance |
I/O Update Rate (Configurable) |
1ms, 2ms, 4ms, 8ms, 16ms, 32ms, 64ms, 128ms, 256ms, 512ms |
|
PROFINET Support |
PROFINET V2.3 Class A I/O Device |
|
|
Redundancy Standard |
PROFINET V2.3 Type S-2 System Redundancy |
|
|
System Limits |
Maximum I/O Modules per Station |
(Not specified in source) |
|
Maximum I/O Data per Station |
(Not specified in source) |
|
|
Software Requirements |
Proficy Machine Edition Version |
8.50 SIM 2 or later (for both PNS001 & PNS101) |
