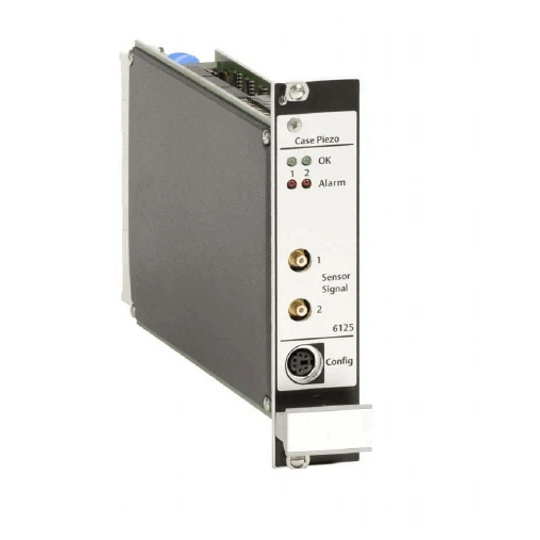

Emerson A6125 Case Piezoelectric Vibration Monitor
Item Number: A6125
Brand:Emerson
Lead Time: In stock
Description: Case Piezoelectric Vibration Monitor
Payment: T/T
Product Description
Emerson A6125 Case Piezoelectric Vibration Monitor is part of the CSI 6500 Machinery Health Monitoring System and is designed to monitor bearing housing vibrations using accelerometers or velocity sensors.
It is a single slot monitor that can be used with other CSI 6500 monitors to form a machinery protection monitor that complies with API 670 standards.
Function & Features
- Housing vibration monitoring: A6125 uses a piezoelectric accelerometer or velocity sensor to measure housing vibration (unit: acceleration g or velocity mm/sec/in/sec).
- Alarm and protection: A6125 can compare vibration parameters with preset alarm thresholds, trigger relay outputs, and support remote limit adjustment and trip bypass functions.
- Upgrade: A6125 is a new generation of piezoelectric sensor design, gradually replacing traditional seismic sensors. It is recommended to use it when the sensor and monitoring system are upgraded simultaneously.
Specifications
|
Parameter |
Details |
|
Model |
A6125 |
|
Number of Inputs |
Two, independent, differential inputs |
|
Type of Inputs |
Piezoelectric (accelerometer or velometer) |
|
Input Resistance |
>100 kΩ |
|
Input Voltage Range |
-5 to +15 VDC |
|
Signal Input Voltage Range |
6125/00: 311 - 9500 mV peak to peak |
|
Signal Input Voltage Range |
6125/10: 16 - 450 mV peak to peak (special high temperature sensor) |
FAQ
Q: What is the brand?
A: Emerson
Q: What is the type?
A:Case Piezoelectric Vibration Monitor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
